Tagra | Signage LED Strip Light | Side View | 120 LEDs p/m | 24V | IP20 | 9.6Wp/m | 5M Reel
SG24-SV5M
From £72.00 Inc. VAT
Key Features
- Up to 1148 Lumens Per Metre
- IP20

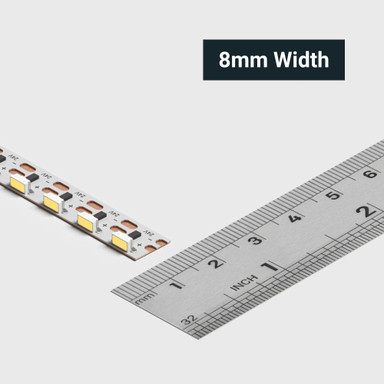

- 8mm Width
- 7 Year Warranty
- 8.33mm Cut Points
- Available in 6500K
- Side-View
- 1 BIN Guarantee
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 9.6W/m

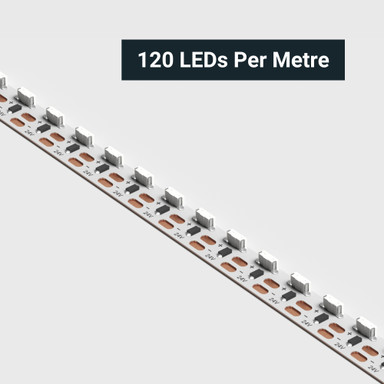

- LEDs per metre: 120 LEDs
- Cut Points: 8.33mm
- CRI: >80
- Beam Angle: 120°
- SDCM: <5
- PCB Weight: 3oz
- Lumens: Up to 1148lm/m
- Warranty: 7 Years
- 1BIN Guarantee
Information:

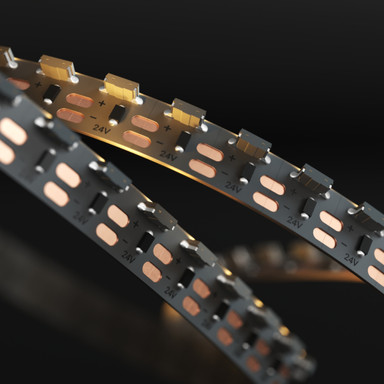

Offering a unique side-view design, this product produces a projection of light at one side of the LED strip. Refered to a side-view, its ideal for more intricate installation where there is not much room for the LED strip light. Requiring a 24V input and with 120 LEDs per metre its capable of producing a non-spotting appearance in deep profiles. It produces a 120° beam angle and up to 1148lm per metre making it an ideal solution for furniture, accent lighting and signage.
Part of the Professional Signage range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.
This product benefits from our 1-BIN guarantee. This guarantee provides reassurance that all the LED chips have come from the same manufacturing bin, ensuring no colour variation across batches.

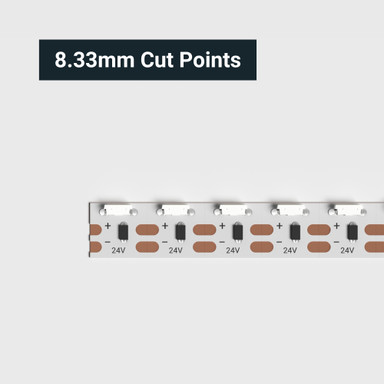

Available in a range of white light colours including 6500K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 8.33mm intervals.

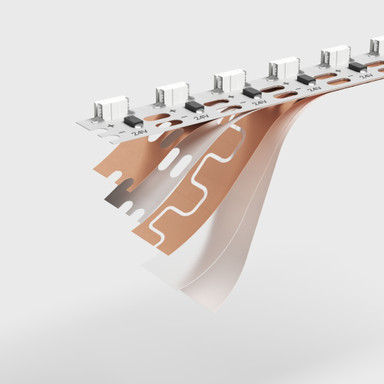

Our Professional Signage LED Strip Light is manufactured using high quality materials and components. Featuring a 4020 LED chip, it produces around 120lm per watt which is considerably more than the standard 3014 chip used on side-view strip lights. This product is a flexible solution to a wide range of installations and offers a bright output, small cut intervals and a unique side-view design.
Installation:

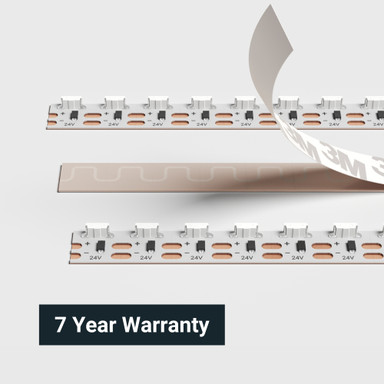

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.
We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
Product Specification
Warranty (Years) | 7 |
Dimmable | Yes |
Energy Efficiency Class | F |
Max. Run Length (m) | 5 |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | INTERIOR |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 24-24V |
Cable Length (m) | 500 |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 8.33 |
LEDs Per Metre (LEDs/m) | 120 |
Product Height (mm) | 3 |
Depth (mm) | 5000 |
Width (mm) | 8 |
End Caps Included | No |
Fixings Included | No |
Beam Angle (°) | 120 |
CRI | 80 |
SDCM | 5 |
Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
Dimensions LxWxH (mm) | 5000x8x3 |
Brand | Tagra |
Body Colour | White |
Family Name | Signage |
Bend Direction | Vertical |
Bin Number | 1 |
Cable Length (mm) | 500 |
