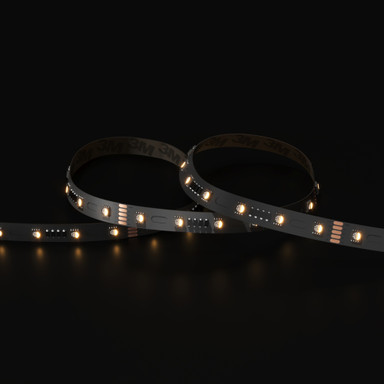

Tagra | Signage LED Strip Light | Bendable | 48 LEDs p/m | 24V | IP20 | 12.6Wp/m | RGB+W | 5M Reel
SG24-MBRGBW5M
From £66.00 Inc. VAT
Key Features
- Up to 700 Lumens Per Metre
- IP20
- 12mm Width
- 7 Year Warranty
- 125mm Cut Points
- Available in RGB+6500K
- Angled Bending
- 1 BIN Guarantee
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 12.6W/m
- LEDs per metre: 48 LEDs
- Cut Points: 125mm
- CRI: >80
- Beam Angle: 120°
- SDCM: <3
- PCB Weight: 2oz
- Lumens: Up to 700lm/m
- Warranty: 7 Years
- 1BIN Guarantee
Information:

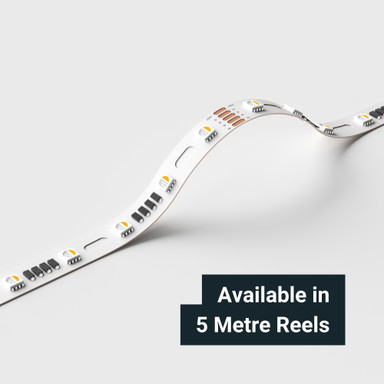

Perfect for lettering and large signage displays, our bendable RGB+W 24V LED strip light can be manipulated to fit into large lettering and lightboxes. This product has a unique offering combining RGB+W light with the bendable function. Consisting of 48 RGBW LEDs per metre allows for room along the strip light to bend in multiple directions. Described as module shape, this LED strip light can be bent in both left and right directions to help you apply to your installation. It produces a 120° beam angle and up to 700lm per metre making it an ideal solution for large signage and lettering.
Part of the Professional Signage range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.
This product benefits from our 1-BIN guarantee. This guarantee provides reassurance that all the LED chips have come from the same manufacturing bin, ensuring no colour variation across batches.
Available in RGB+6500K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 125mm intervals.

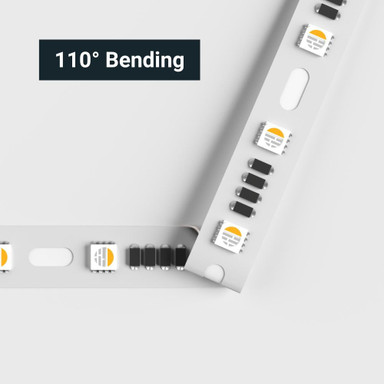

Our Professional Signage LED Strip Light is manufactured using high quality materials and components. This product features slot shaped cut outs in the PCB that allow you to manipulate the strip light in different directions. Its ideal for signage installations and offers a bright and flexible solution.
Installation:

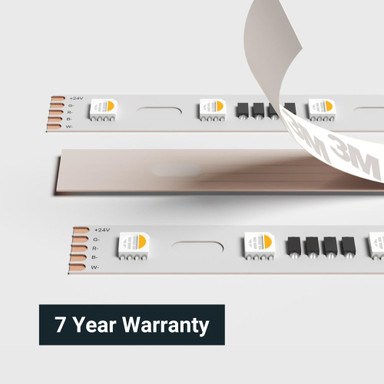

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.
We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
- 24V LED Controller
Videos
Product Specification
Colour | RGB+6500K |
Voltage | 24V |
Amps per Metre | 0.52 Amps p/m |
Watts Per Metre | 12.6 Watts p/m |
Cut Points | 125mm |
CRI | 80 |
SDCM | 3 |
Lumens Per Metre | Up to 700lm/m |

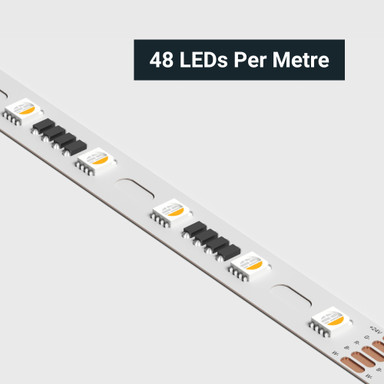

LEDs Per Metre | 48 |

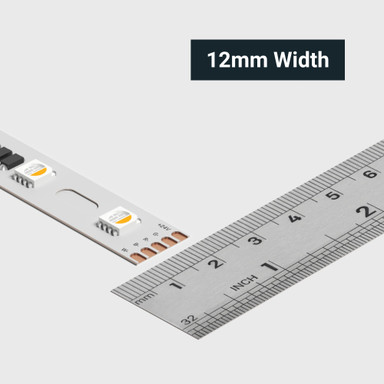

Tape Width | 12mm |
Water Resistance | IP20 |
Min Operating Temperature | -25°C |
Max. Operating Temperature | 40°C |
Energy Rating | - |
Warranty | 7 Years |
Warranty (Years) | 7 |
Dimmable | Yes |
Energy Efficiency Class | - |
Max. Run Length (m) | 5 |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | INTERIOR |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 24-24V |
Cable Length (m) | 500 |
Copper Foil Weight (oz) | 2 |
Cut Points (mm) | 125 |
LEDs Per Metre (LEDs/m) | 48 |
Product Height (mm) | 2 |
Depth (mm) | 5000 |
Width (mm) | 12 |
Beam Angle (°) | 120 |
Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |

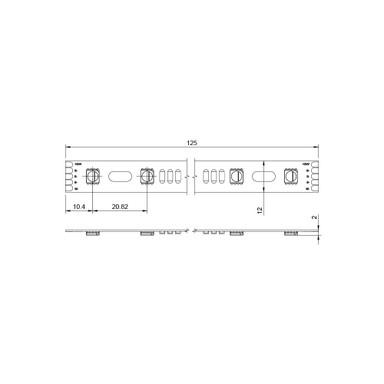

Dimensions LxWxH (mm) | 5000x12x2 |
Brand | Tagra |
Body Colour | White |
Family Name | Signage |
Bend Direction | Vertical |
Bin Number | 1 |
Cable Length (mm) | 500 |
