Tagra | Low Voltage LED Cable | 4 Core | 5A | Silicone | Round | 20AWG | 0.5mm²

SILCBL-4C

From £30.00 Inc. VAT

Key Features

Current (max rated): 5 A
Input cross-section of conductors for terminals: 0.5 mm²
Input voltage (Min/Max): 12V–300V
Body colour: Black; White
Cable shape: Round
Cable sheath material: Silicone
Cable conductor material: Copper
Cable length: 10 m; 50 m; 100 m
Warranty: 3 Years

DATA SHEET - SILCBL-4CPDF Download

SILCBL-4C-10M-B Declaration Of ConformityDeclaration of Conformity

Select Length

Select...

Select Colour

Select...

Select Colour Temperature

Select...

Total

£30.00 Inc. VAT

Pay by card, American Express, PayPal, Apple Pay or Google Pay

Delivery & Returns

Free UK DeliveryOrders over £75
Next Day DeliveryFrom £8.95
Returns14 Day Policy

Product Overview

Product Specification

Technical Documents

Customer Reviews

Product Overview

Technical Specifications:

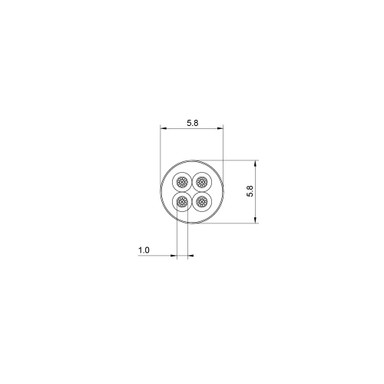

Cores manufactured: 4x (21/0.18mm) Silicone insulated conductors
Conductor Cross Section: 0.5mm²
Current Rating: 5.0A per core
Operating Temperature Range: -60°C to +200°C
Flame Retardant: FT-2 standard
Minimum Bend Radius: 30mm
Voltage Rating: 300V maximum
Cable Gauge: 20 AWG
Cable End: Tinned Copper
Shape: Round cable for easy installation and bundling
Lengths Available: Sold in 10m, 50m, and 100m lengths

This 4-core, high-quality silicone-insulated cable has been designed for use with RGB LED lighting systems and other low-voltage applications. Its excellent flexibility, high-temperature resistance, and flame retardancy make it suitable for use in a variety of challenging environments. The cable's tinned copper strands ensure durability and easy soldering, making it a versatile and reliable choice for professional-grade electrical installations.

Product Specification

Warranty (Years)	3
Voltage Max. Rated (V)	300
Width (mm)	5
Items/Sets Per Pack	1
Brand	Tagra
Family Name	Low Voltage Cable
Ingress Protection (IP)	20
Body Material	Silicone
