Tagra | Low Voltage LED Cable | 5 Core | 3A | Silicone | Round | 22AWG | 0.35mm²
SILCBL-5C
From £42.00 Inc. VAT
Key Features
- Current (max rated): 3A; 7A
- Input cross-section of conductors for terminals: 0.35mm²
- Input voltage (Min/Max): 12V–300V
- Body colour: White; Black
- Cable shape: ROUND
- Cable conductor material: Copper
- Cable length: 10m; 50m; 100m
- Warranty: 3 Years; 3.0 Years
DATA SHEET - SILCBL-5CPDF Download
SILCBL-5C-50M-W Declaration Of ConformityDeclaration of Conformity
Select...
Select...
Total
£42.00 Inc. VAT
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Cores manufactured: 5x (13/0.18mm) Silicone insulated conductors
- Conductor Cross Section: 0.35mm²
- Current Rating: 3.0A per core
- Operating Temperature Range: -60°C to +200°C
- Flame Retardant: FT-2 standard
- Minimum Bend Radius: 30mm
- Voltage Rating: 300V maximum
- Cable Gauge: 22 AWG
- Cable End: Tinned Copper

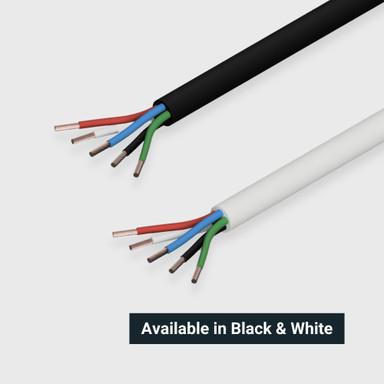

- Cable Sheath: High-grade Silicone, available in Black or White

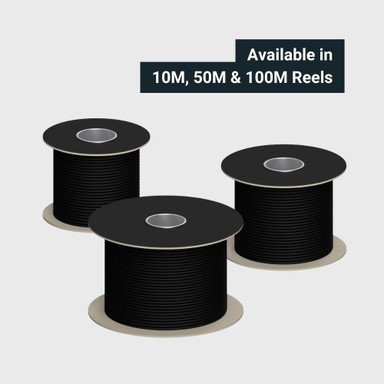

- Lengths Available: Sold in 10m, 50m, and 100m lengths
This 5-core silicone-insulated cable is ideal for RGBW LED lighting systems and other low-voltage applications. With excellent flexibility and heat resistance, it can be used in various environments. The flame retardant and durable design make it a reliable choice for both professional and home installations, ensuring easy manipulation and safety during usage.
Product Specification
Warranty (Years) | 3 |
Voltage Max. Rated (V) | 300 |
Width (mm) | 5 |
Items/Sets Per Pack | 1 |
Brand | Tagra |
Family Name | Low Voltage Cable |
Ingress Protection (IP) | 20 |
Body Material | Silicone |
