Tagra | Architectural LED Neon Flex | Horizontal 16 | 16x17mm | RGB | 24V | IP68 | 12Wp/m | Custom
NEON-ARC-HB-1617-12W-RGB
Key Features
- Product Dimensions (mm): W16xH17
- Bend direction: Horizontal
- Lm/m (up to): 345 Lm/m
- Lm/W (up to): 29 Lm/W
- Run length (max): 10 m
- Available Colours: RGB
- Warranty: 5 Years
Product Overview

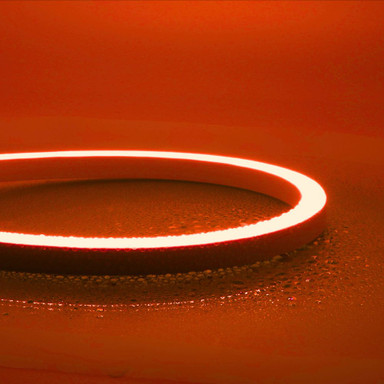

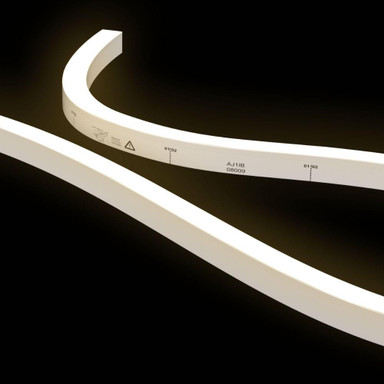

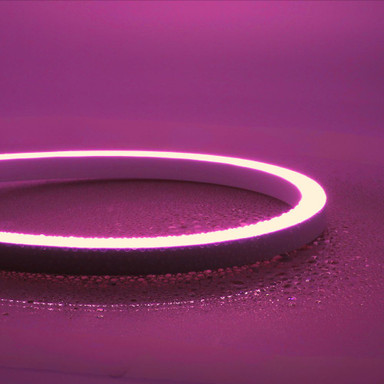

Introducing Our 16x17 Horizontal Bend LED Neon Flex – 24V | RGB | Architectural Range
The 16x17 Horizontal Bend RGB LED Neon Flex is a versatile, colour-changing solution for architectural lighting applications requiring horizontal flexibility. Whether used for façade highlights, signage, or feature lighting, this robust and vibrant LED strip delivers smooth RGB transitions in a sleek, outdoor-ready profile.
Equipped with 5050 RGB chips and 84 LEDs per metre, it offers balanced red (620–625nm), green (520–525nm), and blue (465–470nm) output, delivering a total of up to 345 lumens per metre. The product’s construction includes a UV-resistant silicone body and a durable IP68-rated silicone injection-moulded connector for maximum resilience in external environments.
With a bend-friendly 16x17mm form factor and 83.3mm cut points, this flex is engineered for seamless horizontal integration into curved or straight architectural elements.
Key Features
- Horizontal bend configuration
- IP68-rated silicone injection-moulded connector
- Dimensions: 16mm x 17mm
- RGB output (620–625nm red, 520–525nm green, 465–470nm blue)
- Total lumen output: up to 345lm/m
- Beam angle: 110°
- SDCM <3 for colour consistency
- Operating temperature: -40°C to +55°C
- Supplied by the metre with 83.3mm cut points
- UV, flame, salt water, and solvent-resistant
- 5-year warranty
- Dimmable
Specifications
- Voltage: 24V DC
- Power Consumption: 12W/m
- LED Density: 84 LEDs per metre
- Beam Angle: 110°
- CRI: N/A
- Bend Direction: Horizontal
- Min. Bend Diameter: 300mm
- Max. Run Length: 10m (single-end) / 20m (double-end)
- IP Rating: IP68
- IK Rating: IK10
- Material: Silicone
- Operating Temperature: -40°C to +55°C
- Warranty: 5 Years
Installation & Bespoke Options
Supplied by the metre with 83.3mm cut increments, this Neon Flex allows for bespoke installation, including custom cable length and direction. Compatible mounting accessories recommended.
Required Products
- A 24V LED driver is required
Product Specification
| Warranty (Years) | 5 |
| Control Signal - Input | PWM |
| Dimmable | Yes |
| Dimming Type | PWM |
| Max. Run Length (m) | 10 |
| Max. Wattage @ Max. Run Length (W) | 120 |
| Anti-Yellowing | Yes |
| Application Environment | Exterior |
| Body Material | Silicone |
| Ingress Protection (IP) | 68 |
| Interior or Exterior Use | Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| UV Resistant | Yes |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Chip Type | SMD5050 |
| Connector Type | Optional |
| Copper Foil Weight (oz) | 8 |
| Cut Points (mm) | 83.33 |
| LED Module Replaceable | No |
| LED Pitch (mm) | 83.3 |
| LEDs Per Metre (LEDs/m) | 84 |
| Min. Bend Radius (mm) | 150 |
| PCB Type | Flexible |
| Product Height (mm) | 17 |
| Width (mm) | 16 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 110 |
| CRI | 80 |
| Lumens Per Metre (Lm/m) | 345 |
| Lumens Per Watt (Lm/W) | 29 |
| SDCM | 3 |
| Wavelength Blue Max. (nm) | 474 |
| Wavelength Blue Min. (nm) | 468 |
| Wavelength Green Max. (nm) | 530 |
| Wavelength Green Min. (nm) | 522 |
| Wavelength Red Max. (nm) | 624 |
| Wavelength Red Min. (nm) | 618 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -40℃ to 55℃ |
| Dimensions LxWxH (mm) | 1000x16x17 |
| Brand | Tagra |
| Family Name | Architectural Series |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | Silicone |
| Entry Cable Direction | Rear, Side, Bottom |
