Tagra | Architectural LED Neon Flex | Vertical 10 | 10x10mm | 24V | IP67 | 4.5Wp/m | Custom

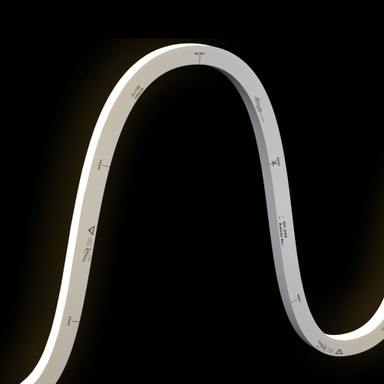

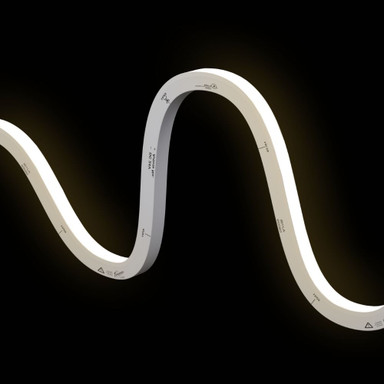

Introducing Our 10x10 Vertical Bend LED Neon Flex – 24V | Architectural Range

The 10x10 Vertical Bend LED Neon Flex is a high-performance lighting solution designed for indoor and semi-outdoor applications such as landscape, retail, and marine or yacht installations. Engineered for reliable vertical bending, it delivers consistent illumination with a slim, durable profile.

Built with advanced 8oz copper belt technology and an integrated FPCB, this Neon Flex enhances current-carrying performance, reduces voltage drop, and supports long-term structural integrity through reinforced design. The UV-resistant silicone body offers self-cleaning and anti-static properties to minimise dirt accumulation and maintain surface clarity.

Its robust construction ensures operation in harsh environments with a temperature range from -40°C to +55°C and resistance to solvents, salt water, UV, and flame. Available in 4.5W/m variants and sold by the metre with bespoke options for cable direction and length, the product features an IP67-rated silicone injection-moulded connector for added protection.

Key Features

• Vertical bend configuration
• IP67-rated silicone injection-moulded connector
• Dimensions: 10mm x 10mm
• CRI >90 for excellent colour rendering
• Lumen output up to 489lm/m (varies by CCT and wattage)
• SDCM <3 for high colour consistency
• Operating temperature: -40°C to +55°C
• Supplied by the metre with 100mm cut points
• UV, flame, salt water, and solvent-resistant
• 5-year warranty for dependable performance
• Sold by the metre for tailored installation
• Available in 4.5W/m variant
• Dimming compatibility with DALI, 0–10V, and DMX/RDM

Specifications

• Voltage: 24V DC
• Power Consumption: 4.5W/m
• LED Density: 60 LEDs per metre
• Beam Angle: 120°
• CRI: >90
• Dimensions: 10mm x 10mm
• IP Rating: IP67 (with connector)
• Operating Temperature: -40°C to +55°C
• Warranty: 5 Years

Installation & Bespoke Options

Supplied by the metre with 100mm cut increments, this Neon Flex supports bespoke configurations including cable direction and length to suit project-specific needs. Use with compatible mounting accessories for best results.

Required Products

• A 24V LED driver is required.
