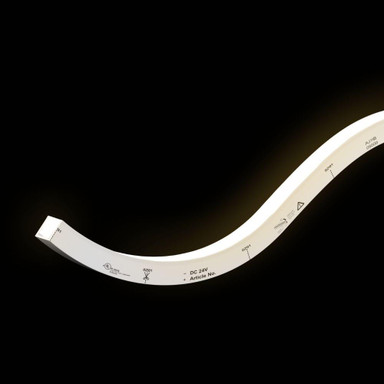

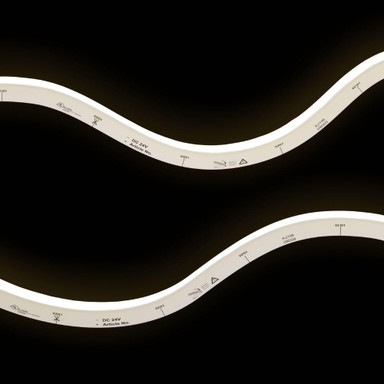

Tagra | Architectural LED Neon Flex | Vertical 16 | 16x17mm | 24V | IP68 | 12Wp/m | Custom

Introducing Our 16x17 Vertical Bend LED Neon Flex – 24V | Architectural Range

The 16x17 Vertical Bend LED Neon Flex (12W p/m) offers a compact and powerful lighting solution designed for architectural installations requiring vertical bending. Ideal for external applications, this LED flex delivers consistent performance and is engineered to endure tough environments with exceptional resilience and precision.

Utilising 8oz copper belt technology and an integrated FPCB, the flex ensures stable current transmission and reduced voltage drop. Strategic reinforcement around the SMD LEDs protects the circuit against physical stress and misalignment, reducing the risk of mechanical damage during installation or operation.

Constructed with UV-resistant silicone, the Neon Flex features anti-static, self-cleaning properties, which help maintain clarity and finish over time—even in dusty or exposed environments. Withstanding temperatures from -40°C to +55°C, the unit is fully rated for outdoor use, offering resistance to UV, flame, solvents, and salt water.

Sold by the metre with 55.6mm cut points, it’s suited to custom installations with selectable CRI levels of >80 or >90. A secure IP68-rated silicone injection-moulded connector ensures waterproof and reliable performance in demanding conditions.

Key Features

• Vertical bend configuration
• IP68-rated silicone injection-moulded connector
• Dimensions: 16mm x 17mm
• CRI options: >80 and >90
• Lumen output up to 580lm/m (depending on CCT and CRI)
• SDCM <3 for high colour consistency
• Operating temperature: -40°C to +55°C
• Supplied by the metre with 55.6mm cut points
• UV, flame, salt water, and solvent-resistant
• 5-year warranty
• Available in 2200K, 2700K, 3000K, 4000K, 5700K
• Dimmable

Specifications

• Voltage: 24V DC
• Power Consumption: 12W/m
• LED Density: 108 LEDs per metre
• Beam Angle: 110°
• CRI: >80 / >90
• Bend Direction: Vertical
• Min. Bend Diameter: 300mm
• Max. Run Length: 15m (single-end) / 30m (double-end)
• IP Rating: IP68
• IK Rating: IK10
• Material: Silicone
• Operating Temperature: -40°C to +55°C
• Warranty: 5 Years

Installation & Bespoke Options

Supplied by the metre with 55.6mm cut increments, this Neon Flex can be tailored in length, cable direction, and cut spacing. Use with compatible mounting accessories for optimal installation results.

Required Products

• A 24V LED driver is required
