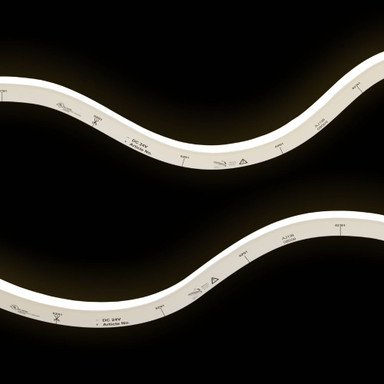

Tagra | Architectural LED Neon Flex | Vertical 16 | 16x17mm | 24V | IP68 | 15Wp/m | Custom

Introducing Our 16x17 Vertical Bend LED Neon Flex – 24V | Architectural Range

The 16x17 Vertical Bend LED Neon Flex is a high-performance lighting solution engineered for demanding exterior applications where vertical flexibility is essential. Ideal for architectural façades, marine environments, and high-brightness environments exposed to direct sunlight, it delivers consistent illumination with robust mechanical protection.

Designed with advanced 8oz copper belt and integrated FPCB, the system enhances current-carrying capacity, reduces voltage drop, and protects the LED structure during installation. Reinforcement components around the SMD LEDs minimise damage caused by mechanical force or incorrect bending.

Encapsulated in UV-resistant silicone, this light benefits from anti-static and self-cleaning technology to resist dirt accumulation, scratches, and surface wear—prolonging its appearance and functionality in harsh weather conditions. Operating between -40°C and +55°C, it is resistant to UV, solvents, salt water, and flame, ensuring long-lasting outdoor performance.

Supplied by the metre with 55.6mm cut points and a vertical bending configuration, it also includes a durable IP68 silicone injection-moulded connector for high-grade sealing and reliability in outdoor installations.

Key Features

• Vertical bend configuration
• IP68-rated silicone injection-moulded connector
• Dimensions: 16mm x 17mm
• CRI >80 for effective colour rendering
• Lumen output up to 800lm/m (varies by CCT)
• SDCM <3 for consistent colour output
• Operating temperature: -40°C to +55°C
• Supplied by the metre with 55.6mm cut points
• UV, flame, salt water, and solvent-resistant
• 5-year warranty
• Available in 2200K, 2700K, 3000K, 4000K, 5700K
• Dimmable

Specifications

• Voltage: 24V DC
• Power Consumption: 15W/m
• LED Density: 108 LEDs per metre
• Beam Angle: 110°
• CRI: >80
• Bend Direction: Vertical
• Min. Bend Diameter: 300mm
• Max. Run Length: 10m (single-end) / 20m (double-end)
• IP Rating: IP68
• IK Rating: IK10
• Material: Silicone
• Operating Temperature: -40°C to +55°C
• Warranty: 5 Years

Installation & Bespoke Options

Supplied by the metre with 55.6mm cut increments, this Neon Flex can be tailored in cable length and direction. Compatible mounting accessories are recommended for optimal installation.

Required Products

• A 24V LED driver is required
