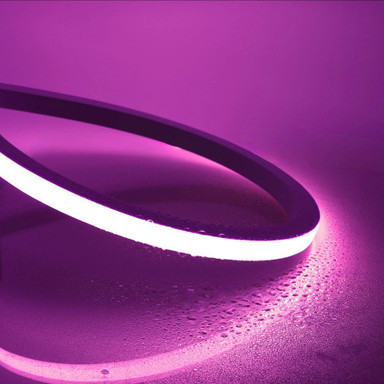

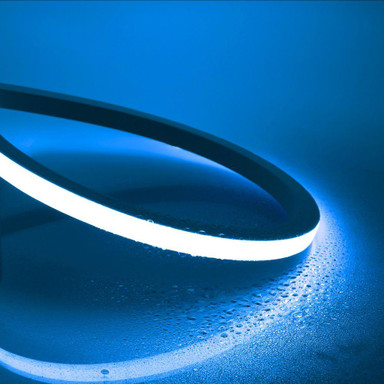

Tagra | Architectural LED Neon Flex | Vertical 16 | 16x17mm | RGB | 24V | IP68 | 12Wp/m | Custom
NEON-ARC-VB-1617-12W-RGB
Key Features
- Product Dimensions (mm): W16xH17
- Bend direction: Vertical
- Lm/m (up to): 370
- Lm/W (up to): 24
- Run length (max): 10 m
- Available Colours: RGB
- Warranty: 5 Years
Product Overview
Introducing Our 16x17 Vertical Bend LED Neon Flex – 24V | RGB | Architectural Range
The 16x17 Vertical Bend RGB LED Neon Flex is a vibrant colour-changing lighting solution built for architectural applications demanding vertical flexibility and durable performance. Suitable for façade lighting, signage, or creative exterior displays, this RGB flex delivers dynamic illumination in red, green, and blue colour channels.
Utilising high-performance 5050 RGB LEDs with a density of 84 LEDs per metre, it offers a total light output of up to 370 lumens per metre. Each unit is built using robust UV-resistant silicone and engineered to resist solvents, salt water, and flame exposure, ensuring a long and reliable service life in harsh environments.
The vertical bend direction, compact 16x17mm profile, and 83.3mm cut points allow for precision installations along curved or contoured architectural features. The IP68-rated silicone injection-moulded connector provides a weatherproof seal, enhancing system reliability across outdoor installations.
Key Features
- Vertical bend configuration
- IP68-rated silicone injection-moulded connector
- Dimensions: 16mm x 17mm
- RGB output (620–625nm red, 520–525nm green, 465–470nm blue)
- Total lumen output: up to 370lm/m
- Beam angle: 110°
- SDCM <3 for improved colour consistency
- Operating temperature: -40°C to +55°C
- Supplied by the metre with 83.3mm cut points
- UV, flame, salt water, and solvent-resistant
- 5-year warranty
- Dimmable
Specifications
- Voltage: 24V DC
- Power Consumption: 12W/m
- LED Density: 84 LEDs per metre
- Beam Angle: 110°
- CRI: N/A
- Bend Direction: Vertical
- Min. Bend Diameter: 300mm
- Max. Run Length: 10m (single-end) / 20m (double-end)
- IP Rating: IP68
- IK Rating: IK10
- Material: Silicone
- Operating Temperature: -40°C to +55°C
- Warranty: 5 Years
Installation & Bespoke Options
Supplied by the metre with 83.3mm cut increments, this Neon Flex is ideal for custom installations. Bespoke lengths and cable directions are supported. Use with compatible mounting accessories for best performance.
Required Products
- A 24V LED driver is required
Product Specification
| Warranty (Years) | 5 |
| Control Signal - Input | PWM |
| Dimmable | Yes |
| Dimming Type | PWM |
| Rated Life (Hours) | 50000 |
| Switch Cycles | 50000 |
| Max. Run Length (m) | 10 |
| Max. Wattage @ Max. Run Length (W) | 120 |
| Anti-Yellowing | Yes |
| Application Environment | High Level Façade, Marine Environments, Yachts, Bridges, Tunnels |
| Body Material | Silicone |
| Ingress Protection (IP) | 68 |
| Interior or Exterior Use | Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| UV Resistant | Yes |
| Anti-Glare Shield | Yes |
| Colour-Tuneable Light Source | Yes |
| Lamp Holder Type | none |
| Lighting Technology Used | LED |
| Mains or Non-Mains | mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Chip Type | SMD5050 |
| Connector Type | Optional |
| Copper Foil Weight (oz) | 8 |
| Cut Points (mm) | 83.33 |
| LED Module Replaceable | Yes |
| LED Pitch (mm) | 16 |
| LEDs Per Metre (LEDs/m) | 84 |
| Min. Bend Radius (mm) | 150 |
| PCB Type | Flexible |
| Pixels Per Metre (Pixels/m) | 84 |
| Product Height (mm) | 17 |
| Width (mm) | 16 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 110 |
| CRI | 80 |
| Lumens Per Metre (Lm/m) | 370 |
| Lumens Per Watt (Lm/W) | 24 |
| SDCM | 3 |
| Wavelength Blue Max. (nm) | 474 |
| Wavelength Blue Min. (nm) | 468 |
| Wavelength Green Max. (nm) | 528 |
| Wavelength Green Min. (nm) | 522 |
| Wavelength Red Max. (nm) | 624 |
| Wavelength Red Min. (nm) | 618 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -40℃ to 55℃ |
| Dimensions LxWxH (mm) | 1000x16x17 |
| Brand | Tagra |
| Family Name | Architectural Series |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Vertical |
| Cable Sheath Material | Silicone |
| Entry Cable Direction | Rear, Side, Bottom |
