Tagra | Build LED Neon Flex | Vertical 16.5 | 16.5x16.5mm | RGB | 24V | IP68 | 13Wp/m | Custom
NEON-FAC-VB-165165-24V-RGB
Key Features
- Up to 226 Lumens per metre
- IP68
- 16.5mm x 16.5mm
- 5 Year Warranty
- RGB Colour Changing
- Vertical Bending
- 83.3mm Cut Points
- Available as Sold by the Metre
- Anti-Wicking Ferrule Features
Contact Us
Please complete the details of your enquiry below and we'll be in touch shortly.
Your data will be held in accordance with our privacy policy which can be found here.
Product Overview

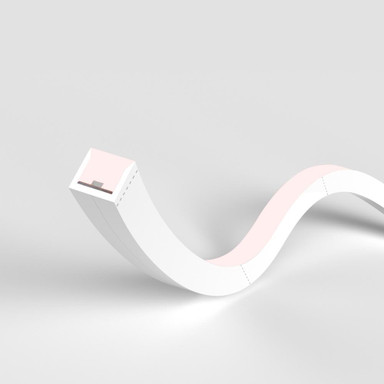

Introducing Our 16.5x16.5 Vertical Bend LED Neon Flex – 24V RGB
Ideal for high-end architectural and façade lighting, our 16.5x16.5 Vertical Bend LED Neon Flex – 24V RGB offers vibrant colour-changing illumination with robust weather resistance. Made from high-quality silicone and designed for outdoor environments, this flexible lighting solution supports a wide range of custom installations with a vertical bend profile.
Whether you’re illuminating commercial architecture, highlighting design elements, or integrating colour control into bespoke lighting schemes, this RGB LED Neon Flex delivers bold performance and visual impact. Supplied with a 5-year warranty and built for long-term reliability, it’s a premium choice for professional applications.
Key Features
With up to 226 lumens per metre, this RGB LED Neon Flex delivers rich colour-changing performance and is well suited for demanding outdoor environments, thanks to its IP68 rating. It supports vertical bending and offers flexible installation with cut points every 83.3mm. The neon is available as sold by the metre and supports a maximum run length of up to 20 metres when double-ended. Constructed from durable silicone, it provides long-term resilience and comes with a 5-year warranty as standard.
Specifications
- Voltage: 24V DC
- Typ. Power: 13.0W/m
- LEDs per metre: 72 LEDs
- Beam Angle: 120°
- Lumens per metre: Up to 161lm
- Dimensions: W16.5mm x H16.5mm
- Min. Bend Diameter: 120mm
- Max. Run Length: 10M (Single End), 20M (Double End)
- Material: Silicone
- Operating Temp: -40°C to 55°C
- Warranty: 5 Years
- IP Rating: IP68
Installation
This IP68-rated LED Neon Flex is built for outdoor use. It is available as a custom order, allowing you to tailor both the overall length and cable size to match your project requirements. For secure and long-lasting performance, we recommend using suitable mounting accessories.
Required Products
To operate this product effectively, you’ll need:
- A compatible 24V LED Driver
- RGB Controller (for colour changing functionality)
Product Specification
Warranty (Years) | 5 |
Dimmable | Yes |
Rated Life (Hours) | 43500 |
Current Max. Rated (A) | 5.41 |
Max. Run Length (m) | 10 |
Anti-Yellowing | Yes |
Application Environment | Facade |
Body Material | Silicone |
Ingress Protection (IP) | 68 |
Interior or Exterior Use | Interior or Exterior |
Saltwater Resistant | Yes |
Solvent Resistant | Yes |
UV Resistant | Yes |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Weight (AWG) | 20 |
Chip Type | 5050 |
Cut Points (mm) | 83.33 |
Entry Cable Direction | Rear, Side, Bottom |
LEDs Per Metre (LEDs/m) | 72 |
Min. Bend Radius (mm) | 60 |
Product Height (mm) | 17 |
Width (mm) | 17 |
Constant Voltage / Constant Current | CV |
Beam Angle (°) | 120 |
Lumens Per Metre (Lm/m) | 226 |
Lumens Per Watt (Lm/W) | 17 |
Wavelength (nm) | 450 |
Wavelength Blue Max. (nm) | 475 |
Wavelength Blue Min. (nm) | 465 |
Wavelength Green Max. (nm) | 530 |
Wavelength Green Min. (nm) | 520 |
Wavelength Red Max. (nm) | 630 |
Wavelength Red Min. (nm) | 620 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -40℃ to 55℃ |
Dimensions LxWxH (mm) | 1000x17x17 |
Brand | Tagra |
Family Name | Build Series |
Certification | EMC - 2014/30/EU |
Bend Direction | Vertical |
Cable Sheath Material | Silicone |
CRI | 90 |
SDCM | 3 |
