Tagra | Mini & Standard | Dimmable | Downlight LED Module & Driver

Specifications:

• Wattage: Mini - 6W, Standard - 8W
• Available Colours: 3000K or 4000K
• Available Beam Angles: 15°, 24°, or 36°
• CRI: 90+
• Lumens: Up to 1000lm
• IP Rating: IP20
• Warranty: 5 Years

Introduction:

Designed specifically for our LED Downlight series, these LED modules deliver high-performance, precision lighting for commercial and hospitality environments. Whether for offices, retail spaces, restaurants, or hotels, they provide a reliable solution where standard GU10 lamps simply don’t make the cut.

Mini LED modules are compatible with the Mini Downlight Series. The Standard LED modules are compatible with the Standard Downlight Series.

Key Features & Benefits:

• Enhanced Light Quality - Available in 3000K and 4000K in CRI90 for accurate colour rendering.
• Precision Optics - Choice of beam angles – 15°, 24°, or 36° for tailored illumination.
• Performance & Efficiency - Output up to 1000 lumens, delivering superior brightness over traditional GU10 lamps & Dimmable operation for complete lighting control.

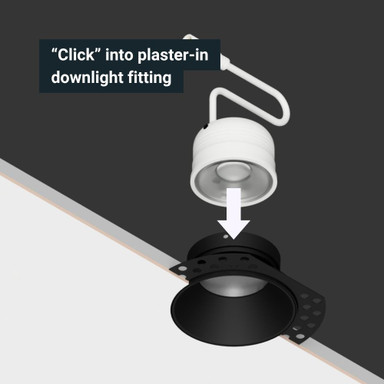

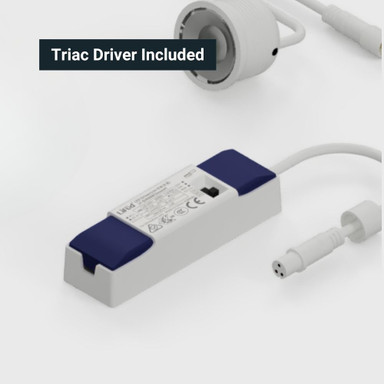

• Ease of Installation - Includes DC jack connector between module and driver for quick setup.

Installation Guidance:

This product must be installed by a suitably competent person in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to commencing work.
