Tagra | Economy COB LED Strip Light | 480 LEDs p/m | 24V | IP65 | 10.5W/m | 5 & 50M Reels
EC24-65B
From £43.68 Inc. VAT
Key Features

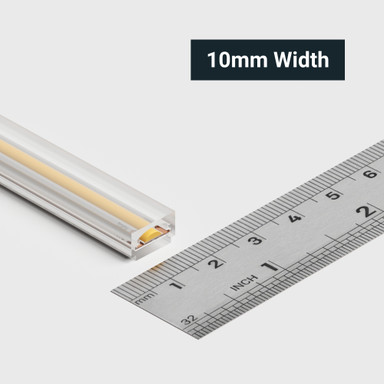

- Product Width: 10mm
- Lm/m (up to): 946 Lm/m
- Lm/W (up to): 99 Lm/W
- CRI: 90+
- Lightsource SDCM: ≤5
- Run Length (Max): 5m
- Available Colours: 2700K, 3000K, 4000K, 6500K
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £4.99
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 10.5W/m

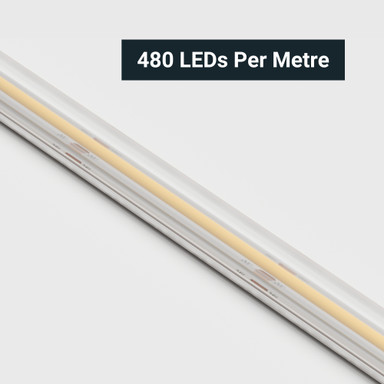

- LEDs per metre: 480 LEDs

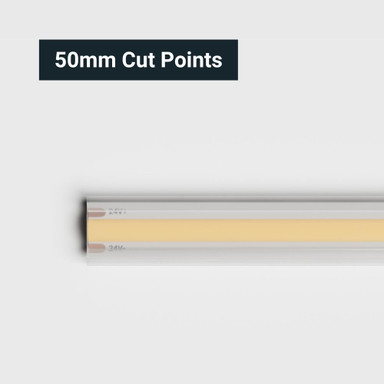

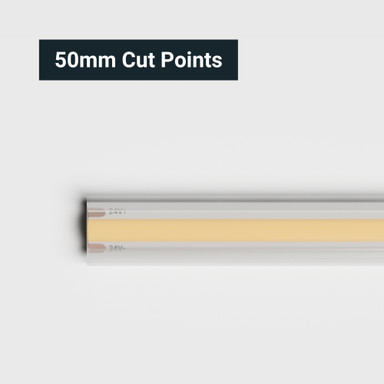

- Cut Points: 50mm
- Beam Angle: 140°
- SDCM: <5
- PCB Weight: 2oz
- Lumens: Up to 946lm/m
- Warranty: 2 Years
Information:

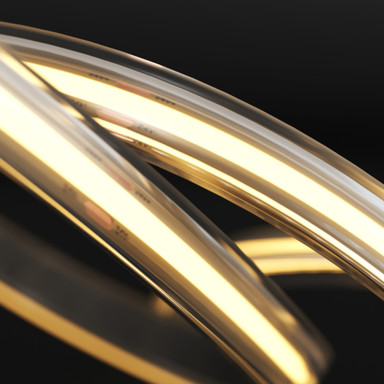

Introducing our Economy Series COB LED strip light in IP65, available in 2700K, 3000K, 4000K, and 6500K. Featuring a continuous phosphorus coating ensures the LED chips produce an uninterrupted linear light. This COB LED strip light offers seamless, uniform lighting with no dark spots, making it ideal for a wide range of applications. The strip light is highly flexible with a beam angle of 140° and provides up to 946 lumens per metre.

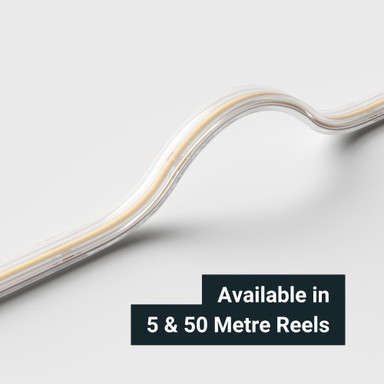

The product is available in both 5 metre and 50 metre reels and can be cut at 50mm increments, making it customisable for various installations. With a high CRI of >90 and an SDCM of <5, this LED strip is ideal for cost-effective, seamless lighting.
It comes with 500mm tinned end cables (5 metre reel) for easy soldering and installation. The product is IP65 rated, making it suitable for indoor use, and comes with an adhesive backing for simple installation on smooth surfaces.
Installation:

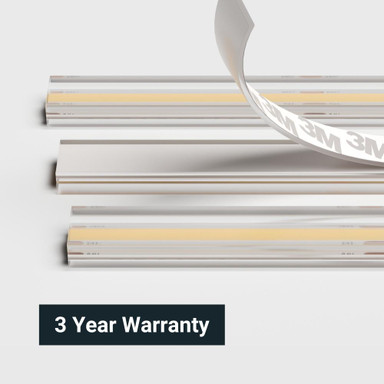

The LED strip light is suitable for indoor and outdoor installations with an IP65 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces. We recommend installing the LED strip in an aluminum profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to properly operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 3 |
| Dimmable | Yes |
| Energy Efficiency Class | F |
| Rated Life (Hours) | 36000 |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.44 |
| Anti-Yellowing | No |
| Application Environment | Indoor |
| Ingress Protection (IP) | 65 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 70 |
| Anti-Glare Shield | No |
| Colour-Tuneable Light Source | No |
| Lighting Technology Used | LED |
| Mains or Non-Mains | Non-mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 20 |
| Chip Type | COB |
| Copper Foil Weight (oz) | 2 |
| Cut Points (mm) | 50 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 2.08 |
| LEDs Per Metre (LEDs/m) | 480 |
| Min. Bend Radius (mm) | 30 |
| PCB Type | Flexible |
| Product Height (mm) | 5 |
| Product Weight (g) | 380 |
| Width (mm) | 10 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 145 |
| Bin Number | 2 |
| CRI | 90 |
| SDCM | 5 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Self Adhesive (Brand & Model Number) | JL-4910F |
| Brand | Tagra |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | PVC |
