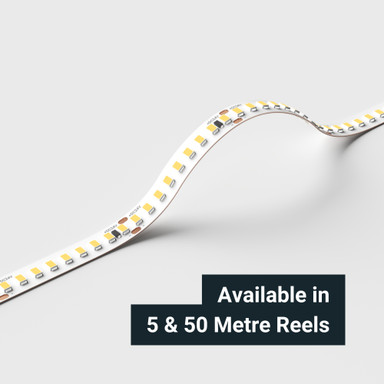

Tagra | Efficiency LED Strip Light | 180 LEDs p/m | 24V | IP20 | 4.4Wp/m | 5 & 50M Reels
EP24-180
From £46.56 Inc. VAT
Key Features

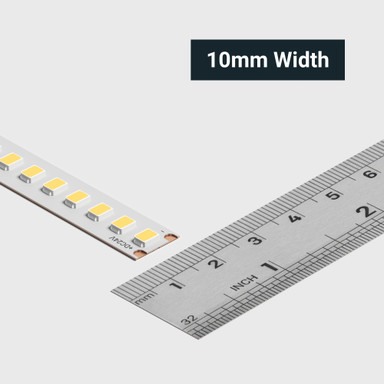

- Product Width: 10mm
- Lm/m (up to): 859.4Lm/m
- Lm/W (up to): 207.2Lm/W
- CRI: 80+
- Lightsource SDCM: ≤3
- Run Length (Max): 5m
- Available Colours: 2700K, 3000K, 4000K, 5000K, 6000K
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 4.4W/m
- LEDs per metre: 180 LEDs
- Cut Points: 83.3mm
- CRI: 80+
- Beam Angle: 120°
- SDCM: <3
- PCB Weight: 4oz
- Lumens: Up to 859lm/m
- Warranty: 5 Years
Introduction:
The Efficiency Series LED Strip Light is engineered for projects where energy performance and running costs matter most. With a high lumen per watt output, this strip delivers excellent brightness while consuming minimal power, making it ideal for installations that operate for extended hours.
Perfect for commercial environments, Efficiency Series offers a lighting solution that balances performance, reliability, and cost control.
Installation:

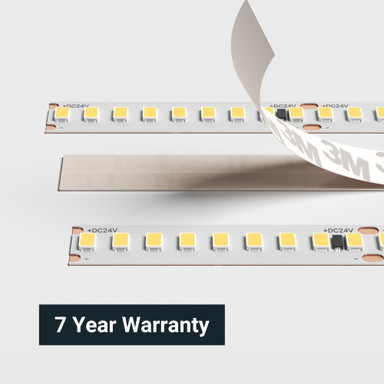

The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Dimmable | No |
| Energy Efficiency Class | C |
| Rated Life (Hours) | 50000 |
| Switch Cycles | 1200 |
| Current Max. Rated (A) | 0.183 |
| Anti-Yellowing | No |
| Application Environment | Indoor |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 90 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 90 |
| Anti-Glare Shield | No |
| Colour-Tuneable Light Source | No |
| Lamp Holder Type | No |
| Lighting Technology Used | LED |
| Mains or Non-Mains | non-mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 0.5 |
| Cable Weight (AWG) | 18 |

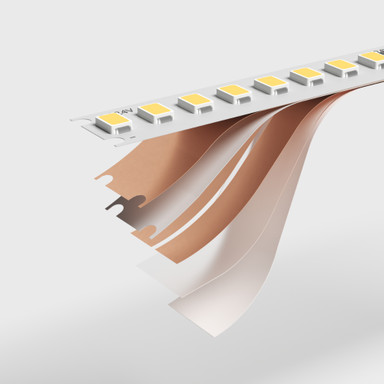

| Copper Foil Weight (oz) | 4 |

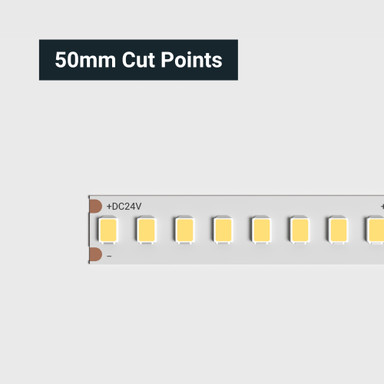

| Cut Points (mm) | 50 |
| LED Module Replaceable | false |

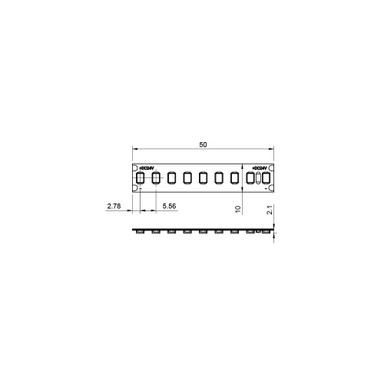

| LED Pitch (mm) | 5.56 |
| LEDs Per Metre (LEDs/m) | 180 |
| Min. Bend Radius (mm) | 50 |
| PCB Type | Flexible |
| Product Height (mm) | 2 |
| Product Weight (g) | 110 |
| Width (mm) | 10 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 120 |
| Bin Number | 1 |
| CRI | 80 |
| SDCM | 3 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 50℃ |
| Self Adhesive (Brand & Model Number) | 3M-9080 |
| Brand | Tagra |
| Bend Direction | Horizontal |
| Cable Sheath Material | PVC |
