Tagra | Efficiency LED Strip Light | Long Run | 160 LEDs p/m | 24V | IP20 | 3.3Wp/m | 20M Reels
EP24-20M
From £346.67 Inc. VAT
Key Features

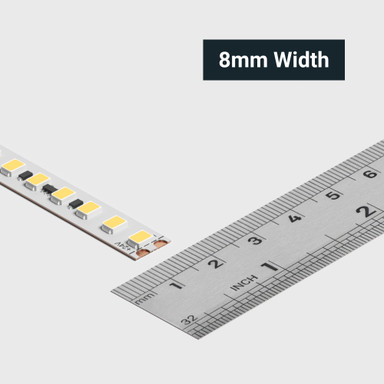

- Product Width: 8mm
- Lm/m (up to): 501Lm/m
- Lm/W (up to): 167Lm/W
- CRI: 90+
- Lightsource SDCM: ≤3
- Run Length (Max): 20m
- Available Colours: 2700K, 3000K, 4000K, 6000K
- Warranty: 7 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 3.3W/m

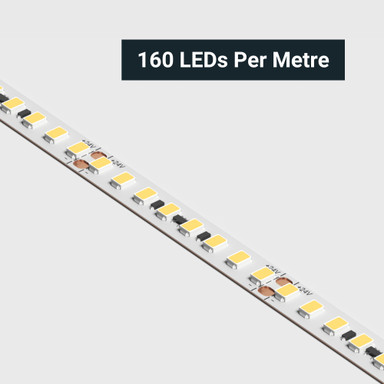

- LEDs per metre: 160 LEDs

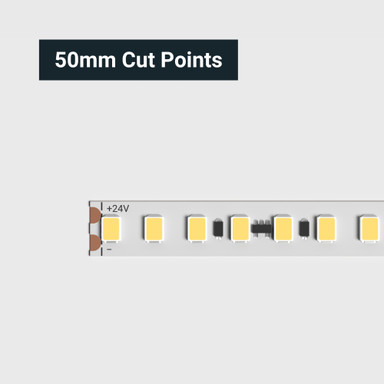

- Cut Points: 50mm
- CRI: 90+
- Beam Angle: 120°
- SDCM: <3
- PCB Weight: 3oz
- Lumens: Up to 501lm/m
- Warranty: 7 Years
Introduction:
The Efficiency Series LED Strip Light is engineered for projects where energy performance and running costs matter most. With a high lumen per watt output, this strip delivers excellent brightness while consuming minimal power, making it ideal for installations that operate for extended hours & run lengths.
Perfect for commercial environments, Efficiency Series offers a lighting solution that balances performance, reliability, and cost control.
Installation:

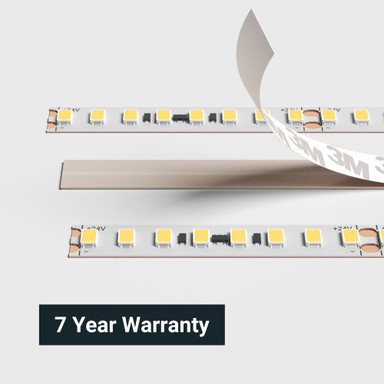

The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Energy Efficiency Class | D |
| Rated Life (Hours) | 50000 |
| Current Max. Rated (A) | 0.1375 |
| Anti-Yellowing | No |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Working Humidity Max. (°C) | 80 |
| Cable Both Ends | Yes |
| Cable Length (mm) | 0.5 |
| Cable Weight (AWG) | 18 |
| Chip Type | SMD |
| Copper Foil Weight (oz) | 3 |

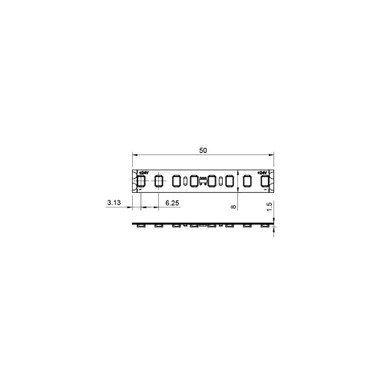

| Cut Points (mm) | 50 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 6.25 |
| LEDs Per Metre (LEDs/m) | 160 |

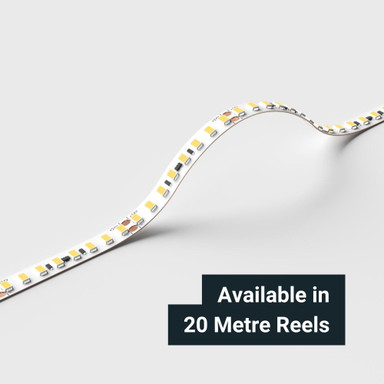

| Min. Bend Radius (mm) | 20 |
| PCB Type | Flexible |
| Product Height (mm) | 2 |
| Width (mm) | 8 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 120 |
| Bin Number | 1 |
| CRI | 90 |
| Total Lumens (Lm) | 9006 |
| SDCM | 3 |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Self Adhesive (Brand & Model Number) | 3M-300LSE |
| Brand | Tagra |
| Bend Direction | Horizontal |
| Cable Sheath Material | PVC |
