Tagra | IP65 | 24V | Toning Essential | LED Strip Light | 60 LEDs p/m | 14.4W p/m | RGB |
TE24-RGB65
From £46.42 Inc. VAT
Key Features

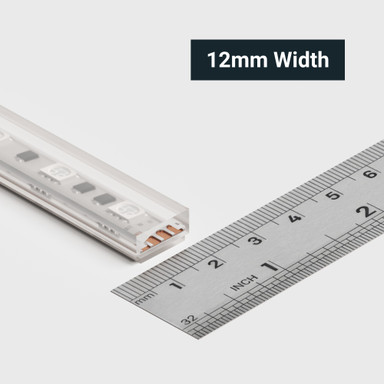

- Product Width (mm): 12 mm
- Lm/m (up to): 556.8 Lm/m
- Lm/W (up to): 39 Lm/W
- Run Length (Max): 5 m
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 14.4W/m

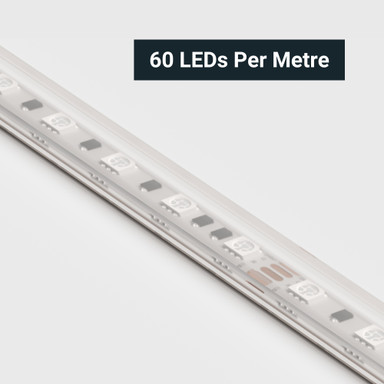

- LEDs per metre: 60 LEDs

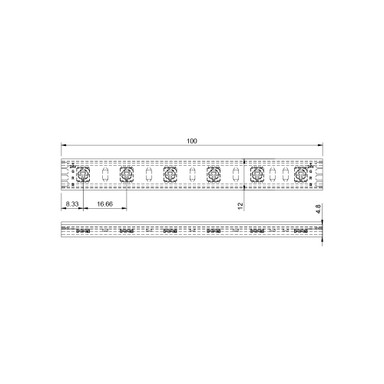

- Cut Points: 100mm
- Beam Angle: 120°
- SDCM: <5
- PCB Weight: 2oz
- Lumens: Up to 587 lm/m
- Warranty: 3 Years
Information:

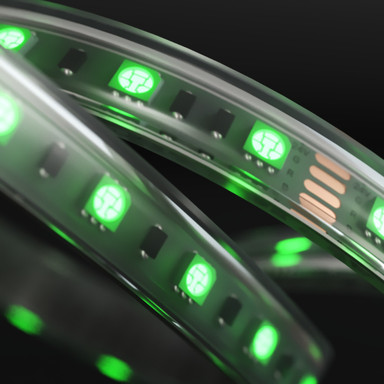

Introducing our Essential Toning 24V RGB IP65 LED Strip Light designed for essential display and ambient lighting installations. This range of LED strip lights gives you a cost effective and value for money solution for colour changing installations. Features cut points at 100mm intervals, and a lumen output of up to 587 lumens per metre. A LED density of 60 LEDs per metre make this strip light better suited for deeper profiles to reduce the chance of spotting.
For more specific lengths of this strip light, take a look at our cut to size offering.
Part of the Essential range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

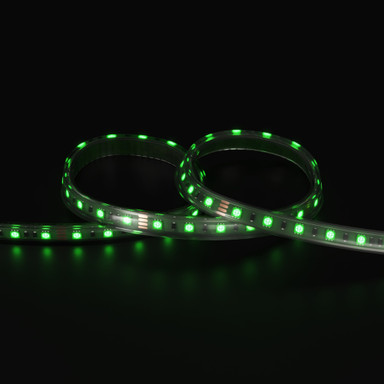

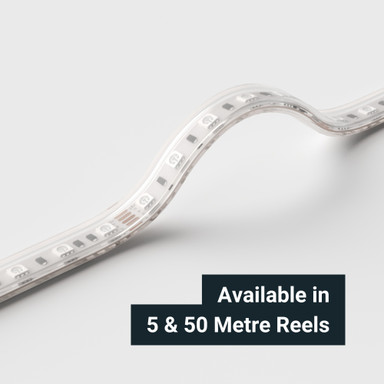

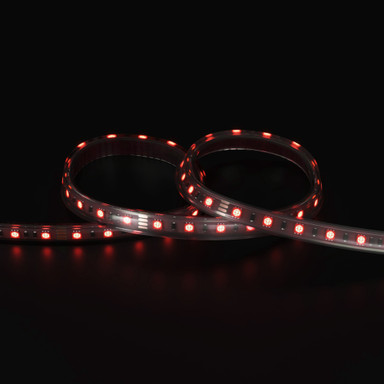

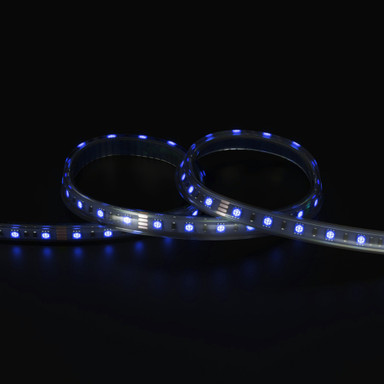

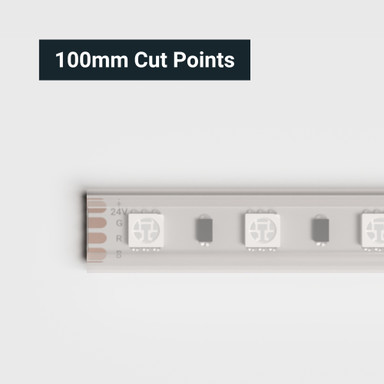

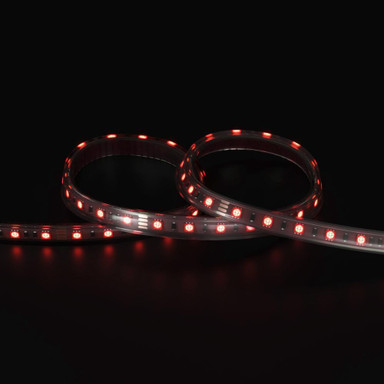

Available in RGB colour changing. Comes as a 5 metre or 50 metre reel as standard and can be cut to your required length using the cut points which are located at 100mm intervals. Also compatible with a range of connectors to help you achieve joins, corners and extensions.
Our Essential Toning LED Strip Light is manufactured using high quality materials and components. Its light output, colour changing features and affordability make it ideal for a range of installations. Come with a 3 year warranty as standard.
Installation:

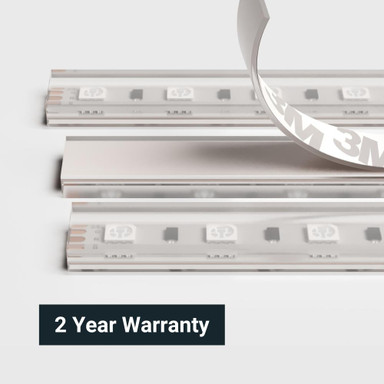

Available in IP65 making it suitable for indoor and outdoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.
We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
- 24V LED Controller
Product Specification
Warranty (Years) | 2 |
Dimmable | Yes |
Dimming Type | PWM |
Rated Life (Hours) | 50000 |
Switch Cycles | 25000 |
Max. Wattage @ Max. Run Length (W) | 72 |
Anti-Yellowing | Yes |
Application Environment | DOMESTIC, COMMERCIAL RESIDENTIAL |
Body Material | Plastic |
Ingress Protection (IP) | 65 |
Interior or Exterior Use | Exterior |
Saltwater Resistant | Yes |
Solvent Resistant | No |
UV Resistant | Yes |
Anti-Glare Shield | No |
Colour-Tuneable Light Source | Yes |
Lighting Technology Used | LED |
Mains or Non-Mains | NON-MAINS |
Input Voltage Min. - Max (V) | 24-24V |
Cable Both Ends | Yes |
Cable Length (mm) | 500 |
Cable Weight (AWG) | 20 |
Chip Type | 5050 |
Copper Foil Weight (oz) | 2 |
Cut Points (mm) | 100 |
LED Module Replaceable | false |
LED Pitch (mm) | 100 |
LEDs Per Metre (LEDs/m) | 60 |
PCB Type | Flexible |
Product Height (mm) | 5 |
Product Weight (g) | 350 |
Width (mm) | 12 |
Constant Voltage / Constant Current | CV |
Beam Angle (°) | 120 |
Bin Number | 1 |
Total Lumens (Lm) | 2505.6 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -20℃ to 50℃ |
Brand | Tagra |
Family Name | Essential |
Certification | ECR - UK SI 2016 No 1091,EESR - UK SI 2016 No 1101 |
Cable Sheath Material | PVC |
Bend Direction | Vertical |
