Products Tested In-House
Tagra | Professional COB LED Strip Light | Cut Anywhere | 320 LEDs p/m | 24V | IP20 | 11.2Wp/m | 5 & 50M Reel
PC24-FC
From £70.50 Inc. VAT
Key Features

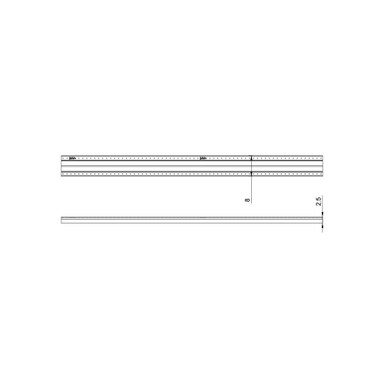

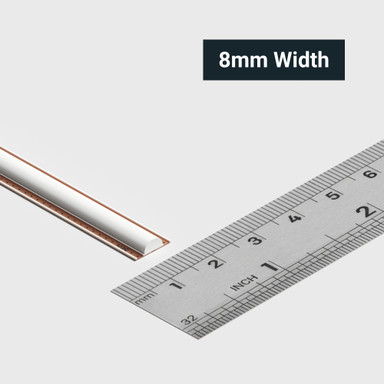

- Product Width: 8 mm
- Lm/m (up to): 1198.4 Lm/m
- Lm/W (up to): 107 Lm/W
- CRI: 90+
- Lightsource SDCM: ≤3
- Run Length (Max): 5 m
- Available Colours: 2300K, 2700K, 3000K, 4000K, 6000K
- Warranty: 7 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 11.2W/m

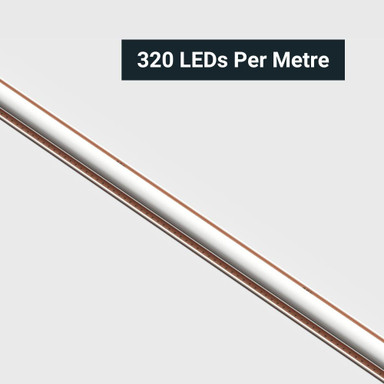

- LEDs per metre: 320 LEDs

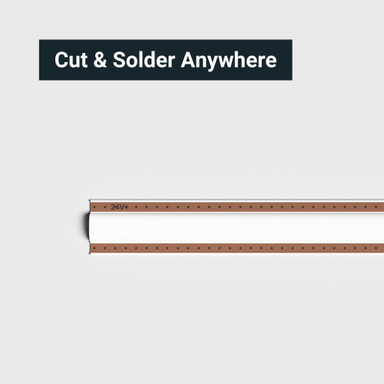

- Cut Points: Cut Anywhere
- Beam Angle: 150°
- SDCM: <3
- PCB Weight: 2oz
- Lumens: Up to 1200lm/m
- Warranty: 7 Years
Information:

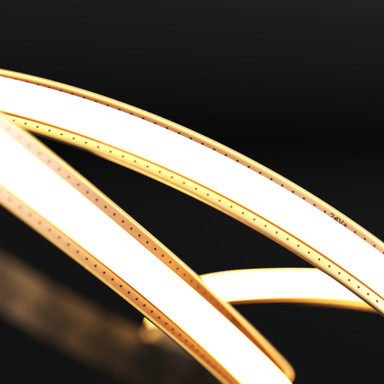

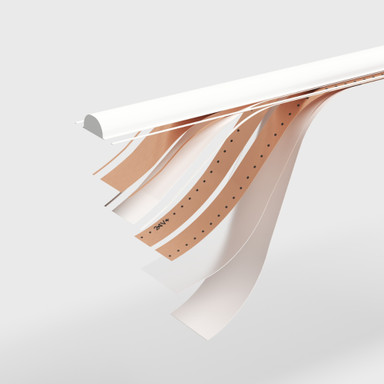

Introducing our Professional Cut Anywhere COB LED strip light, available in various colour temperatures including 2100K, 2300K, 2700K, 3000K, 4000K and 6000K. Featuring a continuous phosphur coating and copper PCB, the strip light can produce an uninterrupted linear light and at the same time, be cut to any desired length. Perfect for LED lighting where accurate cut lengths and spot-free light is needed. This strip light is highly flexible and has a beam angle of 150° and can produce up to 1200 lumens per metre.

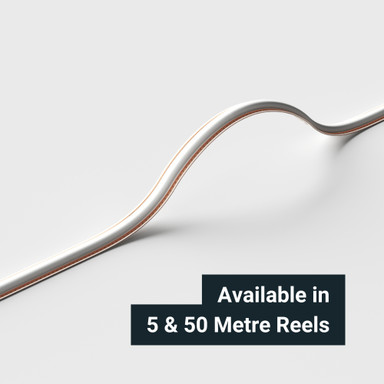

This product is available in both 5 metre and 50 metre reels and can be cut anywhere, making it customisable for a wide range of installations. With a high CRI output of >90 and an SDCM value of <3, this strip light is a efficient and reliable solution for seamless lighting.
It comes with 500mm tinned end cables for easy soldering and installation. Our professional COB LED Strip Light is manufactured using high quality materials and components and comes with a 7 year warranty as standard.
Installation:

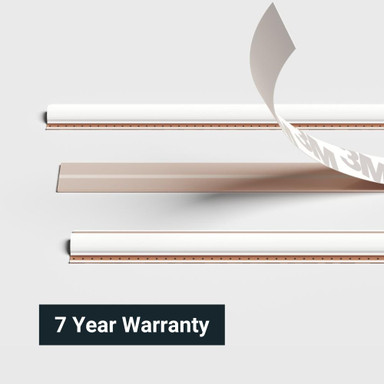

The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to operate this product:
Videos
Product Specification
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Dimming Type | PWM, 0-10V, TRIAC, DALI, DMX |
| Energy Efficiency Class | F |
| Max. Run Length (m) | 5 |
| Max. Wattage @ Max. Run Length (W) | 56 |
| Anti-Yellowing | Yes |
| Application Environment | Hospitality, Commerical |
| Ingress Protection (IP) | 20 |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 80 |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Weight (AWG) | 22 |
| Copper Foil Weight (oz) | 2 |
| LEDs Per Metre (LEDs/m) | 320 |
| PCB Type | FPC |
| Product Height (mm) | 3 |
| Width (mm) | 8 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 150 |
| SDCM | 3 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Self Adhesive (Brand & Model Number) | 3M-300LSE |
| Brand | Tagra |
| Certification | ECR - UK SI 2016 No 1091,EESR - UK SI 2016 No 1101,EMC - 2014/30/EU |
| Cable Sheath Material | PVC |
| Body Colour | White |
| Cut Points (mm) | 0 |
| CRI | 90 |
| Family Name | Professional COB |
| Bend Direction | Vertical |
| Bin Number | 1 |
Technical Documents
