Tagra | Joinery LED Strip Light | 420 LEDs p/m | 24V | IP20 | 10Wp/m | 2.5M Reel
PC24-4MM
From £30.00 Inc. VAT
Key Features
- Up to 810 Lumens Per Metre
- IP20

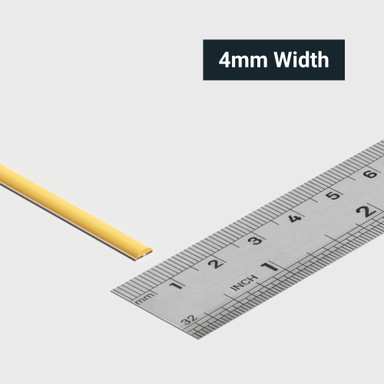

- 4mm Width
- 3 Year Warranty

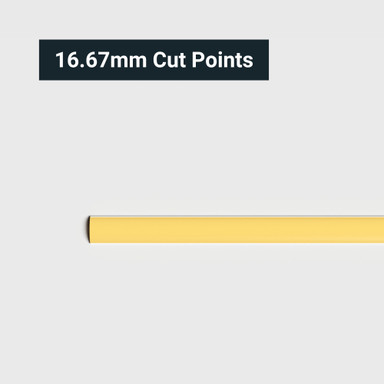

- 16.67mm Cut Points
- Available in 2.5m
- Available in 2700K, 3000K, 4000K & 6000K
- Other specifications available, subject to minimum order. Contact us.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 10.0W/m
- LEDs per metre: 400 LEDs
- Cut Points: 16.67mm
- Beam Angle: 140°
- SDCM: <3
- PCB Weight: 2oz
- Lumens: Up to 810lm/m
- Warranty: 3 Years
Information:

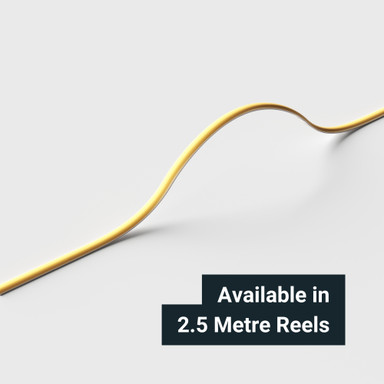

Introducing our Professional Micro Width COB LED strip light, available in various colour temperatures including 2100K, 2300K, 2700K, 3000K, 4000K and 6500K. Featuring a miniature width of just 4mm, this continuous phosphur coated strip light can produce an uninterrupted linear light up to 2.5 metres in length. Perfect for LED lighting where micro width and spot-free light is needed. This strip light is highly flexible and has a beam angle of 140° and can produce up to 810 lumens per metre.
This product is available in 5 metre reels and can be cut at 16.67mm intervals, making it customisable for a wide range of installations. With a high CRI output of >90 and an SDCM value of <3, this strip light is a efficient and reliable solution for seamless lighting.
It comes with 500mm tinned end cables for easy soldering and installation. Our professional COB LED Strip Light is manufactured using high quality materials and components and comes with a 3 year warranty as standard.
Installation:

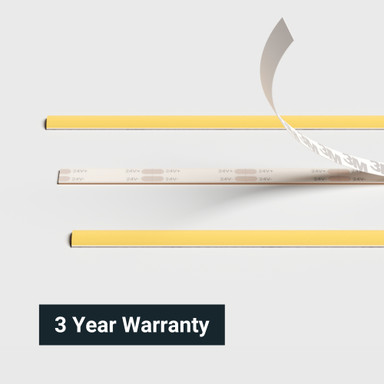

The LED strip light is suitable for indoor installations with an IP20 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to operate this product:
Product Specification
Warranty (Years) | 3 |
Dimmable | Yes |
Energy Efficiency Class | G |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Length (m) | 500 |
Copper Foil Weight (oz) | 2 |
Cut Points (mm) | 16.67 |

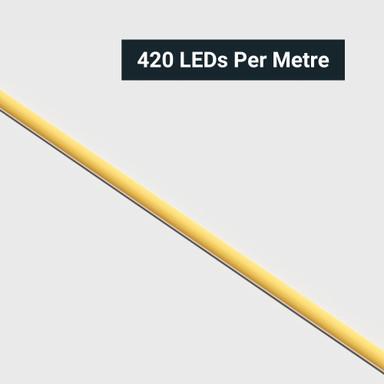

LEDs Per Metre (LEDs/m) | 420 |
Product Height (mm) | 2 |
Product Weight (g) | 20 |
Width (mm) | 4 |
Battery Included | No |
Beam Angle (°) | 140 |
CRI | 90 |
Total Lumens (Lm) | 1700 |
SDCM | 3 |
Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
Brand | Tagra |
Bend Direction | Vertical |
Wattage (W) | 10 |
Family Name | Joinery |
Cable Length (mm) | 500 |
