Tagra | Double Row LED Strip Light | Bendable | 168 LEDs p/m | 24V | IP20 | 22Wp/m | RGB | 5M Reel

Specifications:

• Voltage: 24V
• Max. Power: 20.0W/m
• LEDs per metre: 168 LEDs

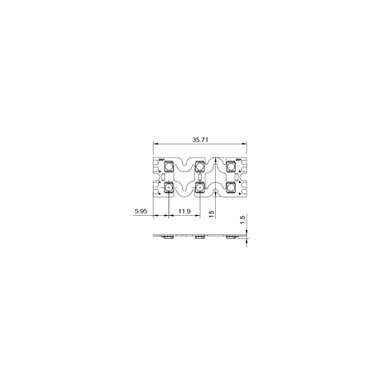

• Cut Points: 35.7mm
• Beam Angle: 120°
• SDCM: <3
• PCB Weight: 3oz
• Lumens: Up to 756lm/m
• Warranty: 7 Years

Information:

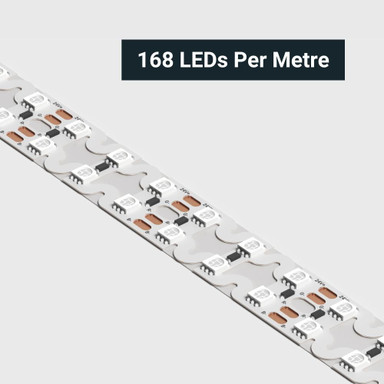

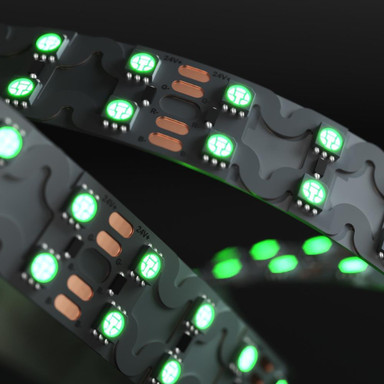

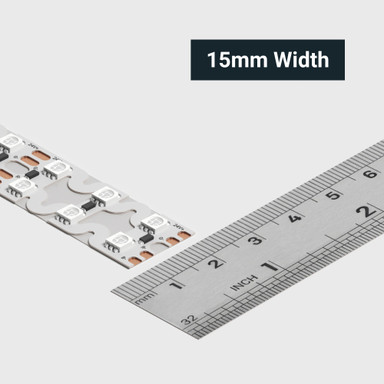

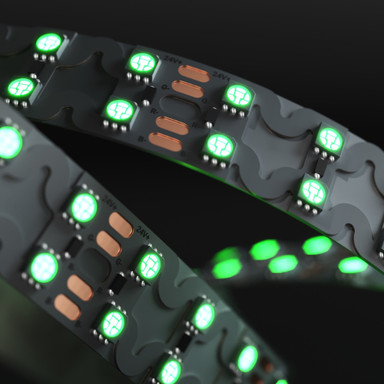

Perfect for use in wide and deep LED profiles where more than one row of LEDs may be required. High LED density of 168 LEDs per metre, 6 LEDs per unit and a width of 15mm makes this product ideal for use in luminaires and LED profiles. The LED density will produce a spot-free continuous light in most of our LED profiles. A 120° beam angle and up to 756lm per metre make it a perfect solution for most professional installations.

Part of the Professional range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

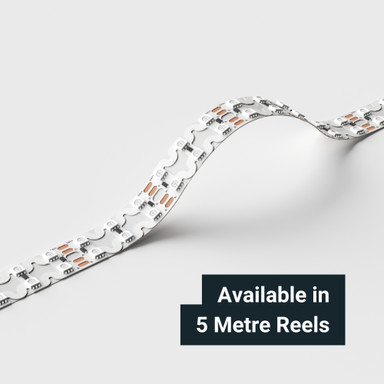

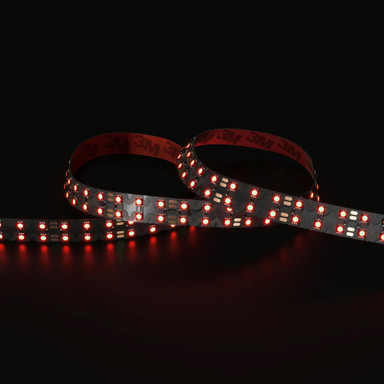

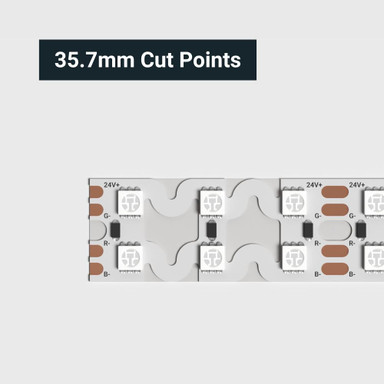

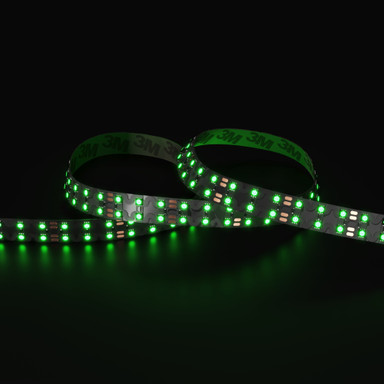

Available in colour changing RGB. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 35.7mm intervals.

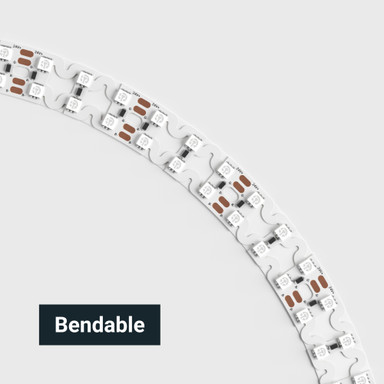

Our Professional Double Row LED Strip Light is manufactured using high quality materials and components. Its flexibility and high brightness make it ideal for a range of installations.

Installation:

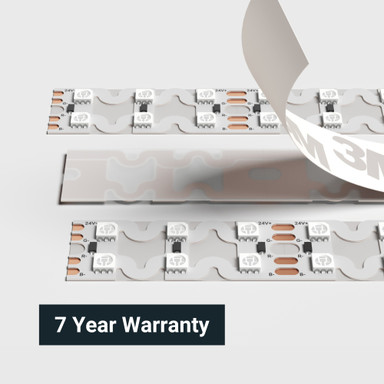

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.

We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.

Required Products:

The list of products below are required in order to properly operate this product:

• 24V LED Driver
• 24V LED Controller
