Tagra | High Definition LED Strip Light | 80 LEDs p/m | 24V | IP20 | 7.2Wp/m | 5M Reel
AS24-80
Key Features
- Up to 840 Lumens Per Metre
- IP20

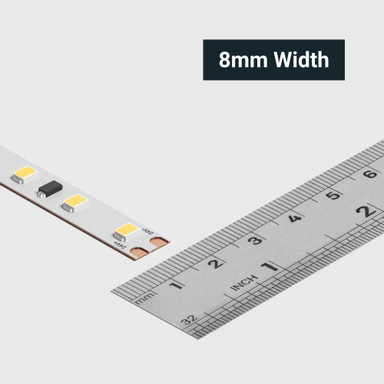

- 8mm Width
- 7 Year Warranty
- 100mm Cut Points
- >95 CRI Full Spectrum
- Available in 2300K, 2700K, 3000K & 4000K
- Other specifications available, subject to minimum order. Contact us.
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 7.2W/m

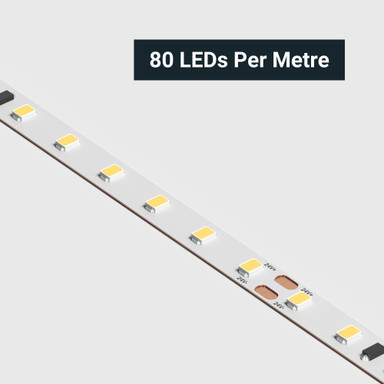

- LEDs per metre: 80 LEDs
- Cut Points: 100mm
- CRI: >95 Full Spectrum
- Beam Angle: 120°
- SDCM: <2
- PCB Weight: 2oz
- Lumens: Up to 840lm/m
- Warranty: 7 Years
Information:
Producing an incredible >95 CRI Full Spectrum, this LED strip light range is perfect for installations where you need to accurately represent colours. LED density of 80 LEDs per metre combined with 24V power input makes this product a reliable and efficient choice. The LED density will produce a spotty light output unless used with some of our deeper LED profiles. A 120° beam angle and brightness of up to 840lm per metre make it a perfect solution for all professional installations.
Part of the Professional High Definition range it features 2x 500mm pre-attached cables. These cables have tinned ends making them suitable for soldering straight away. Capable of achieving up to 5 metres of light when powered from one end.

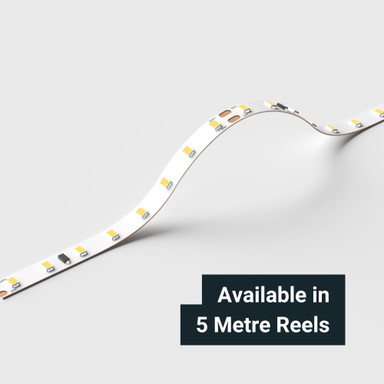

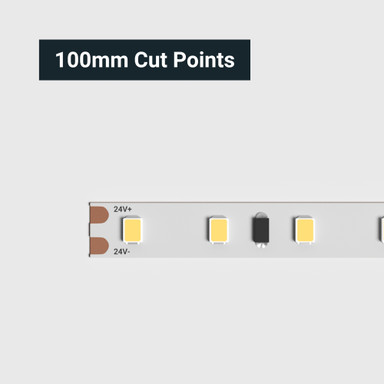

Available in a range of white light colours including 2300K, 2700K, 3000K and 4000K. Comes as a 5 metre reel as standard and can be cut to your required length using the cut points which are located at 100mm intervals.

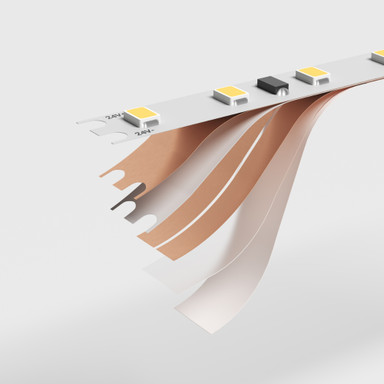

Our Professional High Definition LED Strip Light is manufactured using high quality materials and components. Featuring a 2oz PCB which helps with thermal cooling and reduced voltage drop, and a 8 LED/unit which benefits efficacy. It's ideal for professional installations where brightness and colour accuracy are important.
Installation:

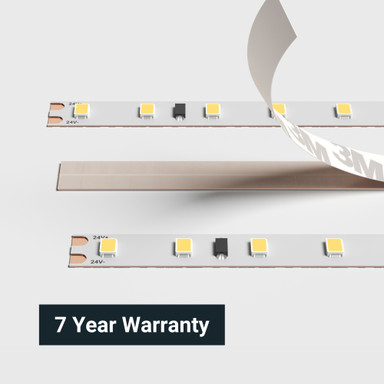

Available in IP20 making it suitable for indoor installation. All our flexible LED strip lights feature an adhesive backing. Remove the protective backing and stick to a surface ensuring it is smooth and clean.
We recommend installing our LED strip lights within a LED Profile. These offer protection for the strip lights and the aluminium material acts as a heat sink, reducing the chance of over-heating and prolonging the life of the product.
Required Products:
The list of products below are required in order to properly operate this product:
- 24V LED Driver
Product Specification
Warranty (Years) | 7 |
Dimmable | Yes |
Energy Efficiency Class | E |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Length (m) | 500 |
Cut Points (mm) | 100 |
LEDs Per Metre (LEDs/m) | 80 |
Product Height (mm) | 2 |
Product Weight (g) | 70 |
Width (mm) | 8 |
Battery Included | No |
Beam Angle (°) | 120 |
CRI | 95 |
Total Lumens (Lm) | 4025 |
SDCM | 2 |
Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
Brand | Tagra |
Bend Direction | Vertical |
Wattage (W) | 7.2 |
Max. Run Length (m) | 5 |
Depth (mm) | 5000 |
Dimensions LxWxH (mm) | 5000x8x2 |
Family Name | High Definition |
Bin Number | 1 |
Cable Length (mm) | 500 |
