Tagra | LED Light Sheet Kit | 24V | IP20 | 15W | RGB+W

Specifications:

• Voltage: 24V
• Max. Power: 11.2W/sheet
• LEDs per sheet: 1152 LEDs (288 Red + 288 Green + 288 Blue + 288 White)
• Cut Points: 25.42mm
• CRI: >80
• Beam Angle: 120°
• SDCM: <3
• PCB Weight: 3oz
• Lumens: Up to 1180 lm/sheet
• Max. Run Length: 4 Sheets
• Warranty: 3 Years

Information:

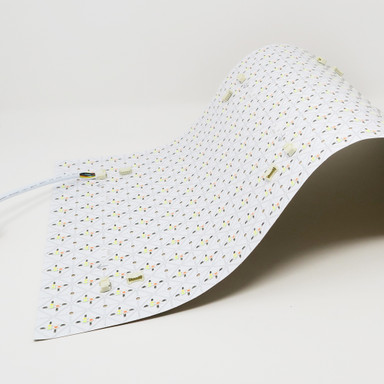

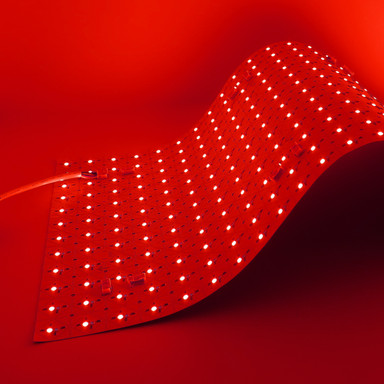

Introducing our Professional Series RGBW LED Light Sheets. They feature a flexible design, adhesive backing, and can be cut at various angles. Capable of producing a lumen output of up to 1180 lumens per sheet, making them an ideal solution for installations requiring dynamic colour control, high brightness, and uniform illumination.

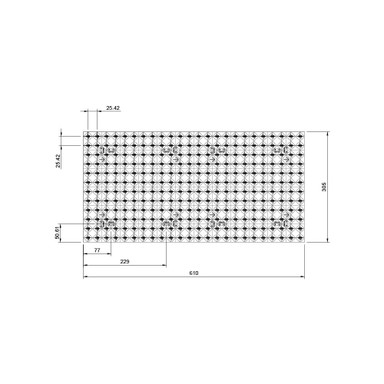

Perfect for use in both vertical and horizontal orientations, this LED sheet offers 1152 LEDs per sheet within a 610mm x 305mm sheet size. The density of the LEDs and a 120° beam angle ensure an even glow when used to light a surface.

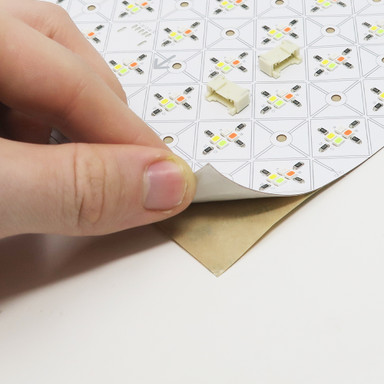

This product is part of the Professional range and comes with 3M adhesive backing for easy installation.

Each 2 pack contains:

• 2x Light Sheets

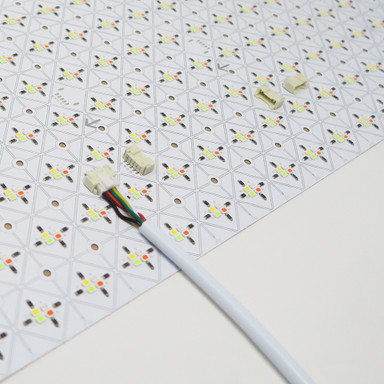

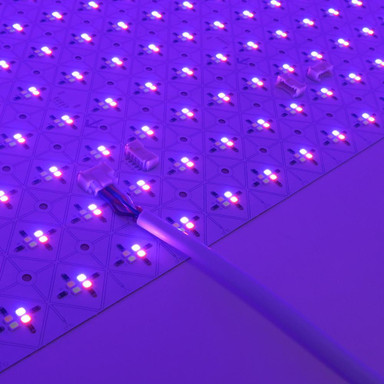

• 8x 50mm RGBW Connector Cables
• 8x 100mm RGBW Connector Cables
• 1x 1500mm Power Input Cable with bare ends

Each single pack contains:

• 1x Light Sheet
• 2x 50mm RGBW Connector Cables
• 2x 100mm RGBW Connector Cables
• 1x 1500mm Power Input Cable with bare ends

This LED light sheet pack can provide lighting for an area of up to 0.72m².

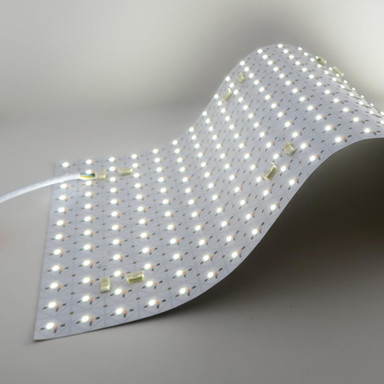

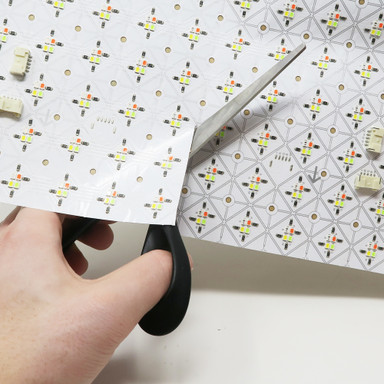

Available in RGB+3000K and RGB+6500K with the option to cut at 25.42mm intervals horizontally, vertically, and diagonally for custom installations.

Manufactured using high-quality materials, its flexibility and high brightness make it suitable for a wide variety of projects. Features a 3 year warranty as standard.

Installation:

This LED light sheet is rated IP20, making it suitable for indoor applications. The adhesive backing allows easy installation on smooth and clean surfaces. When placing a material above the light sheets, ensure a minimum distance of 10mm between the light sheet and the material.

For the best performance, we recommend installing this product onto a metallic surface. The metallic surface helps dissipate heat, extending the product's lifespan.

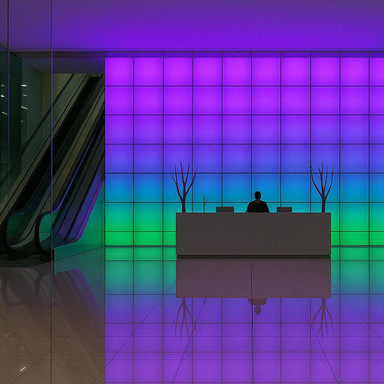

Ideal for lightboxes,backlighting, signage, curved surfaces and lettering.

Required Products:

To operate this product correctly, the following items are required:

• 24V LED Driver
• Compatible RGBW 24V LED Controller
