Products Tested In-House
For CAD files, please sign in
Tagra | Decor LED Neon Flex | Dual Circ 25 | 25x25mm | 24V | IP65 | 11Wp/m | Custom
NEON36025-SC
Key Features
- Product Dimensions (mm): L1000xW25xH25.
- Bend Direction: Dual
- Lm/m (up to): 1056Lm/m
- Lm/W (up to): 106Lm/W
- Run Length (Max): 5m
- Light Colour: Green, Blue
- Warranty: 3 Years
For CAD files, please sign in
Product Overview

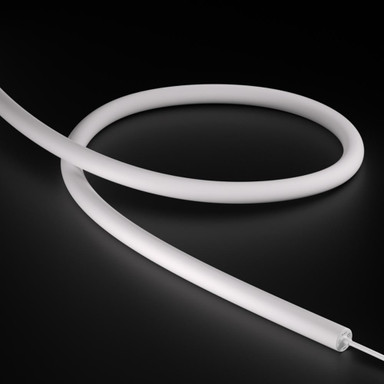

Introducing Our 25x25 Single Colour Circular LED Neon Flex

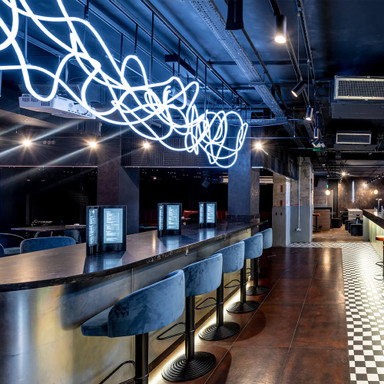

Ideal for a variety of indoor installations, our 25x25 Single Colour Circular LED Neon Flex is constructed from high-quality silicone and boasts exceptional flexibility & durability. Whether you're looking to enhance architectural features, create eye-catching retail displays, or elevate your residential projects, our Professional 25x25 Single Colour Circular LED Neon Flex produces 360° of spotless illumination, creating a unique visual impact.
From architectural elements to decorative lighting, this LED neon flex is engineered to offer unparalleled flexibility, allowing for effortless bending and shaping to accommodate even the most intricate designs and layouts. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Key Features

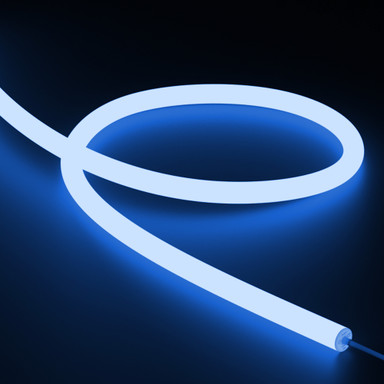

With dual bend flexibility, this LED neon has a minimum bend diameter of 240mm. It offers uniform, shadow-free illumination across all colour temperatures including Green and Blue as is available in 1 metre lengths. The durable, anti-yellowing silicone material is rated at IP65 making it suitable for indoor installations. A 360° beam angle delivers smooth uninterupted light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.
Specifications
- Voltage: 24V DC
- Typ. Power: 10.0W/m
- LEDs per metre: 336 LEDs
- Beam Angle: 360°
- Dimensions: W25mm x H25mm
- Lumens per metre: Up to 1056lm
- Warranty: 3 Years
- IP Rating: IP65 (suitable for indoor use)
Installation
The IP65-rated LED Neon Flex is designed for indoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
Product Specification
| Warranty (Years) | 3 |
| Control Signal - Input | PWM |
| Dimmable | Yes |
| Dimming Type | PWM |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.462 |
| Anti-Yellowing | Yes |
| Body Material | Silicone |
| Ingress Protection (IP) | 65 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 85 |
| Anti-Glare Shield | Yes |
| Colour-Tuneable Light Source | No |
| Lighting Technology Used | LED |
| Mains or Non-Mains | Non-mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Weight (AWG) | 20 |
| Copper Foil Weight (oz) | 3 |
| LED Module Replaceable | true |
| LEDs Per Metre (LEDs/m) | 336 |
| Min. Bend Radius (mm) | 120 |
| Product Height (mm) | 25 |
| Product Weight (g) | 3 |
| Width (mm) | 25 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | Yes |
| Beam Angle (°) | 360 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -25℃ to 55℃ |
| Dimensions LxWxH (mm) | 1000x25x25 |
| Brand | Tagra |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Dual |
| Cable Sheath Material | PVC |
| Cut Points (mm) | 41.67 |
| Max. Run Length (m) | 5 |
| Family Name | D?cor Series |
| CRI | 90 |
| SDCM | 2 |
| Entry Cable Direction | Rear, Side, Bottom |
