Tagra | Decor LED Neon Flex | Dual Circ 25 | 25x25mm | 24V | IP65 | 14.4Wp/m | Custom
NEON36025-1M
Key Features
- Product Dimensions (mm): L1000xW25xH25.
- Bend Direction: Dual
- Lm/m (up to): 950 Lm/m
- Lm/W (up to): 66 Lm/W
- Run Length (Max): 5 m
- CCT (Min/Max): 2300K–5000K
- Warranty: 3 Years
For LDT & CAD files, please sign in
Product Overview
Introducing Our 25x25 Circular LED Neon Flex

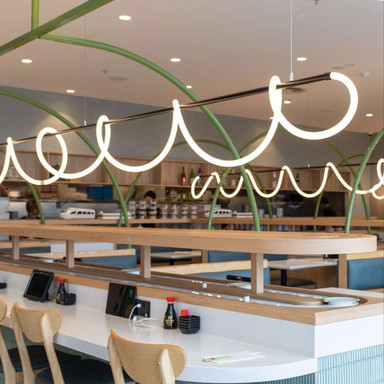

Ideal for a variety of indoor installations, our 25x25 Circular LED Neon Flex is constructed from high-quality silicone and boasts exceptional flexibility & durability. Whether you're looking to enhance architectural features, create eye-catching retail displays, or elevate your residential projects, our Professional 25x25 Circular LED Neon Flex produces 360° of spotless illumination, creating a unique visual impact.
From architectural elements to decorative lighting, this LED neon flex is engineered to offer unparalleled flexibility, allowing for effortless bending and shaping to accommodate even the most intricate designs and layouts. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Key Features
With dual bend flexibility, this LED neon has a minimum bend diameter of 240mm and produces a >90 CRI light output. It offers uniform, shadow-free illumination across all colour temperatures including 2300K, 2700K, 3000K, 4000K and 5000K. The durable, anti-yellowing silicone material is rated at IP65 making it suitable for indoor installations. A 360° beam angle delivers smooth uninterupted light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.
Specifications
- Voltage: 24V DC
- Typ. Power: 14.4W/m
- LEDs per metre: 336 LEDs
- CRI: >90
- Beam Angle: 360°
- Dimensions: W25mm x H25mm
- Lumens per metre: Up to 950lm
- Warranty: 3 Years
- IP Rating: IP65 (suitable for indoor use)
Installation
This IP65-rated LED Neon Flex is designed for indoor applications. Available as a custom order product, the length and cable length can be customised to suit your requirements. For optimal performance and secure placement, we recommend using mounting accessories.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
Product Specification
| Warranty (Years) | 3 |
| Anti-Yellowing | Yes |
| Application Environment | Commercial, Retail, Hospitality |
| Body Material | Silicone |
| Ingress Protection (IP) | 65 |
| Interior or Exterior Use | Interior |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | Yes |
| Input Voltage Min. - Max (V) | 24-24V |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 11.97 |
| LEDs Per Metre (LEDs/m) | 334 |
| Min. Bend Radius (mm) | 120 |
| Product Height (mm) | 25 |
| Width (mm) | 25 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 360 |
| CRI | 90 |
| SDCM | 2 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -25℃ to 55℃ |
| Brand | Tagra |
| Family Name | D?cor Series |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Dual |
| Cable Sheath Material | PVC |
| Entry Cable Direction | Rear, Side, Bottom |
