Tagra | Joinery LED Strip Light | 140 LEDs p/m | 24V | IP65 | 7.2Wp/m | 5 & 20M Reel
PS24-140-65
From £62.40 Inc. VAT
Key Features
- Up to 710 Lumens Per Metre
- IP65 Nano

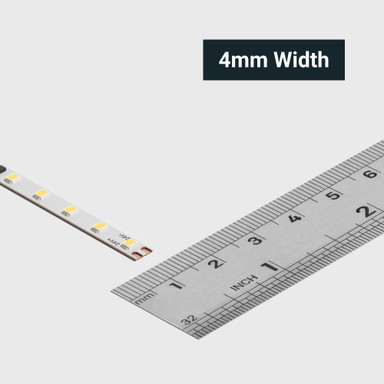

- 4mm Width
- 5 Year Warranty

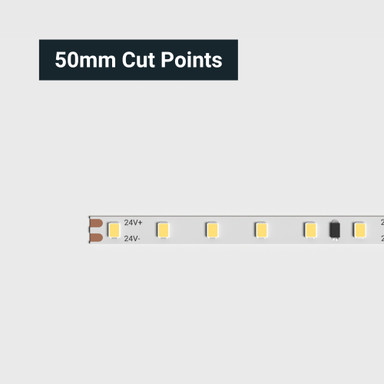

- 50mm Cut Points

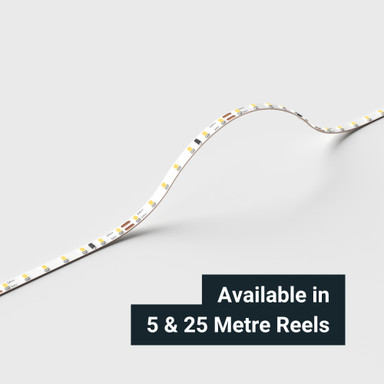

- Available in 5m
- Available in 2700K, 3000K, 4000K & 6000K
- Other specifications available, subject to minimum order. Contact us.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 7.2W/m

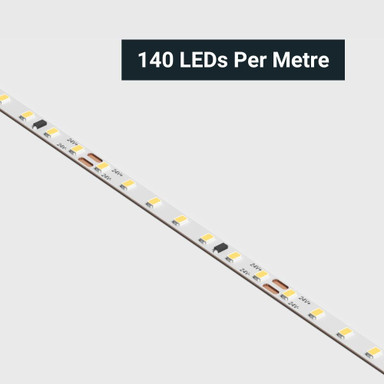

- LEDs per metre: 140 LEDs
- Cut Points: 50mm
- Beam Angle: 120°
- SDCM: <3
- PCB Weight: 2oz
- Lumens: Up to 710lm/m
- Warranty: 5 Years
Information:
Introducing our Professional Micro Width IP65 Nano LED strip light, available in various colour temperatures including 2100K, 2300K, 2700K, 3000K, 4000K and 6500K. Featuring a miniature width of just 4mm, this strip light is flexible and can produce linear light up to 5 metres in length. Perfect for LED lighting where micro width and flexibility is needed. An LED density of 140 LEDs per metre and beam angle of 120° and can produce up to 710 lumens per metre, making it ideal for a variety of professional installations.

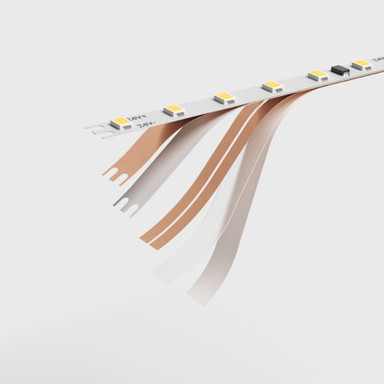

This product showcases IP65 Nano Technology. This manufacturing procedure coats the strip light in a microscopic film which provides a layer of protection for the strip light. This technology produces an IP65 rated coating, while also not altering the size and profile of the strip light. Perfect for installations that require water resistance and micro dimensions and flexibility.
This product is available in 5 metre reels and can be cut at 50mm intervals, making it customisable for a wide range of installations. With a high CRI output of >90 and an SDCM value of <2, this strip light is a efficient and reliable solution for micro width lighting.
It comes with 500mm tinned end cables for easy soldering and installation. Our professional LED Strip Light is manufactured using high quality materials and components and comes with a 5 year warranty as standard.
Installation:

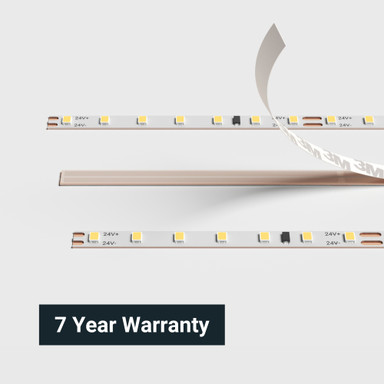

The LED strip light is suitable for indoor and outdoor installations with an IP65 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below is required in order to operate this product:
- 24V LED Driver
Product Specification
Warranty (Years) | 5 |
Max. Run Length (m) | 5 |
Ingress Protection (IP) | 65 |
Body Colour | White |
LEDs Per Metre (LEDs/m) | 140 |
Depth (mm) | 5000 |
Width (mm) | 4 |
Beam Angle (°) | 120 |
CRI | 90 |
Brand | Tagra |
Family Name | Joinery |
Input Voltage Min. - Max (V) | 24-24V |
Cut Points (mm) | 50 |
Product Height (mm) | 2 |
Dimensions LxWxH (mm) | 5000x4x2 |
