Tagra | Pro LED Neon Flex | Dual 20 | 20x20mm | RGB | 24V | IP67 | 15.4Wp/m | Custom

NEONDUAL2020-RGB

Key Features

Up to 310 Lumens per metre
IP67
20mm x 20mm
5 Year Warranty

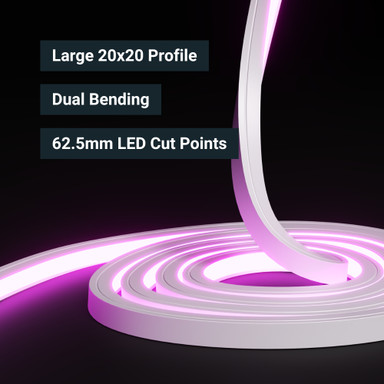

62.5mm Cut Points
Dual Bending
Sold by the metre
Available in RGB

DATA SHEET - NEONDUAL2020-RGBPDF Download

USER MANUAL - LED NEON FLEXPDF Download

Please complete the details of your enquiry below and we'll be in touch shortly.

Your data will be held in accordance with our privacy policy which can be found here.

Add to list

Product Overview

Product Specification

Technical Documents

Customer Reviews

Product Overview

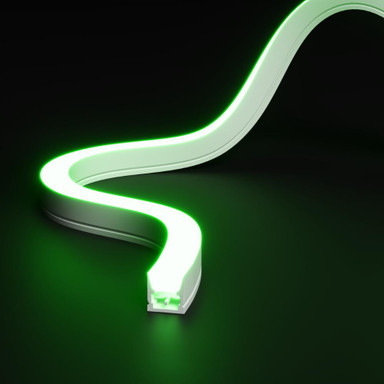

Introducing Our RGB 20x20 Dual Bend LED Neon Flex

Transform your lighting projects with our groundbreaking innovation, the 20x20mm Dual Bend LED Neon Flex. This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.

From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution. Sold by the metre.

Important Installation Note:

The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

Key Features

With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. It offers uniform, shadow-free illumination and is available in sold by the metre lengths. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and sold by the metre and cable length options enable a custom setup. Backed by a 5-year warranty.

Specifications

Voltage: 24V
Max. Power: 15.4W/m
LED Density: 96 LEDs/m
Min. Bend Diameter: 200mm (vertical), 280mm (horizontal)
Lumens per metre: Up to 310lm
Beam Angle: 120°
Cut Points: 62.5mm

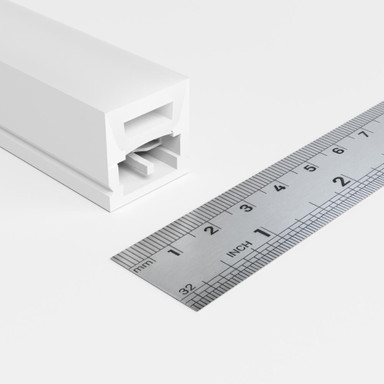

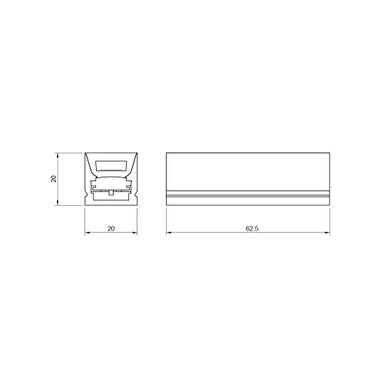

Dimensions: W20mm x H20mm
SDCM: <3
Warranty: 5 Years
IP Rating: IP67 (suitable for indoor and outdoor use)

Installation

The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications. Cable entry is optional depending on your requirements. For optimal performance and secure placement, we recommend using mounting tracks.

Required Products

To operate this product effectively, you’ll need the following:

A compatible 24V LED Driver

Product Specification

Warranty (Years)	5
Control Signal - Input	PWM
Dimmable	Yes
Dimming Type	PWM
Rated Life (Hours)	50000
Max. Run Length (m)	5
Application Environment	Hospitality, Retail, Commercial, Architectural, Landscapes
Body Material	Silicone
Ingress Protection (IP)	67
Interior or Exterior Use	Interior or Exterior
Saltwater Resistant	Yes
Solvent Resistant	Yes
Storage Humidity Max. (°C)	60
UV Resistant	Yes
Working Humidity Max. (°C)	80
Input Voltage Min. - Max (V)	24-24V
Body Colour	White
Cable Length (m)	500
Cable Weight (AWG)	20
Chip Type	SMD5050
Copper Foil Weight (oz)	3
Cut Points (mm)	62.5

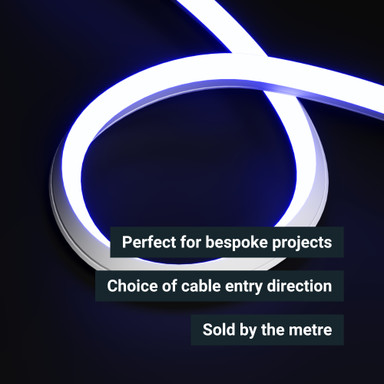

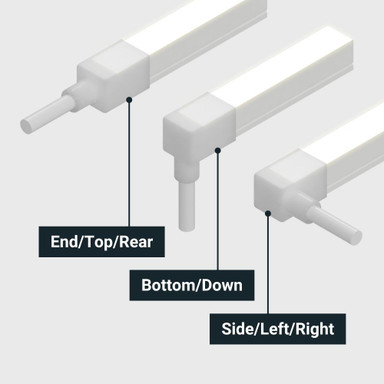

Entry Cable Direction	Rear, Side, Bottom
LED Pitch (mm)	10.42
LEDs Per Metre (LEDs/m)	96
Min. Bend Radius (mm)	100
Product Height (mm)	20
Width (mm)	20
Constant Voltage / Constant Current	CV
Beam Angle (°)	120
CRI	90
Lumens Per Metre (Lm/m)	310
Operating Temperature Min. - Max. (°C)	-20℃ to 45℃
Brand	Tagra
Bend Direction	Dual
Cable Sheath Material	Silicone
Family Name	Pro Series
Dimensions LxWxH (mm)	1000x20x20
Lumens Per Watt (Lm/W)	22
SDCM	3
