Products Tested In-House
Tagra | Pro LED Neon Flex | Dual 16 | Long Run | 16x16mm | 24V | IP67 | 10.5Wp/m | Custom
NEONDUAL1616-LONG
Key Features
- Product Dimensions (mm): W16xH16.
- Bend direction: Dual
- Lm/m (up to): 556Lm/m
- Lm/W (up to): 58Lm/W

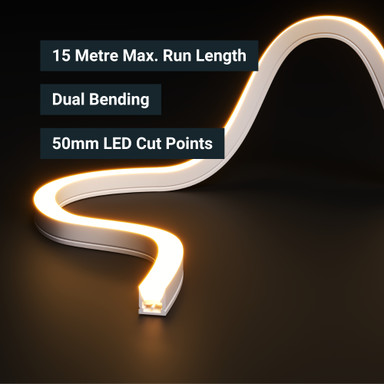

- Run length (max): 15m
- Available colours: 2300K, 2700K, 3000K, 4000K, 6000K
- Warranty: 5 Years
Product Overview
Introducing Our Long Run 16x16 Dual Bend LED Neon Flex

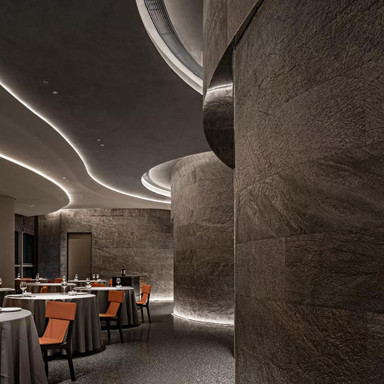

Transform your lighting projects with our groundbreaking innovation—the 16x16mm Dual Bend LED Neon Flex. Capable of 15 metre lengths when powered from one end. This versatile LED solution is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision engineering, it delivers a sleek, high-end finish with consistent illumination around corners and curves.
From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Important Installation Note:
The NEONDUAL1616-LONG has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
Key Features

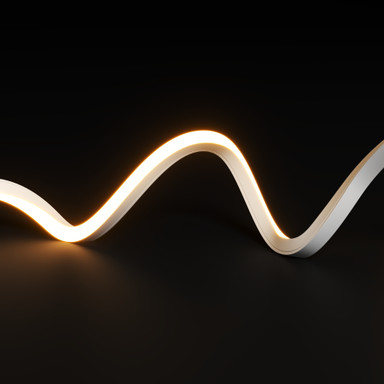

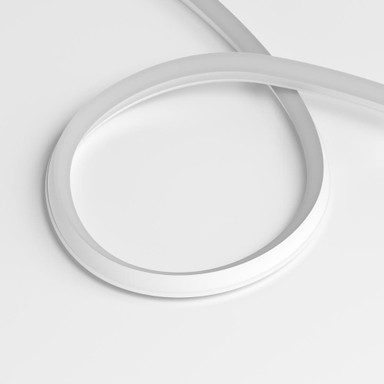

With dual bend flexibility, this LED neon flex bends horizontally and vertically perfect for complex layouts. It offers uniform, shadow-free illumination across all colour temperatures, including 2300K, 2700K, 3000K, 4000K, and 6000K. The durable, anti-yellowing material is suitable for both indoor and outdoor use with an IP67 rating. A 120° beam angle ensures smooth, consistent light, and pre-soldered tails enable quick and easy setup. Backed by a 5-year warranty.
Specifications
- Voltage: 24V
- Max. Power: 10.5W/m
- LED Density: 120 LEDs/m
- Min. Bend Diameter: 120mm (vertical), 280mm (horizontal)
- Lumens per metre: Up to 556lm
- CRI: >90
- Beam Angle: 120°
- Cut Points: 50mm

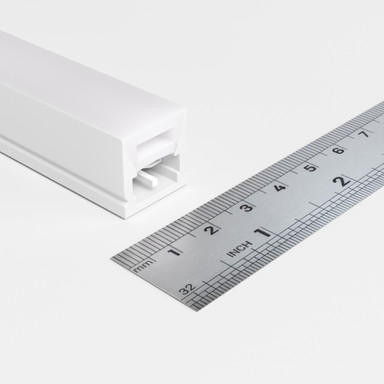

- Dimensions: W16mm x H16mm
- SDCM: <3
- Warranty: 5 Years
- IP Rating: IP67 (suitable for indoor and outdoor use)
Installation
This IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for straightforward installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
A compatible 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Max. Run Length (m) | 15 |
| Anti-Yellowing | Yes |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior or Exterior |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 80 |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Length (m) | 500 |
| Cable Weight (AWG) | 18 |
| Chip Type | SMD 2835 |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 50 |

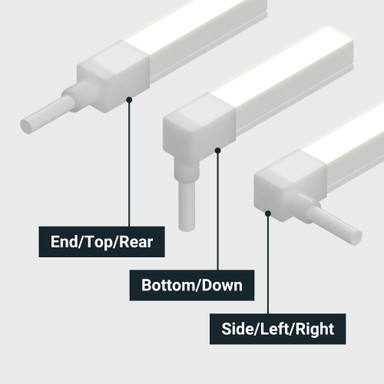

| Entry Cable Direction | Rear, Side, Bottom |
| LED Pitch (mm) | 8.33 |
| LEDs Per Metre (LEDs/m) | 120 |
| Min. Bend Radius (mm) | 120 |
| Product Height (mm) | 16 |
| Width (mm) | 16 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 120 |
| CRI | 90 |
| R9 CRI Value | 50 |
| SDCM | 3 |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Brand | Tagra |
| Bend Direction | Dual |
| Family Name | Pro Series |
| Dimensions LxWxH (mm) | 1000x16x16 |
Technical Documents
