Tagra | Pro LED Neon Flex | Dual 16 | 16x16mm | 2300-6000K | 24V | IP67 | 15.4Wp/m | 5M Kit
NEONDUAL1616-5MKIT-CCT
£184.20 Inc. VAT
Key Features
- Product Dimensions (mm): L5000xW16xH16
- Bend direction: Dual
- Lm/m (up to): 613Lm/m
- Lm/W (up to): 44Lm/W
- Run length (max): 5m
- Available Colours: 2300K - 6000K
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Introducing Our 16x16 CCT Dual Bend LED Neon Flex
Transform your lighting projects with our groundbreaking innovation, the 16x16mm CCT Dual Bend LED Neon Flex. Seperate white LED chips allows you to select colours through the kelvin range. This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.
From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Important Installation Note:
The NEONDUAL1616 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
Kit Includes
- 5 Metres of 16x16 Dual Bend LED Neon Flex
- 1000mm Power Cable attached
- Spare 500mm Power Cable
- 2 Pairs of Rear End Caps
- 10ml Silicone Glue
- Pack of 15 Mounting Brackets
- 300 Grit Emery Paper (140x110mm)
Key Features
With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. Available in 2300K~6000K. It offers uniform, shadow-free illumination across a CCT range. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and pre-soldered tails enable quick setup. Backed by a 5-year warranty.
Specifications
- Voltage: 24V
- Max. Power: 15.4W/m
- LED Density: 240 LEDs/m
- Min. Bend Diameter: 120mm (vertical), 280mm (horizontal)
- Lumens per metre: Up to 613lm
- CRI: >90
- Beam Angle: 120°
- Cut Points: 50mm

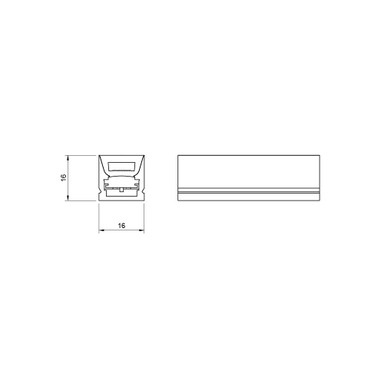

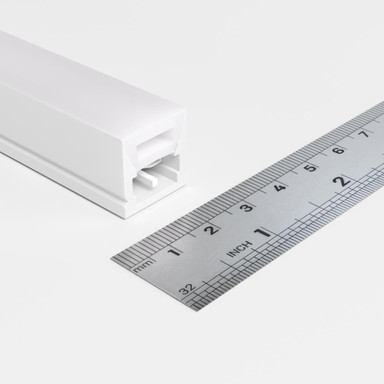

- Dimensions: W16mm x H16mm
- SDCM: <3
- Warranty: 5 Years
- IP Rating: IP67 (suitable for indoor and outdoor use)
Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
- A compatible 24V LED Controller
Product Specification
Warranty (Years) | 5 |
Control Signal - Input | PWM |
Dimmable | Yes |
Dimming Type | PWM |
Rated Life (Hours) | 50000 |
Max. Run Length (m) | 5 |
Anti-Yellowing | Yes |
Application Environment | Hospitality, commercial, residential, signage |
Body Material | Silicone |
Ingress Protection (IP) | 67 |
Interior or Exterior Use | Exterior |
Saltwater Resistant | No |
Solvent Resistant | No |
Storage Humidity Max. (°C) | 60 |
UV Resistant | Yes |
Working Humidity Max. (°C) | 80 |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Both Ends | No |
Cable Length (m) | 1000 |
Cable Weight (AWG) | 18 |
Chip Type | SMD 2835 |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 50 |
Entry Cable Direction | Rear |
LED Pitch (mm) | 8.33 |
LEDs Per Metre (LEDs/m) | 240 |
Product Height (mm) | 16 |
Depth (mm) | 5000 |
Product Weight (g) | 1250 |
Width (mm) | 16 |
Constant Voltage / Constant Current | CV |
End Caps Included | Yes |
Fixings Included | Yes |
Beam Angle (°) | 120 |
CCT Max. (Kelvin) | 6000 |
CCT Min. (Kelvin) | 2300 |
CRI | 90 |
Lumens Per Metre (Lm/m) | 613 |
Lumens Per Watt (Lm/W) | 44 |
R9 CRI Value | 50 |
SDCM | 3 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
Dimensions LxWxH (mm) | 5000x16x16 |
Colour Temperature Min. - Max. (Kelvin) | 2300-6000K |
Brand | Tagra |
Certification | EMC - 2014/30/EU |
Bend Direction | Dual |
Cable Sheath Material | Silicone |
Cable Length (mm) | 1000 |
Family Name | Pro Series |
Total Lumens (Lm) | 3065 |
Technical Documents
