Products Tested In-House
Tagra | Pro LED Neon Flex | Dual 20 | Cut Anywhere | 20x20mm | 24V | IP67 | 15.4p/m | Custom
NEONDUAL2020
Key Features
- Product Dimensions (mm): W20xH20.
- Bend Direction: Dual
- Lm/m (up to): 820Lm/m
- Lm/W (up to): 59Lm/W
- Run Length (Max): 5m
- Available Colours: 2300K, 2700K, 3000K, 4000K, 6000K
- Warranty: 5 Years
Product Overview

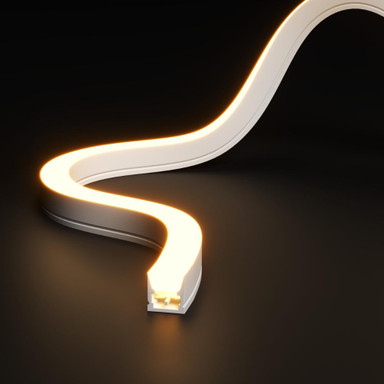

Introducing Our 20x20 Dual Bend LED Neon Flex
Transform your lighting projects with our groundbreaking innovation, the 20x20mm Dual Bend LED Neon Flex. This versatile LED neon flex is engineered for both horizontal and vertical bending applications, making it ideal for intricate and dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent illumination around corners and curves.
From architectural elements to decorative lighting, this LED neon flex redefines versatility with its professional-grade features and performance. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution. Sold by the metre.
Important Installation Note:
The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
Key Features

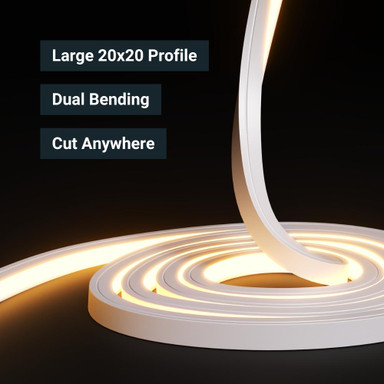

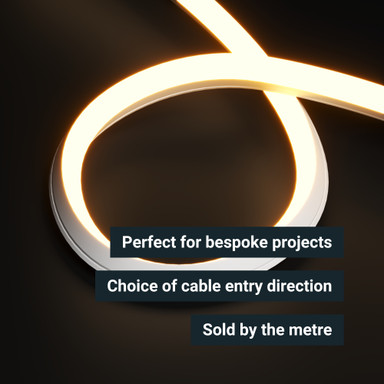

With dual bend flexibility, this LED neon flex bends horizontally and vertically, ideal for complex layouts. It offers uniform, shadow-free illumination across all colour temperatures including 2300K, 2700K, 3000K, 4000K and 6000K. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and sold by the metre and cable length options enable a custom setup. Backed by a 5-year warranty.
Specifications
- Voltage: 24V
- Max. Power: 15.4W/m
- LED Density: 120 LEDs/m
- Min. Bend Diameter: 200mm (vertical), 280mm (horizontal)
- Lumens per metre: Up to 820lm
- CRI: >90
- Beam Angle: 120°

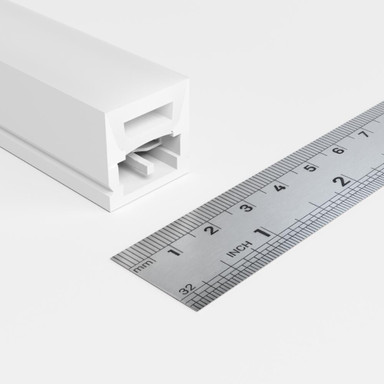

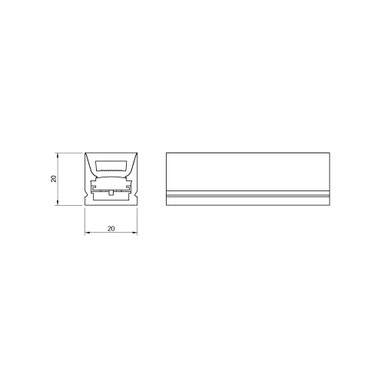

- Dimensions: W20mm x H20mm
- SDCM: <3
- Warranty: 5 Years
- IP Rating: IP67 (suitable for indoor and outdoor use)
Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications. Cable entry is optional depending on your requirements. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Control Signal - Input | PWM |
| Dimmable | Yes |
| Dimming Type | PWM |
| Rated Life (Hours) | 50000 |
| Current Max. Rated (A) | 0.58 |
| Max. Run Length (m) | 5 |
| Anti-Yellowing | Yes |
| Application Environment | Hospitality, commercial, residential, signage |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior or Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 80 |
| Anti-Glare Shield | No |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Weight (AWG) | 20 |
| Chip Type | 2835 |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 0 |

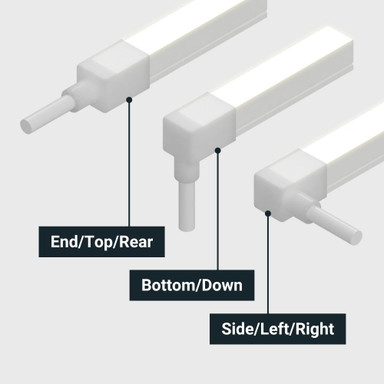

| Entry Cable Direction | Rear |
| LED Module Replaceable | false |
| LED Pitch (mm) | 8.33 |
| LEDs Per Metre (LEDs/m) | 120 |
| Min. Bend Radius (mm) | 100 |
| Product Height (mm) | 20 |
| Width (mm) | 20 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | No |
| Beam Angle (°) | 120 |
| CRI | 90 |
| R9 CRI Value | 61 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 60℃ |
| Brand | Tagra |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Dual |
| Cable Sheath Material | Silicone |
| Family Name | Pro Series |
| Dimensions LxWxH (mm) | 1000x20x20 |
| SDCM | 3 |
Technical Documents
