Tagra | Pro LED Neon Flex | Horizontal 12 | 12x17mm | 24V | IP67 | 10.6Wp/m | 10M Kit
NEONTOP1217/10MKIT
£286.02
From £200.22 Inc. VAT
Key Features
- Up to 460 Lumens per metre
- IP67
- 12mm x 17mm
- 3 Year Warranty
- 50mm Cut Points
- Horizontal Bending
- Available in 10 Metre Kits
- Available in 2700K, 3000K, 4000K, 6000K
- Other specifications available, subject to minimum order. Contact us.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Introducing Our 12x17 Horizontal Bend LED Neon Flex

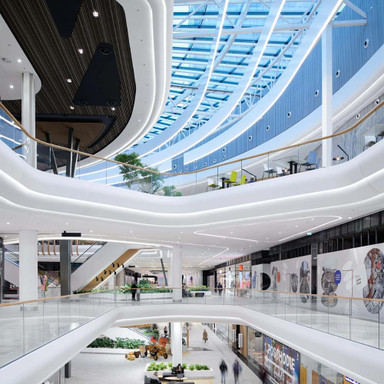

Ideal for a variety of installations, our 12x17 Horizontal Bend LED Neon Flex is constructed with high quality silicone material and used for horizontal applications. Ideal for dynamic designs in architectural features, retail displays, signage, and residential projects. Crafted with durable materials and precision-engineered, it delivers a sleek, high-end finish with consistent non-spotting illumination.
From architectural elements to decorative lighting, this LED neon flex features professional grade components and high quality materials. Designed to meet the demands of lighting designers, electricians, and contractors, it elevates any space with a seamless, professional-grade lighting solution.
Samples available for this product. Contact our team to request a sample.
Kit Includes
- 2x 500mm Power Cable
- 2x Pairs of Top/Bottom End Caps
- 2x Solder-Free End Caps
- 10ml Silicone Glue
- Pack of 28 Mounting Brackets
Key Features
With horizontal bend flexibility, this LED neon has a minimum bend diameter of 120mm and produces a >90 CRI light output. It offers uniform, shadow-free illumination in 6000K as is available in 10 metre kits. The durable, anti-yellowing material is indoor and outdoor-ready with an IP67 rating. A 120° beam angle delivers smooth light, and pre-soldered tails enable quick setup. Comes with a 3 year warranty as standard.
Specifications
- Voltage: 24V DC
- Typ. Power: 9.9W/m
- LEDs per metre: 140 LEDs
- Cut Points: 50mm
- CRI: >90
- Beam Angle: 120°

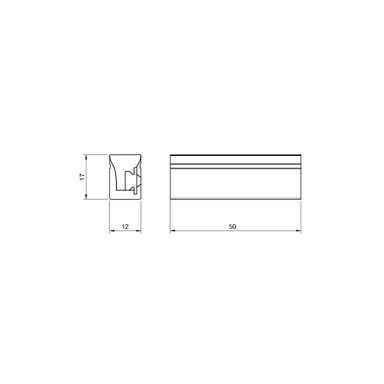

- Dimensions: W12mm x H17mm
- Lumens per metre: Up to 460lm
- Warranty: 3 Years
- IP Rating: IP67 (suitable for indoor and outdoor use)
Installation
The IP67-rated LED Neon Flex is designed for both indoor and outdoor applications, featuring a durable rear-entry cable for easy installation. For optimal performance and secure placement, we recommend using mounting tracks.
Required Products
To operate this product effectively, you’ll need the following:
- A compatible 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Max. Run Length (m) | 10 |
| Application Environment | Hospitability, commercial, signage |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Exterior |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cut Points (mm) | 50 |
| LEDs Per Metre (LEDs/m) | 140 |
| Product Height (mm) | 17 |
| Depth (mm) | 10000 |
| Product Weight (g) | 2270 |
| Width (mm) | 12 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | No |
| Beam Angle (°) | 120 |
| CRI | 90 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 55℃ |
| Dimensions LxWxH (mm) | 10000x12x17 |
| Brand | Tagra |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | Silicone |
| Family Name | Pro Series |
| Cable Both Ends | Yes |
| Cable Length (mm) | 1000 |
| SDCM | 3 |
| Entry Cable Direction | Side |
| Dimming Type | PWM |
Technical Documents
