Tagra | Joinery LED Neon Flex | Micro Trim 5 | Cut Anywhere | 5x6mm | 24V | IP54 | 9.9Wp/m | 5M Kit

Technical Specification

• Application: Bespoke Joinery, Cabinetry & Furniture Lighting
• Beam Angle: 120° for smooth, even light distribution
• Bend Direction: Horizontal

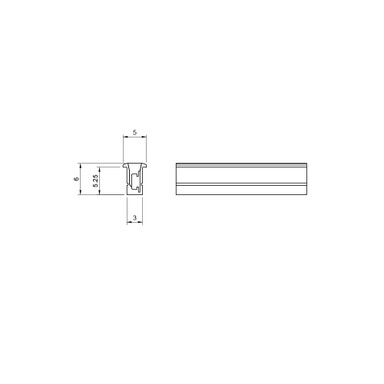

• Dimensions: 5mm x 6mm (±0.2mm tolerance)
• Voltage: DC24V
• Power Consumption: 9.9W/m
• IP Rating: IP54 (Indoor Use)
• Cut Points: Cut anywhere
• Light Output: Up to 311 lm/m
• CRI: 90+
• SDCM: <3
• Max Run Length: 5m
• Installation: Recessed mounting with trim for clean edge finish
• Available Colours: 2300K, 2700K, 3000K, 4000K, 6000K
• Warranty: 5 Years

Introducing Our 3x6mm LED Neon Flex with Trim – Horizontal Bend

Ultra-Slim Precision Lighting. Clean Edge Finish. Seamless Integration.

Due to its compact design, the Micro 5 Neon Flex is more delicate than standard models. Please handle with care during installation to avoid damage to the internal LEDs.

This version includes a trim, ideal for installations where the surface is not perfectly even.

The 5x6mm Horizontal Bend LED Neon Flex features an ultra-slim profile designed to deliver precise, even illumination in compact spaces, making it ideal for bespoke joinery, cabinetry and furniture lighting applications. With its compact 5mm x 6mm recessed design and integrated trim, it installs neatly into cabinetry and shelving while concealing uneven edges for a clean, professional finish.

Its ultra-compact design allows precise, cut-to-length installation for seamless recessed integration with no gaps or waste, delivering smooth, glare-free illumination ideal for cabinetry, furniture, and display lighting.

Kit Contents

• 5m reel with 500mm Cable on both ends
• Additional 500mm Power Cable
• 4 End Caps
• 10ml Silicone Glue
• 15 Mounting Brackets

Installation

The IP54-rated neon flex is designed for indoor applications and features a rear-entry cable with a 500mm length for easy installation. To ensure secure placement and optimal performance, we recommend using mounting tracks. Always account for the ±0.2mm tolerance when routing installation grooves.

Required Products:

To operate this product effectively, you’ll need the following:

• 24V LED Driver
