Tagra | Joinery LED Neon Flex | Mini 4 | 4x10mm | 24V | IP65 | 7.9Wp/m | 5M Kit
NEONTOP410-5MKIT
From £114.00 Inc. VAT
Key Features
- Key Spec Feature: Mini Cut Points, Improved Light Output, Compact Design

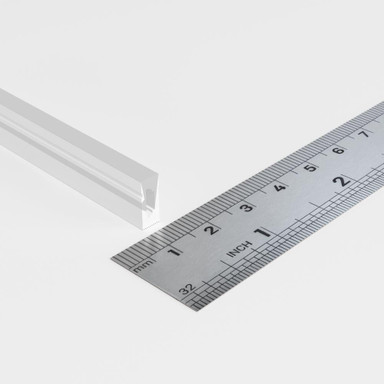

- Dimensions: W4mm x H10mm
- Bend Direction: Horizontal
- LM/M: up to 281
- LM/W: up to 39
- Kit Contents: 5m reel with 500mm rear-entry cable at both ends, extra 500mm cable, 2x sets of end caps, mounting brackets, silicone glue.
- Available Colours: 2700K, 3000K, 4000K
- Warranty: 5 Years (Indoor) / 3 Years (Outdoor)
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Indoor / Permanent
- Bend Direction: Vertical
- Voltage: 24V DC
- Power Consumption: 7.9W/m
- IP Rating: IP65
- Cut Points: 5.95mm
- Light Output: Up to 281 lm/m
- CRI: >90
- SDCM: <3
- Max Run Length: 5m (Single Power Feed)
- Available Colour Temperatures: 2700K, 3000K, 4000K
- Warranty: 5 Years (Indoor) / 3 Years (Outdoor)
Introducing the New & Improved Joinery LED Neon Flex – Mini 4

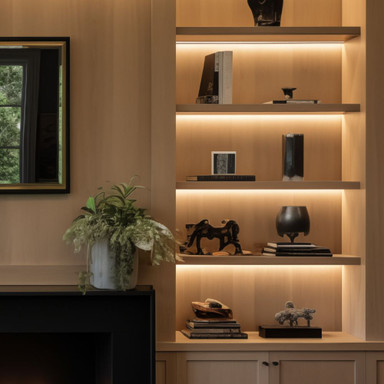

This next-generation Joinery LED Neon Flex | Mini 4 is a slim lighting solution designed specifically for fine detail applications. Perfect for joinery, cabinetry and retail displays, this improved specification offers exceptional light output, greater efficiency, and a more flexible cut-to-length design. Backed by an upgraded 5-year indoor and 3-year outdoor warranty, the Mini 4 now delivers even greater reliability and performance for everyday professional use.
Key Features
- Compact 4x10mm – ideal for tight spaces and fine detailing
- High-efficiency spec – brighter and more energy-efficient than previous specification
- 5.95mm cut points – reduced from 17.86mm for more precise cutting flexibility
- Excellent light quality – CRI >90 and SDCM <3 for natural, consistent output
- Up to 281 lumens per metre
- Durable, flexible silicone housing with anti-yellowing properties
- Rear-entry cable design for discreet, low-profile installation
- IP65 rating
- 5m max run length, powered from one end
Kit Contents
- 5 Metre Reel with 500mm cable on both ends
- 1x Extra 500mm Cable
- 2x Pairs of End Caps
- 15x Mounting Brackets
- 10ml Silicone Glue
- User Manual
Installation Guidance
This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use appropriate mounting accessories. Rear-entry cable allows for flush, clean integration into joinery or decorative features.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Spare End Caps (if needed)
Sample Availability
50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
Product Specification
| Warranty (Years) | 3 |
| Dimmable | No |
| Dimming Type | PMW |
| Current Max. Rated (A) | 1.5 |
| Max. Run Length (m) | 5 |
| Anti-Yellowing | Yes |
| Application Environment | Signage, Retail, Events, Low-Mid Level Facade |
| Body Material | Silicone |
| Ingress Protection (IP) | 65 |
| Interior or Exterior Use | Interior or Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 95 |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 22 |
| Chip Type | SMD2835 |
| Copper Foil Weight (oz) | 4 |
| Cut Points (mm) | 5.95 |
| Entry Cable Direction | Rear |
| LED Pitch (mm) | 5.95 |
| LEDs Per Metre (LEDs/m) | 160 |
| Min. Bend Radius (mm) | 30 |
| Product Height (mm) | 10 |
| Product Weight (g) | 300 |
| Width (mm) | 4 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | Yes |
| Fixings Included | Yes |
| Power Cord Included | Yes |
| Beam Angle (°) | 120 |
| Bin Number | 1 |
| CRI | 90 |
| SDCM | 3 |
| Wavelength (nm) | 590 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | 25℃ to 55℃ |
| Dimensions LxWxH (mm) | 5000x4x10 |
| Family Name | Joinery Series |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | Silicone |
