Tagra | Joinery LED Neon Flex | Mini Colour 6 | 6x12mm | RGB | 24V | IP67 | 13.2Wp/m | 5M Kit
NEON0612-5MKIT-RGB
£141.00 Inc. VAT
Key Features
- Key Spec Feature: Smallest RGB Neon Flex, compact design, mini cut points

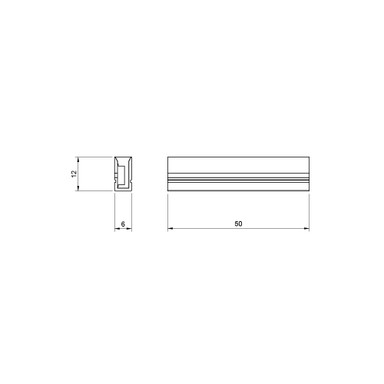

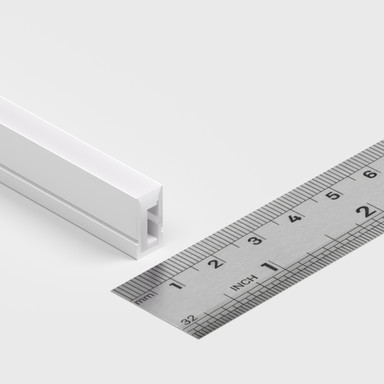

- Dimensions (mm): L5000xW6xH12
- Bend direction: Horizontal
- Lm/m: 125Lm/m
- Lm/W: 10Lm/W
- Run length (max): 5m
- Kit Contents: 5m reel with 500mm rear-entry cable at both ends, extra 500mm cable, 2x sets of end caps, mounting brackets, silicone glue.
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications

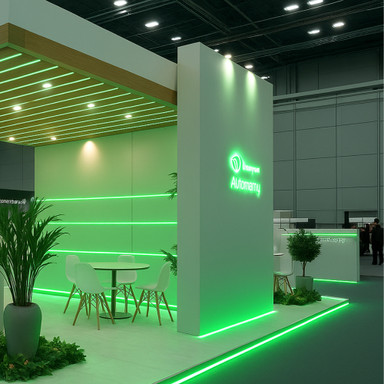

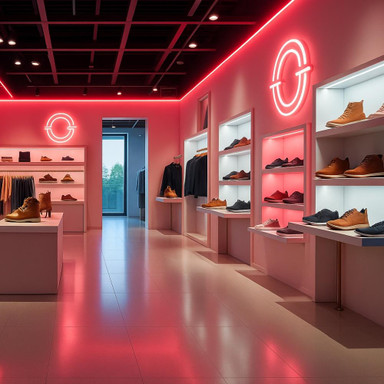

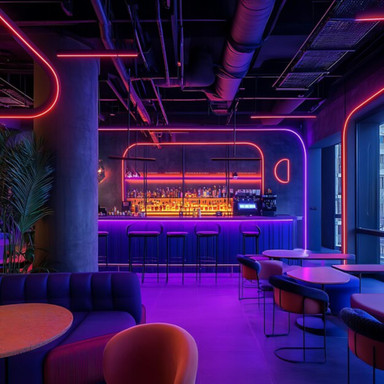

- Application: Signage / Lettering / Events / Retail Displays
- Bend Direction: Horizontal
- Voltage: 24V DC
- Power Consumption: 13.2W/m
- IP Rating: IP67
- Cut Points: 50mm
- Light Output: Up to 125 lm/m
- CRI: 90+
- SDCM: <3
- Max Run Length: 5m
- Available Colours: RGB
- Warranty: 5 Years
Introducing our Joinery LED Neon Flex – Mini Colour 6
The smallest RGB LED Neon Flex in the Joinery Series, the Mini Colour 6 is designed for projects where compact size and vibrant colours are essential. At just 6×12mm with 50mm cut points, it offers flexible, precise installation and delivers a smooth, dot-free line of light for signage, lettering, events, and retail displays. Its flexible form, compact dimensions, and colourful illumination make it the perfect choice for creative accent lighting, adding dynamic colour and enhancing a wide range of environments with professional-grade results.
Key Features
- Compact 6x12mm – Smallest RGB Neon Flex in the Joinery Series
- 50mm cut points for precise cutting flexibility
- Durable, flexible silicone housing with anti-yellowing properties
- Rear-entry cable design for discreet, low-profile installation
- IP67
- 5m max run length, powered from one end
- Backed by a 5-year warranty
Kit Contents
- 5 Metre Reel with 500mm cable on both ends
- 1 × Extra 500mm Cable
- 2 × Pairs of End Caps
- 15 × Mounting Brackets
- 10ml Silicone Glue
- User Manual
Installation Guidance
This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use appropriate mounting accessories. Rear-entry cable allows for flush, clean integration into joinery or decorative features.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Spare End Caps (if needed)
Sample Availability
- 50cm sample sections with 30cm pre-attached cable available upon request. Contact our team via phone, email or live chat to request a sample.
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Max. Run Length (m) | 5 |
| Anti-Yellowing | Yes |
| Application Environment | Retail, Commercial, Signage Displays |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior Or Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| Storage Humidity Max. (°C) | 60 |
| UV Resistant | Yes |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 20 |
| Chip Type | 4040 |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 50 |
| Entry Cable Direction | Rear |
| LED Module Replaceable | false |
| LED Pitch (mm) | 8.33 |
| LEDs Per Metre (LEDs/m) | 120 |
| PCB Type | Flexible |
| Product Height (mm) | 12 |
| Width (mm) | 6 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 120 |
| Bin Number | 1 |
| CRI | 90 |
| Total Lumens (Lm) | 625 |
| Lumens Per Metre (Lm/m) | 125 |
| Lumens Per Watt (Lm/W) | 10 |
| SDCM | 3 |
| Wavelength Blue Max. (nm) | 470 |
| Wavelength Blue Min. (nm) | 460 |
| Wavelength Green Max. (nm) | 525 |
| Wavelength Green Min. (nm) | 515 |
| Wavelength Red Max. (nm) | 650 |
| Wavelength Red Min. (nm) | 630 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 5000x6x12 |
| Brand | Tagra |
| Family Name | Joinery Series |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Wattage (W) | 12 |
| Cable Sheath Material | Silicone |
