Products Tested In-House
Tagra | Zigbee, RF 2.4GHz & Wi-Fi | MicroUSB 5V | Zigbee Gateway | LED Controller | Single Colour - RGB+CCT | IP20
TAG-MULTIGW
£45.00 Inc. VAT
Key Features
- Input voltage: 5 V
- Colour control type: Single Colour, CCT Tunable White, RGB, RGBW, RGBCCT
- Control signal - input: Zigbee, RF 2.4GHz
- Control distance barrier free: 15 m
- IP Rating: 20
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: Micro USB DC 5V | 12-24V DC
- Input Current: <1A
- Connectivity: WiFi, ZigBee or Bluetooth
- Input Signal: RF 2.4GHz
- Signal Channels: WiFi CH1-CH14 | ZigBee CH11-CH26 | Bluetooth CH0-CH39
- IP Rating: IP20

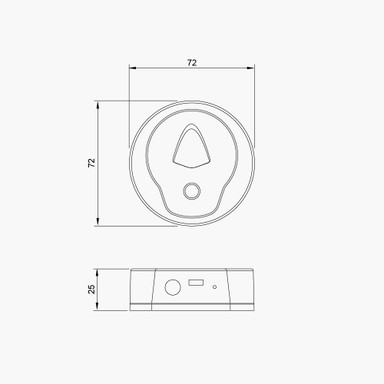

- Dimensions (mm): 72L x 72W x 25H
- Warranty: 5 Years
Introduction:

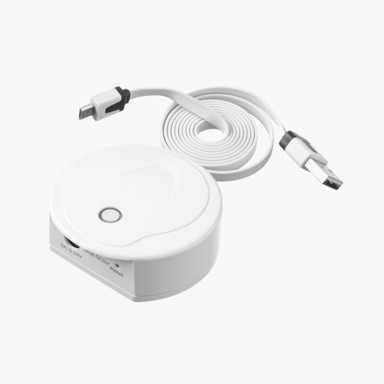

Introducing our Tagra MicroUSB 5V WiFi, ZigBee, Bluetooth LED Gateway. This product has a built-in highly integrated WiFi module, low-power wireless Bluetooth module and low-power wireless ZigBee module as part of our controller range. Comes with a Micro USB 5V cable and also features a 12-24V DC connection for simple plug & play installation. Features an indicator light which aids with pairing and mode selection.
Offers a stable and reliable low power WiFi, Bluetooth and ZigBee signal which can cover a wide area and prevent interference. To strengthen security the device adopts an industry advanced encryption to transmit information.
Tuya Smart App cloud control allows you to realize functions such as adding devices, resetting, third-party control, Bluetooth and ZigBee control and lots more. Also includes voice control compatibility with Amazon and Google. The Tuya Smart App also allows the same local area network to connect with multiple ZigBee LED Gateways.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a power supply via a 5V Micro USB port. Features a mounting location on the rear of the device. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 12-24V DC Plug-In Power Supply or 5V USB Plug
For ZigBee control:
- ZigBee LED Controller
Product Specification
| Adjustable PWM | No |
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 15 |
| DIP Switch | No |
| Rated Life (Hours) | 50000 |
| Application Environment | DOMESTIC |
| Body Material | PC PLASTIC |
| Ingress Protection (IP) | 20 |
| Mounting Type | WALL MOUNTING |
| Storage Humidity Max. (°C) | 90 |
| Working Humidity Max. (°C) | 90 |
| Input Cross-Section of Conductors for Terminals (mm²) | 0.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | MICRO USB SOCKET, DC12-24V POWER SOCKET |
| Body Colour | White |
| DIN Rail Compatible | No |
| Product Height (mm) | 25 |
| Depth (mm) | 72 |
| Product Weight (g) | 49 |
| Width (mm) | 56 |
| SD Card Slot | No |
| Fixings Included | No |
| Power Cord Included | No |
| Screws Included | No |
| Over Current Protection | No |
| Over Temperature Protection | No |
| Over Voltage Protection | No |
| Reverse Polarity Protection | No |
| Short Circuit Protection | No |
| Operating Temperature Min. - Max. (°C) | -10℃ to 55℃ |
| Dimensions LxWxH (mm) | 72x56x25 |
| Brand | Tagra |
| Input Voltage Min. - Max (V) | 5-5V |
| Family Name | ZigBee Control |
| Control Signal - Input | RF 2.4GHz |
