Tagra | Pro LED Neon Flex | Dual 20 | 20x20mm | RGB | 24V | IP67 | 15.4W/m | 5M Kit

Specifications

• Application:  Indoor / Outdoor / Permanent
• Bend Direction: Dual
• Voltage: 24V DC
• Power Consumption: 15.4W/m
• IP Rating: IP67
• Cut Points: 62.5mm
• CRI: >90
• SDCM: <3
• Max Run Length: 5m
• Available Colours: RGB
• Warranty: 5 Years

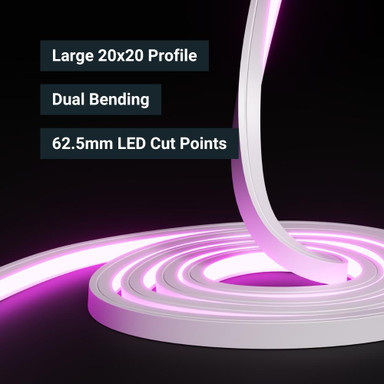

Introducing our Pro LED Neon Flex - Dual 20 RGB

The Pro LED Neon Flex - Dual 20 is our largest dual bend model, designed for both horizontal and vertical bending, it suits complex projects and large light output installations. Measuring 20 × 20mm with a robust IP67 rating, it is engineered for medium to long-term installations for a wide variety of applications such as hospitality, signage, retail, commercial, and façade projects. Offering dynamic RGB colour-changing effects, it delivers impactful, eye-catching illumination. As part of our Pro Series, it offers exceptional reliability, consistent output, and long-lasting performance — the trusted choice for professional applications.

Key Features

• Dynamic colour-changing output – up to 378 lm/m for vibrant effects
• Dual bend flexibility – bends both horizontally and vertically for complex layouts
• Consistent colour – CRI >90 with SDCM <3 for seamless illumination
• Durable silicone housing – anti-yellowing, built for long-term use
• 62.5mm cut points – precise installation for complex RGB designs
• 5 metre run length powered from one end
• Rear-entry 1m cable at each end for ultimate installation flexibility
• IP67-rated for full outdoor weatherproof protection
• Available in RGB
• Backed by a 5-year warranty

Kit Contents

• 5 Metre Reel with 1m rear-entry cable at both ends
• 1 × Extra 500mm cable
• 2 × pairs of End Caps
• 15 × Mounting Brackets
• 10ml Silicone Glue
• User manual

Installation Guidance

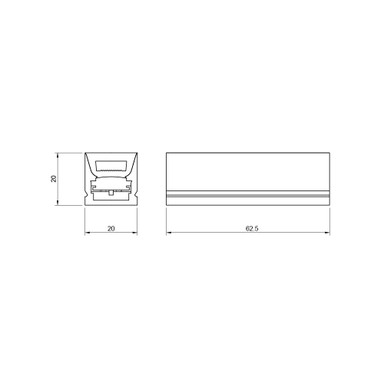

The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.

This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use appropriate mounting tracks and brackets. Rear-entry cabling ensures neat and secure integration.

Required Products

• A compatible 24V LED Driver
• Mounting Accessories (Aluminium Channel, Bendable Channel or Mounting Brackets)
• Spare End Caps (if needed)

Sample Availability

• 50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
