Tagra | Pro LED Neon Flex | Dual 20 | 20x20mm | RGBW | 24V | IP67 | 15.4Wp/m | 5M Kit
NEONDUAL2020-5MKIT-RGBW
From £311.10 Inc. VAT
Key Features
- Key Spec Feature: Maximum light output with dual-bend flexibility

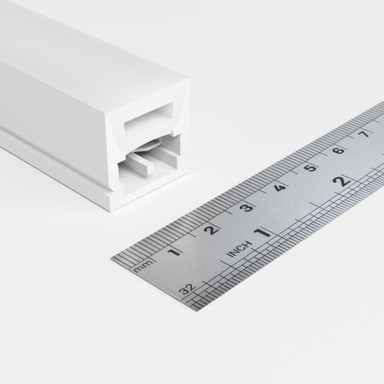

- Dimensions: 20 × 20mm
- Bend Direction: Dual
- LM/M: Up to 480
- LM/W: Up to 34
- Max Run Length: 5m
- Kit Contents: 5m reel with 1m rear-entry cable at both ends, extra 500mm cable, 2 × pairs of end caps, 15 × mounting brackets, 10ml silicone glue, user manual
- Available Colours: RGBW 2300K, RGBW 2700K, RGBW 3000K, RGBW 4000K, RGBW 6000K
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Indoor / Outdoor / Permanent
- Bend Direction: Dual
- Voltage: 24V DC
- Power Consumption: 15.4W/m
- IP Rating: IP67
- Cut Points: 62.5mm
- CRI: >90
- SDCM: <3
- Max Run Length: 5m
- Available Colour Temperatures: RGBW 2300K, RGBW 2700K, RGBW 3000K, RGBW 4000K, RGBW 6000K
- Warranty: 5 Years
Introducing our Pro LED Neon Flex - Dual 20 RGB
The Pro LED Neon Flex - Dual 20 RGBW is our largest dual bend model, designed for both horizontal and vertical bending, it suits complex projects and large light output installations. Measuring 20 × 20mm with a robust IP67 rating, it is engineered for medium to long-term installations for a wide variety of applications such as hospitality, signage, retail, commercial, and façade projects. With dynamic RGB colour-changing capability plus selectable white temperatures from 2300K to 6000K, it provides unmatched flexibility for creating both vibrant effects and precise ambience. As part of our Pro Series, it offers exceptional reliability, consistent output, and long-lasting performance — the trusted choice for professional applications.
Key Features
- Versatile RGB + White output – up to 480 lm/m for vibrant or ambient effects

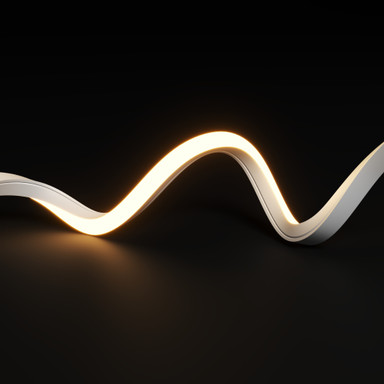

- Dual bend flexibility – bends both horizontally and vertically for advanced layouts
- Consistent colour – CRI >90 with SDCM <3 for seamless illumination
- Durable silicone housing – anti-yellowing, built for long-term use
- 62.5mm cut points – precise installation for RGBW applications
- 5 metre run length powered from one end
- Rear-entry 1m cable at each end for ultimate installation flexibility
- IP67-rated for full outdoor weatherproof protection
- Available in RGBW 2300K, RGBW 2700K, RGBW 3000K, RGBW 4000K, RGBW 6000K
- Backed by a 5-year warranty
Kit Contents
- 5 Metre Reel with 1m rear-entry cable at both ends
- 1 × Extra 500mm cable
- 2 × pairs of End Caps
- 15 × Mounting Brackets
- 10ml Silicone Glue
- User manual
Installation Guidance
The NEONDUAL2020 has a ±0.5mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
This product must be installed by a suitably competent person and in accordance with IEE Wiring Regulations and Building Regulations. Please consult the installation manual before starting work. For best results, use appropriate mounting tracks and brackets. Rear-entry cabling ensures neat and secure integration.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel, Bendable Channel or Mounting Brackets)
- Spare End Caps (if needed)
Sample Availability
- 50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
Product Specification
Warranty (Years) | 5 |
Dimmable | Yes |
Dimming Type | PWM |
Rated Life (Hours) | 50000 |
Current Max. Rated (A) | 0.58 |
Max. Run Length (m) | 5 |
Anti-Yellowing | Yes |
Application Environment | Hospitality, commercial, residential, signage |
Body Material | Silicone |
Ingress Protection (IP) | 67 |
Interior or Exterior Use | Interior or Exterior |
Saltwater Resistant | Yes |
Solvent Resistant | Yes |
Storage Humidity Max. (°C) | 60 |
UV Resistant | Yes |
Working Humidity Max. (°C) | 80 |
Input Voltage Min. - Max (V) | 24-24V |
Cable Both Ends | Yes |
Cable Length (mm) | 1000 |
Cable Weight (AWG) | 20 |
Chip Type | 5050 |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 62.5 |
Entry Cable Direction | Rear |
LED Module Replaceable | false |
LED Pitch (mm) | 10.42 |
LEDs Per Metre (LEDs/m) | 96 |
Min. Bend Radius (mm) | 100 |
PCB Type | Flexible |
Product Height (mm) | 20 |
Product Weight (g) | 2500 |
Width (mm) | 20 |
Constant Voltage / Constant Current | CV |
Beam Angle (°) | 120 |
CRI | 90 |
Total Lumens (Lm) | 2250 |
SDCM | 3 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |

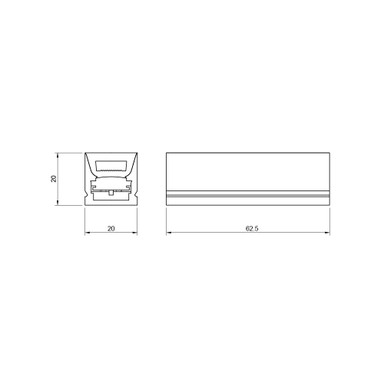

Dimensions LxWxH (mm) | 5000x20x20 |
Brand | Tagra |
Family Name | Pro Series |
Bend Direction | Dual |
Cable Sheath Material | Silicone |
