Tagra | Pro LED Neon Flex | Horizontal 12 | 12x17mm | 24V | IP67 | 11Wp/m | 30M Reel
NEON1217-30M
From £717.54 Inc. VAT
Key Features

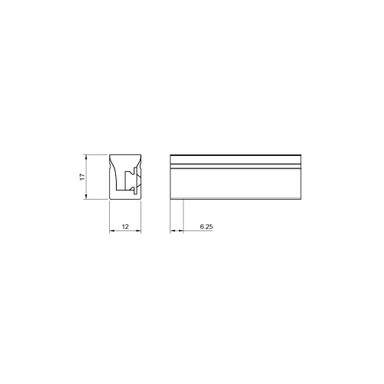

- Product Dimensions (mm): L30000xW12xH17.
- Bend direction: Horizontal
- Lm/m (up to): 795Lm/m
- Lm/W (up to): 80Lm/W
- Run length (max): 10m
- Available Colours: 2200K, 2700K, 3000K, 4000K
- Warranty: 7 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Indoor / Outdoor / Permanent
- Bend Direction: Horizontal
- Voltage: 24V DC
- Power Consumption: 11W/m
- IP Rating: IP67
- Cut Points: 6.25mm
- CRI: >90
- SDCM: <2
- Max Run Length: 10m (Single Power Feed)
- Available Colour Temperatures: 2200K, 2700K, 3000K, 4000K
- Warranty: 7 Years
Important Note: This product features updated specifications and improved brightness. It should not be mixed with previous versions of the Pro Neon Flex Horizontal 12, as doing so may result in visible inconsistencies in appearance. This listing is for the 30m reel only - offering the same specifications and maximum run length as the 10m kit, but in a more efficient and cost-effective format for larger or bulk installations.

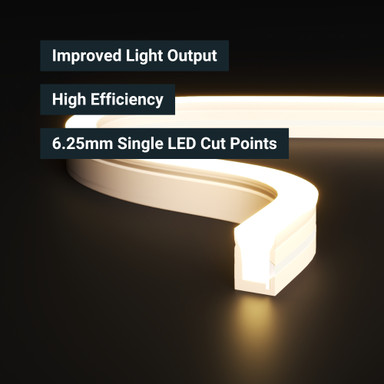

Introducing the New & Improved Pro LED Neon Flex – Horizontal 12
This next-generation Pro LED Neon Flex, available in both horizontal and vertical bending options, is a professional-grade lighting solution from the trusted Pro Series—engineered for enhanced performance, improved efficiency, and exceptional long-term durability. Ideal for medium-to-long-term applications in hospitality, signage, retail displays, office interiors, architectural lighting, and mid-scale façade projects, it features a brighter, energy-efficient output, upgraded build quality, and structural innovations. Fully weatherproof to IP67 for indoor and outdoor use, it offers lighting professionals a reliable and versatile choice backed by a 7-year warranty.

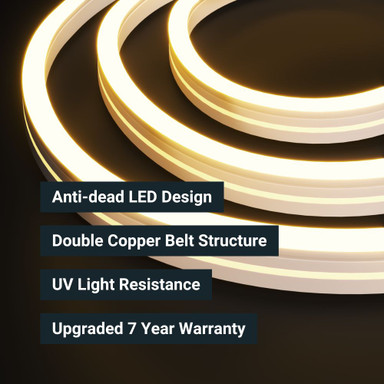

Key Features
- High-efficiency output – brighter and more energy-efficient
- Robust double copper belt for superior performance
- No dead spots – single LED failure will not affect overall illumination
- Anti-breakage, anti-yellowing, and anti-twist design
- Premium silicone with upgraded light transmission
- CRI >90 with SDCM <2 for vibrant, consistent colour
- Flexible 6.25mm cut points – for enhanced precision
- 10 metre run length powered from one end
- Rear-entry 1m cable at each end for ultimate installation flexibility
Installation Guidance
This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to starting any work. For best results, use suitable mounting channels and brackets. Rear-entry cable design ensures neat and secure placement.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Spare End Caps (if needed)
Sample Availability
50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
Product Specification
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Current Max. Rated (A) | 4 |
| Max. Run Length (m) | 10 |
| Anti-Yellowing | Yes |
| Application Environment | Signage, Retail, Events, Low-Mid Level Facade |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Saltwater Resistant | Yes |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | Yes |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Both Ends | Yes |
| Cable Length (mm) | 1000 |
| Cable Weight (AWG) | 18 |
| Chip Type | SMD 2835 |
| Copper Foil Weight (oz) | 6 |
| Cut Points (mm) | 6.25 |
| Entry Cable Direction | Side |
| LED Pitch (mm) | 6.25 |
| LEDs Per Metre (LEDs/m) | 160 |
| Product Height (mm) | 17 |
| Width (mm) | 12 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 120 |
| Bin Number | 30G |
| CRI | 90 |
| Lumens Per Metre (Lm/m) | 795 |
| Lumens Per Watt (Lm/W) | 80 |
| SDCM | 2 |
| Electrical Safety Class | III |
| Dimensions LxWxH (mm) | 30000x12x17 |
| Brand | Tagra |
| Family Name | Pro Series |
| Certification | EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | Silicone |
