Tagra | Pro LED Neon Flex | Vertical 13 | 13x12mm | CCT Tunable White | 24V | IP67 | 14.8W/m | 30M Reel
NEON1312-30M-CCT
£818.68 Inc. VAT
Key Features
- Product Dimensions (mm): L30000xW13xH12
- Bend Direction: Vertical
- Lm/m (Up To): 1300Lm/m
- Lm/W (Up To): 100Lm/W
- Run Length (Max): 5m
- CCT (Min/Max): 2200K – 6000K
- Warranty: 7 Years
Need a larger quantity? Contact us for bespoke pricing.
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75*
- Next Day DeliveryFrom £6.99
- Returns14 Day Policy
Product Overview
Important Note: This listing is for the 30m reel only - offering the same specifications and maximum run length as the 10m kit, but in a more efficient and cost-effective format for larger or bulk installations.
High Brightness. Robust Construction. Professional Performance.

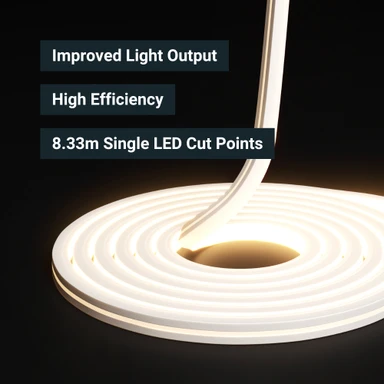

Introducing the New Pro LED Neon Flex – 1312 CCT

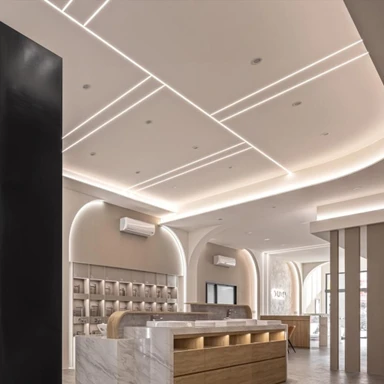

This next-generation Pro LED Neon Flex 1312 CCT is a professional-grade tuneable white lighting solution from the trusted Pro Series, engineered for enhanced performance, exceptional colour consistency and long-term durability. Delivering an adjustable colour temperature range from 2200K to 6000K, it provides the flexibility to create everything from warm ambient lighting to crisp daylight illumination, making it ideal for hospitality, retail, architectural features, office interiors and premium signage applications. Fully weatherproof to IP67 for indoor and outdoor use, it offers lighting professionals a reliable and versatile solution backed by a 7-year warranty.
Key Features
• High-efficiency output – brighter and more energy-efficient

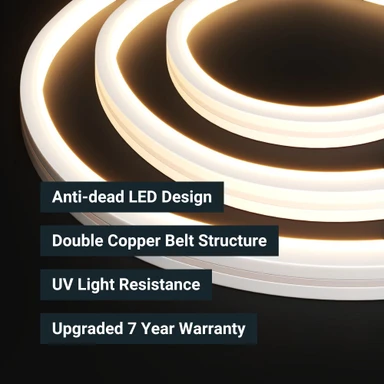

• Robust double copper belt for superior performance
• No dead spots – single LED failure will not affect overall illumination
• Anti-breakage, anti-yellowing, and anti-twist design
• Premium silicone with upgraded light transmission
• CRI >90 with SDCM <2 for vibrant, consistent colour
• Flexible 8.33mm cut points – for enhanced precision
• 10 metre run length powered from one end
• Bottom-entry 2m cable at each end for ultimate installation flexibility
Kit Contents
• 10 metre reel with 2m bottom-entry cable at both ends
• 1x Extra 500mm Cable
• 2x Pairs of End Caps
• 30x Mounting Brackets
• 10ml Silicone Glue
• User Manual
Installation Guidance
This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to starting any work. For best results, use suitable mounting channels and brackets.
Required Products
• A compatible 24V LED Driver
• Mounting Accessories (Aluminium Channel or Mounting Clips)
• Spare End Caps (if needed)
Sample Availability
50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
Product Specification
| Warranty (Years) | 7 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Current Max. Rated (A) | 0.594 |
| Max. Run Length (m) | 5 |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior or Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| Storage Humidity Max. (°C) | 100 |
| UV Resistant | Yes |
| Working Humidity Max. (°C) | 100 |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Both Ends | Yes |
| Cable Length (mm) | 1000 |
| Cable Weight (AWG) | 20 |
| Chip Type | SMD2835 |
| Connector Type | None |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 8.33 |
| Entry Cable Direction | Right |
| LED Module Replaceable | false |
| LED Pitch (mm) | 4.166666667 |
| LEDs Per Metre (LEDs/m) | 240 |
| Min. Bend Radius (mm) | 60 |
| PCB Type | Flexible |
| Product Height (mm) | 12 |
| Product Weight (g) | 6650 |
| Width (mm) | 13 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | No |
| Bin Number | 2 |
| CCT (Kelvin) | 0 |
| CCT Max. (Kelvin) | 6000 |
| CCT Min. (Kelvin) | 2200 |
| CRI | 90 |
| Total Lumens (Lm) | 39000 |
| Lumens Per Metre (Lm/m) | 1300 |
| Lumens Per Watt (Lm/W) | 100 |
| R9 CRI Value | 82.27 |
| SDCM | 3 |
| Wavelength (nm) | 587.9 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -25℃ to 50℃ |
| Dimensions LxWxH (mm) | 30000x13x12 |
| Colour Temperature Min. - Max. (Kelvin) | 2200-6000K |
| Brand | Tagra |
| Bend Direction | Vertical |
| Cable Sheath Material | Silicone |
Technical Documents
