Tagra | Pro LED Neon Flex | Vertical 13 | 13x12mm | RGB | 24V | IP67 | 13.2Wp/m | 10M Kit
NEON1312-10MKIT-RGB
£295.80 Inc. VAT
Key Features
- Key Spec Feature: Strong outdoor resilience, robust structure & CSP chip technology

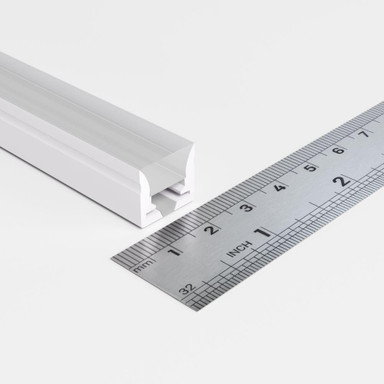

- Dimensions: W13mm x H12mm
- Bend Direction: Vertical
- LM/M: 293
- LM/W: 25
- Kit Contents: 10m reel with 2m rear-entry cable at both ends, exta 500mm cable, 2x sets of end caps, mounting brackets, silicone glue.
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Indoor / Outdoor / Permanent
- Bend Direction: Vertical
- Voltage: 24V DC
- Power Consumption: 13.2W/m
- IP Rating: IP67
- Environment Temperature: -25℃ ~ 50℃
- Cut Points: 50mm
- Max Run Length: 10m (Power Feed at both ends)
- Warranty: 5 Years
Important Note: This product features updated specifications and improved brightness. It should not be mixed with previous versions of Neon Flex, as doing so may result in visible inconsistencies in appearance.
Introducing the New & Improved Pro LED Neon Flex – Vertical 13 RGB

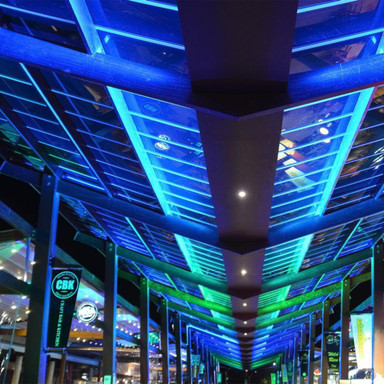

This next-generation Pro LED Neon Flex, available in both horizontal and vertical bending options, is a professional-grade lighting solution from the trusted Pro Series, delivering powerful full-spectrum colour control with enhanced flexibility, performance, and durability for demanding commercial installations. Ideal for hospitality, signage, retail displays, entertainment venues, and architectural features, it features advanced CSP chip technology and a PET-reinforced structure—offering improved colour blending, higher efficiency, and exceptional resilience in extreme temperatures and high-UV environments. Stronger, brighter, and more reliable than ever, it’s backed by a 5-year warranty to ensure dependable performance where it matters most.
Key Features
- Full-spectrum RGB output with smooth, seamless colour blending

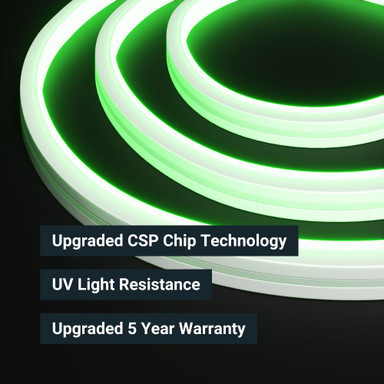

- CSP chip technology – ultra-compact, heat-resistant LEDs and resistors for enhanced strength and efficiency
- PET structural reinforcement – highly resistant to twisting, bending, and mechanical stress
- Optimised internal structure for improved energy efficiency

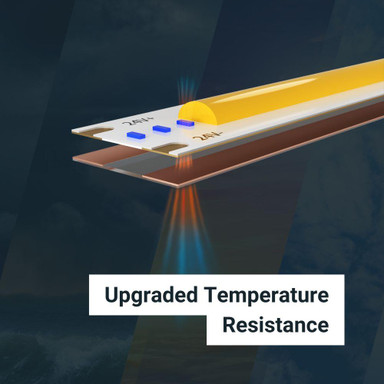

- Reliable in extreme environments – performs consistently from –40°C to 60°C

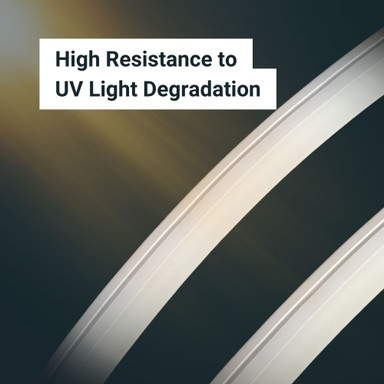

- UV-resistant – built to withstand high-intensity UV exposure
- 50mm cut points for maximum design and installation flexibility
- Rear-entry 2m cable at both ends for easy, versatile installation
- IP67-rated for full outdoor weatherproof protection
Kit Contents
- 10 metre reel with 2m rear-entry cable at both ends
- 1x Extra 500mm Cable
- 2x Pairs of End Caps
- 30x Mounting Brackets
- 10ml Silicone Glue
- User Manual
Installation Guidance
This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the provided installation guide before starting work. For optimal results and safety, use compatible mounting channels and brackets. Rear-entry cabling allows for clean, hidden installation.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Spare End Caps (if needed)
Sample Availability
50cm sample sections with 30cm pre-attached cable available upon request. Contact our team to request a sample.
Product Specification
Warranty (Years) | 5 |
Dimmable | Yes |
Dimming Type | PMW |
Current Max. Rated (A) | 2.75 |
Max. Run Length (m) | 5 |
Anti-Yellowing | Yes |
Application Environment | Signage, Retail, Events, Low-Mid Level Facade |
Body Material | Silicone |
Ingress Protection (IP) | 67 |
Interior or Exterior Use | Interior or Exterior |
Saltwater Resistant | Yes |
Solvent Resistant | No |
Storage Humidity Max. (°C) | 70 |
UV Resistant | Yes |
Working Humidity Max. (°C) | 95 |
Colour-Tuneable Light Source | No |
Lighting Technology Used | Silicone Neon |
Input Voltage Min. - Max (V) | 24-24V |
Body Colour | White |
Cable Both Ends | Yes |
Cable Length (mm) | 2000 |
Cable Weight (AWG) | 20 |
Chip Type | CSP LED |
Copper Foil Weight (oz) | 3 |
Cut Points (mm) | 50 |
Entry Cable Direction | Rear |
LED Pitch (mm) | 50 |
LEDs Per Metre (LEDs/m) | 360 |
Min. Bend Radius (mm) | 60 |
Product Height (mm) | 12 |
Product Weight (g) | 1720 |
Width (mm) | 13 |
Constant Voltage / Constant Current | CV |
End Caps Included | Yes |
Power Cord Included | Yes |
Beam Angle (°) | 120 |
Bin Number | 1 |
CRI | 90 |
Total Lumens (Lm) | 3050 |
Lumens Per Metre (Lm/m) | 293 |
Lumens Per Watt (Lm/W) | 25 |
SDCM | 2 |
Wavelength (nm) | 469.9 |
Electrical Safety Class | III |
Operating Temperature Min. - Max. (°C) | -25℃ to 50℃ |
Dimensions LxWxH (mm) | 10000x13x12 |
Brand | Tagra |
Family Name | Pro Series |
Certification | EMC - 2014/30/EU |
Bend Direction | Vertical |
Cable Sheath Material | Silicone |
