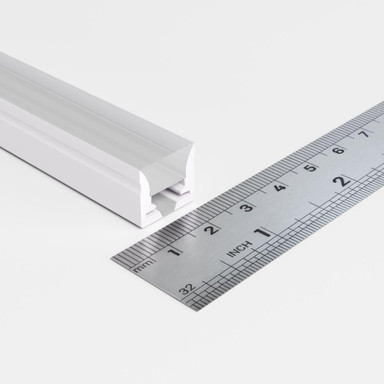

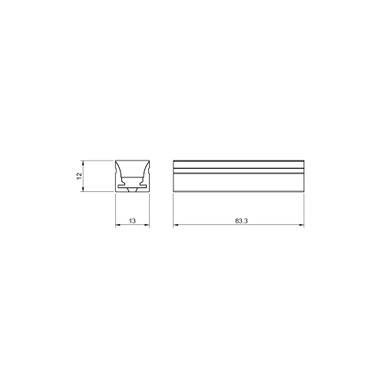

Tagra | Pro LED Neon Flex | Vertical 13 | 13x12mm | RGBW | 24V | IP67 | 13.2W/m | 10M Kit

Specifications

• Application: Indoor / Outdoor / Permanent
• Bend Direction: Vertical
• Voltage: 24V DC
• Power Consumption: 13.2W/m
• IP Rating: IP67
• Cut Points: 83.33mm
• Environment Temperature: -25℃ ~ 50℃
• CRI: >90
• SDCM: <2
• Max Run Length: 10m (Power Feed at both ends)
• Available Variants: RGBW 2700K, RGBW 3000K, RGBW 4000K
• Warranty: 5 Years

Important Note: This product features updated specifications and improved brightness. It should not be mixed with previous versions of Neon Flex, as doing so may result in visible inconsistencies in appearance.

Introducing the New & Improved Pro LED Neon Flex – Vertical 13 RGBW

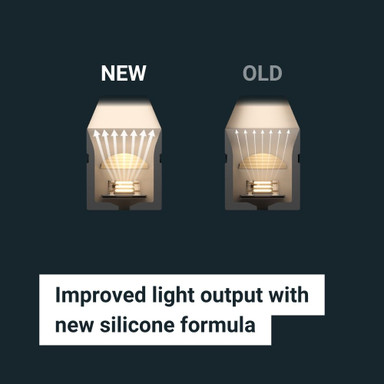

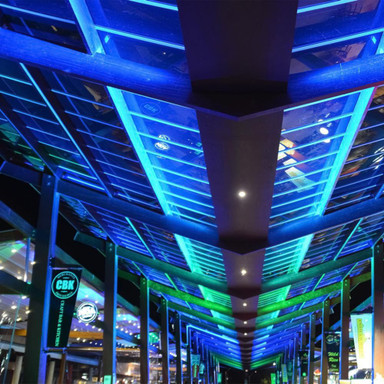

This next-generation Pro LED Neon Flex, available in both horizontal and vertical bending options, is a professional-grade lighting solution from the trusted Pro Series, delivering versatile, colour-rich RGBW output with a dedicated white channel for balanced tones and accurate lighting in any environment. Ideal for retail displays, hospitality venues, themed environments, signage, and architectural features, it combines CSP chip technology, a PET-reinforced base, and an upgraded silicone body to ensure exceptional brightness, structural durability, and resilience in harsh weather and high-UV conditions. Purpose-built for demanding commercial applications, both indoors and outdoors, it’s backed by a 5-year warranty for long-term performance and peace of mind.

Key Features

• RGBW configuration with dedicated white channel for refined tone control and smooth, accurate colour mixing

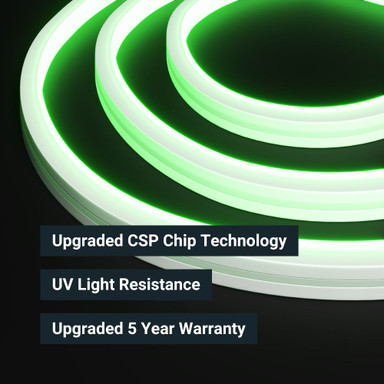

• CSP chip technology – ultra-compact, heat-resistant LEDs and resistors for enhanced strength and efficiency
• PET structural reinforcement – highly resistant to twisting, bending, and mechanical stress
• Optimised internal structure for improved energy efficiency
• Exceptional colour quality – CRI >90 and SDCM <2 for consistent, professional-grade lighting

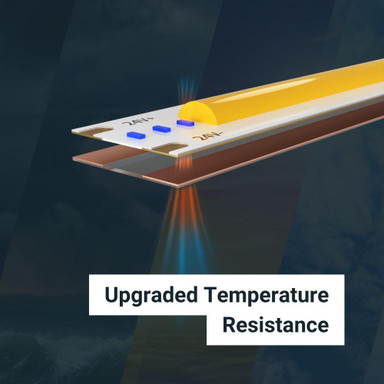

• Reliable in extreme environments – performs consistently from –40°C to 60°C

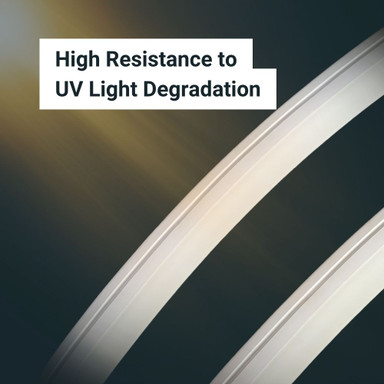

• UV-resistant – built to withstand high-intensity UV exposure

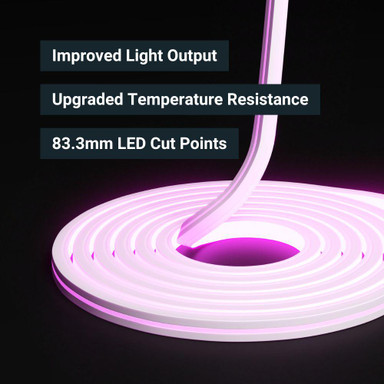

• 83.33mm cut points for design and installation flexibility
• Bottom-entry 2m cable at both ends for easy, versatile installation
• IP67-rated for full outdoor weatherproof protection

Kit Contents

• 10 metre reel with 2m bottom-entry cable at both ends
• 1x Extra 500mm Cable
• 2x Pairs of End Caps
• 30x Mounting Brackets
• 10ml Silicone Glue
• User Manual

Installation Guidance

This product must be installed by a suitably competent person and in full compliance with IEE Wiring Regulations and Building Regulations. Please refer to the installation manual before starting work. For optimal positioning and long-term performance, use recommended mounting accessories. Rear-entry cabling provides a seamless, low-profile finish.

Required Products

• A compatible 24V LED Driver
• Mounting Accessories (Aluminium Channel or Mounting Clips)
• Spare End Caps (if required)

Sample Availability

50cm RGBW sample sections with 30cm pre-attached cable are available. Contact our team to request a sample.
