Tagra | Pro LED Neon Flex | Vertical 13 | Sauna | 13x12mm | RGB | 24V | IP67 | 5.5Wp/m | Custom
NEON1312HT-1M-RGB
Key Features
- Key Spec Feature: High-temperature and humidity resistance for demanding environments

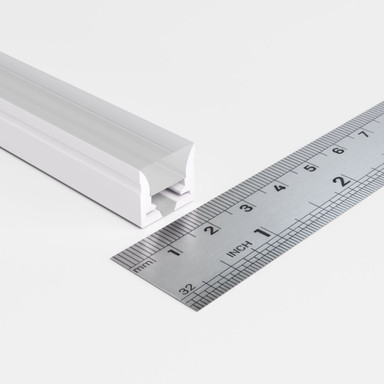

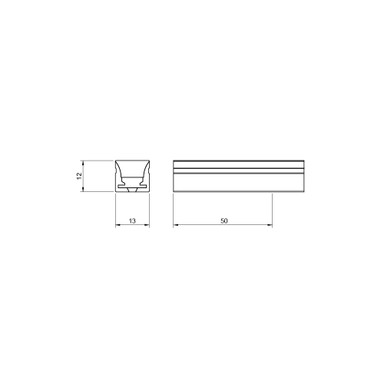

- Product Dimensions (mm): W13xH12
- Bend direction: Vertical
- Lm/m (up to): 158
- Lm/W (up to): 22
- Run length (max): 5m
- Available Colours: RGB
- Warranty: 5 Years
Product Overview
Specifications
- Application: Indoor / Outdoor / Permanent – Extreme Temperatures & Conditions
- Bend Direction: Vertical
- Voltage: 24 V DC
- Power Consumption: 5.5W/m
- IP Rating: IP67
- Cut Points: 50 mm
- SDCM: <3
- Max Run Length: 5m
- Available Colours: RGB
- Warranty: 5 Years

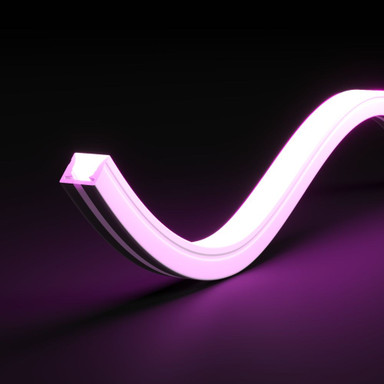

Introducing the Pro LED Neon Flex – Vertical 13 SAUNA RGB

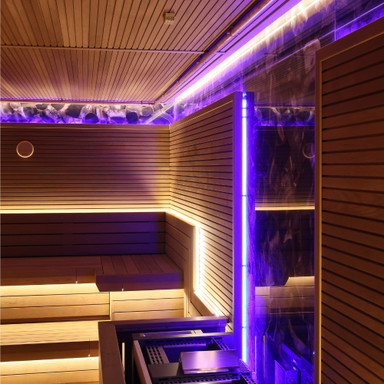

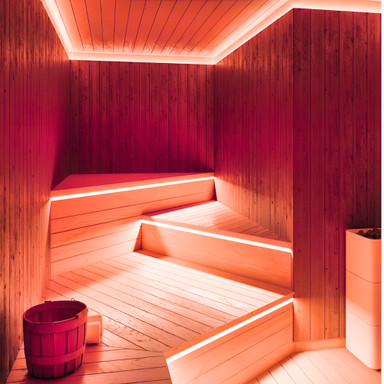

Available in both Horizontal 12 and Vertical 13, this professional-grade lighting solution from the trusted Pro Series is specifically engineered to perform reliably in extreme temperatures and in conditions with elevated humidity levels. Ideal for custom sauna, steam, spa, ice-room, wellness, and mid-scale high-humidity façade projects where dynamic RGB lighting effects are required.It offers lighting professionals a durable, versatile, and fully weatherproof choice backed by a 5-year warranty. This Neon Flex is sold by the metre (call to order) – including custom cable direction and length, depending on project requirements. Power can be supplied from either one or both ends depending on installation needs.
Key Features

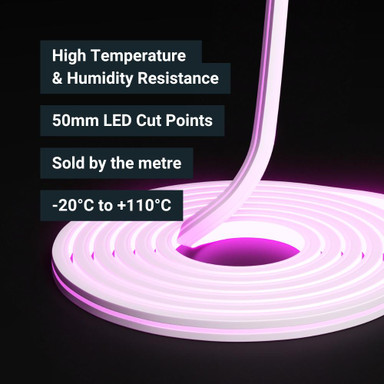

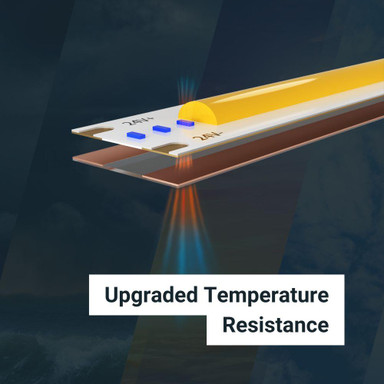

- High-temperature and humidity resistance for demanding environments (operating range: -20°C to +110°C)
- Full RGB colour mixing for dynamic lighting effects
- Ultra-high structural strength for enhanced durability
- Anti-breakage, anti-yellowing and anti-twist design

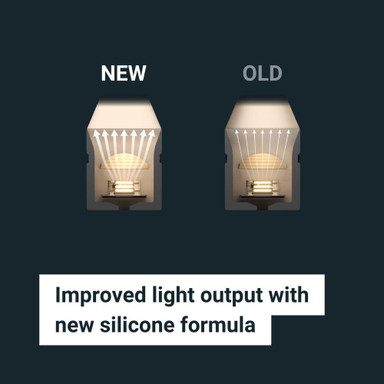

- Premium silicone with upgraded light transmission
- SDCM <3 for vibrant, consistent colour blending
- Flexible 50 mm cut points – for enhanced precision
- 5 metre run length (powered from one end)
- Customisable cable entry direction and length to suit project requirements
Installation Guidance
This product must be installed by a suitably competent person and in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to starting any work. For best results, use suitable mounting channels and brackets.
Required Products
- A compatible 24 V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Dimming Type | PWM |
| Rated Life (Hours) | 60000 |
| Current Max. Rated (A) | 0.33 |
| Max. Run Length (m) | 5 |
| Anti-Yellowing | Yes |
| Application Environment | Sauna, Steam rooms, Spa environments, Ice Room, Cold Therapy |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior or Exterior |
| Saltwater Resistant | Yes |
| Solvent Resistant | Yes |
| Storage Humidity Max. (°C) | 100 |

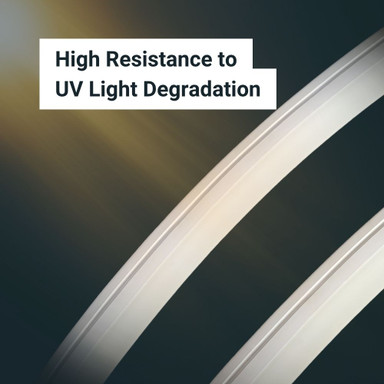

| UV Resistant | Yes |
| Working Humidity Max. (°C) | 100 |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Weight (AWG) | 20 |

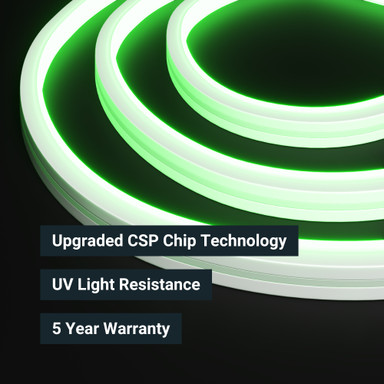

| Chip Type | COB |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 50 |
| Entry Cable Direction | Custom |
| LED Module Replaceable | false |
| LED Pitch (mm) | 8.33 |
| LEDs Per Metre (LEDs/m) | 360 |
| Min. Bend Radius (mm) | 60 |
| PCB Type | Flexible |
| Product Height (mm) | 12 |
| Width (mm) | 13 |
| Constant Voltage / Constant Current | CV |
| Beam Angle (°) | 113 |
| Total Lumens (Lm) | 158 |
| Lumens Per Metre (Lm/m) | 158 |
| Lumens Per Watt (Lm/W) | 22 |
| Wavelength Blue Max. (nm) | 462.5 |
| Wavelength Blue Min. (nm) | 455 |
| Wavelength Green Max. (nm) | 527.5 |
| Wavelength Green Min. (nm) | 520 |
| Wavelength Red Max. (nm) | 627.5 |
| Wavelength Red Min. (nm) | 620 |
| Electrical Safety Class | III |
| Operating Temperature Min. - Max. (°C) | -20℃ to 110℃ |
| Brand | Tagra |
| Family Name | Vertical 13 |
| Bend Direction | Vertical |
| Cable Sheath Material | Silicone |
