Tagra | Pro LED Strip Light | 160 LEDs p/m | 24V | IP67 | 15.8W | 5 & 50M Reels
PS24-160-67
From £58.50 Inc. VAT
Key Features

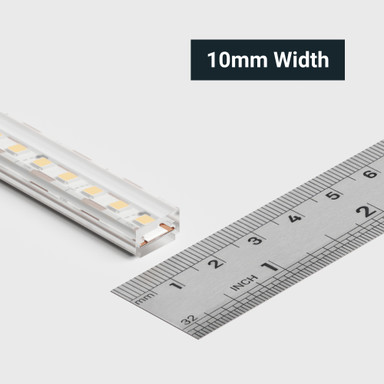

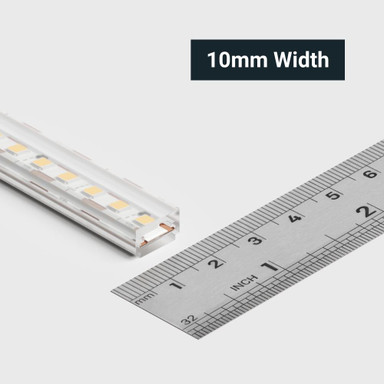

- Product Width: 10mm
- Lm/m (up to): 1786.4Lm/m
- Lm/W (up to): 124.06Lm/W
- CRI: 90+
- Lightsource SDCM: ≤2
- Run Length (Max): 5m
- Available Colours: 2700K - 6000K
- Warranty: 5 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £4.99
- Returns14 Day Policy
Product Overview
Specifications:
- Voltage: 24V
- Max. Power: 15.8W/m

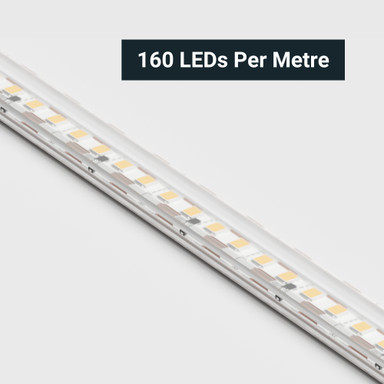

- LEDs per metre: 160 LEDs
- Cut Points: 12.5mm
- CRI: 90+
- Beam Angle: 120°
- SDCM: <2
- PCB Weight: 3oz
- Lumens: Up to 1786 lm/m
- Warranty: 5 Years
Information:
The Pro Series LED Strip Light is designed to deliver dependable, high-quality illumination across a wide range of professional applications. Engineered for medium to long-term installations, this series offers a cost-effective balance of performance and consistency, making it ideal for professional projects that prioritise reliability and value.

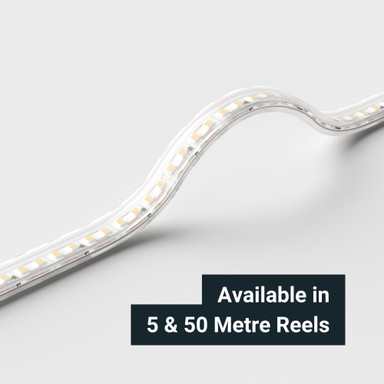

Available in colour temperatures 2700K, 3000K, 4000K & 6500K. Comes as a 5 metre or 50 metre reel as standard and can be cut to your required length using the cut points which are located at 12.5mm intervals. The strip can also be cut along the dotted lines in-between the cut points, but please note, these are not regular intervals due to the resistors.
Installation:

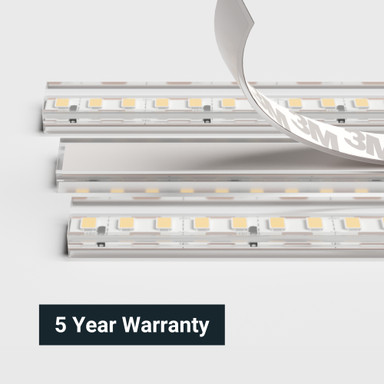

The LED strip light is suitable for indoor & outdoor installations with an IP67 rating. It includes a 3M adhesive backing, allowing easy mounting on smooth and clean surfaces.
We recommend installing the LED strip in an aluminium profile to provide protection and act as a heat sink, which will reduce overheating and prolong the product's lifespan.
Required Products:
The list of products below are required in order to operate this product:
- 24V LED Driver
Product Specification
| Warranty (Years) | 5 |
| Dimmable | Yes |
| Energy Efficiency Class | E |
| Rated Life (Hours) | 60000 |
| Switch Cycles | 10000 |
| Current Max. Rated (A) | 0.66 |
| Anti-Yellowing | No |
| Application Environment | Indoor,Outdoor |
| Body Material | Silicone |
| Ingress Protection (IP) | 67 |
| Interior or Exterior Use | Interior,Exterior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| Storage Humidity Max. (°C) | 70 |
| UV Resistant | No |
| Working Humidity Max. (°C) | 70 |
| Anti-Glare Shield | No |
| Colour-Tuneable Light Source | No |
| Lighting Technology Used | LED |
| Mains or Non-Mains | Non-mains |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Both Ends | Yes |
| Cable Length (mm) | 500 |
| Cable Weight (AWG) | 20 |
| Chip Type | SMD |
| Connector Type | None |

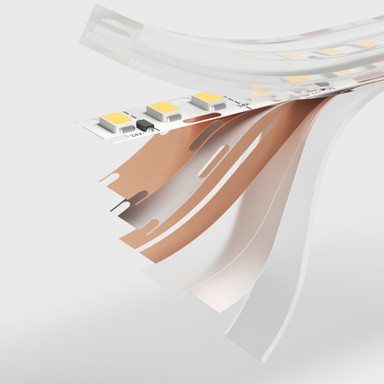

| Copper Foil Weight (oz) | 3 |

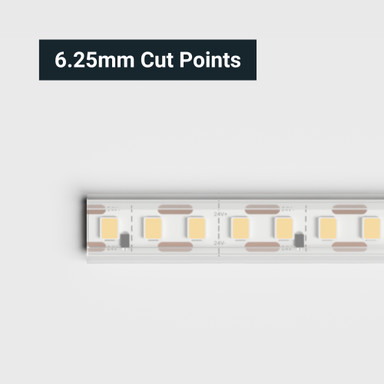

| Cut Points (mm) | 6.25 |
| LED Module Replaceable | false |
| LED Pitch (mm) | 6.25 |
| LEDs Per Metre (LEDs/m) | 160 |
| Min. Bend Radius (mm) | 30 |
| PCB Type | Flexible |
| Product Height (mm) | 5 |
| Product Weight (g) | 511 |
| Width (mm) | 10 |
| Constant Voltage / Constant Current | CV |
| Bin Number | One Bin |
| CRI | 90 |
| Total Lumens (Lm) | 8624 |
| SDCM | 2 |
| Electrical Safety Class | III |
| Self Adhesive (Brand & Model Number) | JL-4910F |
| Brand | Tagra |
| Certification | ECR - UK SI 2016 No 1091,EMC - 2014/30/EU |
| Bend Direction | Horizontal |
| Cable Sheath Material | Silicone |
