Tagra | Low Voltage LED Cable | 3 Core | PVC | Round | 22 AWG | 0.35mm²

Technical Specifications:

• Cores manufactured to ISO 6722-1:2011 (Class B) 105°C
• Plain Copper Conductors to BS EN 60228:2005 - PVC Insulated
• Single core suitable for use at temperatures from -40°C to 105°C with excursions up to 120°C
• Twins and multicores PVC sheathed at 70°C
• Suitable for 12v, 24v, 36 and 48V systems (Maximum voltage 60v)
• Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses
• High grade PVC insulation demonstrates excellent acid, oil, petrol and diesel resistance

Precision engineered 3 core cable manufactured specially here in the UK and designed for use with our CCT Tuneable strip lights as well other applications where a low voltage 3 core cable is required. All its strands and insulating sheath have been produced to highly accurate specifications.

This results in a cable that is much easier to strip and solder. The ease of installing connections coupled with the light weight, highly flexible bundling characteristics of low voltage cable deliver real world benefits and savings when it comes to time and money.

Our 3 core Pro Low Voltage Cable can handle a maximum of 7 Amps of current per core, which is outstanding for a lightweight 0.35mm gauge cable. These characteristics result an extremely versatile, durable and lightweight cabling solution.

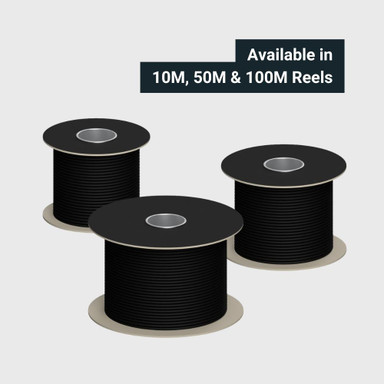

Lighter cable means it has a reduced size and is easier to manually handle and transport, making it easier to manipulate the cable when working with bundles/looms and feeding it through confined spaces and ducts. Sold in lengths of 10 metres, 50 metres and 100 metres.
