Tagra | Pro Low Voltage LED Cable | 6 Core | 7A | PVC | Round | 22AWG | 0.35mm²

Technical Specifications:

• Cores manufactured to ISO 6722-1:2011 (Class B)
• Bare Copper Conductors certified to BS EN 60228:2005
• Operating temperature from -40°C to 105°C with excursions up to 120°C
• Suitable for 12V, 24V, 36V and 48V systems (Maximum voltage 60V)
• Thin overall size makes this a super lightweight cable, perfect for use with strip light with small solder pads
• High grade PVC insulation demonstrates excellent acid, oil, petrol and diesel resistance

Precision engineered 6 core cable manufactured specially here in the UK and designed for use with our RGBCCT Colour Changing strip lights as well other applications where a low voltage 6 core cable is required. All its strands and insulating sheath have been produced to highly accurate specifications.

This results in a cable that is much easier to strip and solder. The ease of installing connections coupled with the light weight, highly flexible bundling characteristics of low voltage cable deliver real world benefits and savings when it comes to time and money.

Our 6 core Pro Low Voltage Cable can handle a maximum of 7 Amps of current per core, which is outstanding for a lightweight 0.35mm gauge cable. These characteristics result an extremely versatile, durable and lightweight cabling solution.

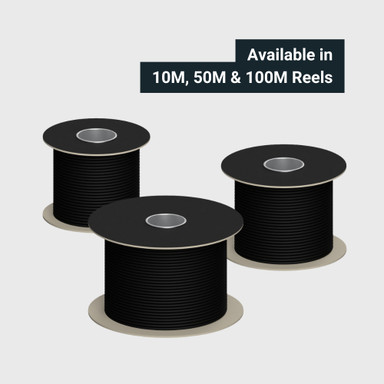

Lighter cable means it has a reduced size and is easier to manually handle and transport, making it easier to manipulate the cable when working with bundles/looms and feeding it through confined spaces and ducts. Sold in a minumum length of 10 metres with 50 metre and full 100 metre reel options available.
