Tagra | Pro Low Voltage LED Cable | 3 Core | 11A | PVC | Round | 20AWG | 0.5mm²
TC3C.5
From £17.02 Inc. VAT
Key Features
- Current (max rated): 11A
- Input cross-section of conductors for terminals: 0.5mm²
- Input voltage (Min/Max): 12V–60V

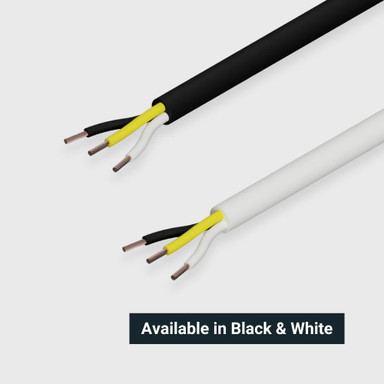

- Body colour: White; Black
- Cable shape: Round
- Cable sheath material: PVC
- Warranty: 3 Years
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Cores manufactured to ISO 6722-1:2011 (Class B) 105°C
- Plain Copper Conductors to BS EN 60228:2005 - PVC Insulated
- Single core suitable for use at temperatures from -40°C to 105°C with excursions up to 120°C
- Twins and multicores PVC sheathed at 70°C
- Suitable for 12v, 24v, 36 and 48V systems (Maximum voltage 60v)
- Reduced insulation gives considerable savings in weight and volume especially when used in large wiring harnesses
- High grade PVC insulation demonstrates excellent acid, oil, petrol and diesel resistance
Precision engineered 3 core cable manufactured specially here in the UK and designed for use with our CCT Tuneable strip lights as well other applications where a low voltage 3 core cable is required. All its strands and insulating sheath have been produced to highly accurate specifications.
This results in a cable that is much easier to strip and solder. The ease of installing connections coupled with the light weight, highly flexible bundling characteristics of low voltage cable deliver real world benefits and savings when it comes to time and money.
Our 3 core Pro Low Voltage Cable can handle a maximum of 11 Amps of current per core, which is outstanding for a lightweight 0.5mm gauge cable. These characteristics result an extremely versatile, durable and lightweight cabling solution.
Lighter cable means it has a reduced size and is easier to manually handle and transport, making it easier to manipulate the cable when working with bundles/looms and feeding it through confined spaces and ducts. Sold in a minumum length of 10 metres with 50 metre and full 100 metre reel options available.
Videos
Product Specification
Application Environment | Indoor |
Body Material | PVC |
Ingress Protection (IP) | 20 |
Interior or Exterior Use | Interior |
Input Current Max. (A) | 11 |
Input Current Type (A) | DC |
Input Voltage Min. - Max (V) | 12-60V |
Connector Type | Tinned |

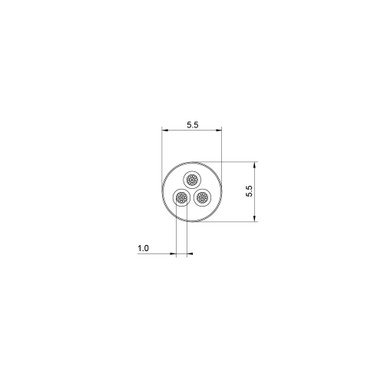

Diameter (mm) | 5.1 |
Output Voltage Min. - Max. (V) | 60-12V |
Items/Sets Per Pack | 1 |
Operating Temperature Min. - Max. (°C) | -40℃ to 105℃ |
Brand | Tagra |
Cable Shape | Round |
Warranty (Years) | 3 |
Width (mm) | 5 |
Family Name | Tagra Pro |
Cable Weight (AWG) | 20 |
Cable Sheath Material | PVC |
Current Max. Rated (A) | 11 |
Input Cross-Section of Conductors for Terminals (mm²) | 0.5 |
Technical Documents
Customer Reviews

Sorry, no reviews found
