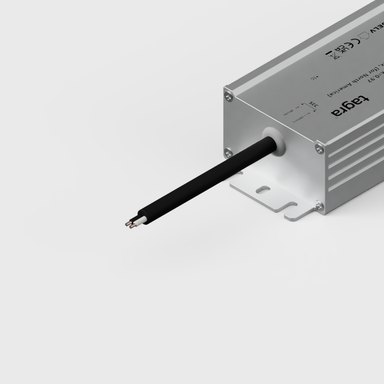

Tagra | 12V | 100W | Constant Voltage | Non-Dimmable LED Driver | IP67
TAG12V100WIP67B
£30.60
£21.42 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage (Min/Max): 200 – 240 V
- Output Voltage: 12 V
- Max Output Current Per Channel: 8.33 A
- IP Rating: 67
- Body Material: Metal
- Product Dimensions (mm): L173xW63xH38
- Bulk pricing: up to 20% off
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Output Voltage: 12V DC
- Output Current: 8.33A
- Rated Power: 100W
- Efficiency: 92%
- Power Factor: 0.97
- Dimmable: No
- Water Resistance: IP67
- Dimensions (mm): 172.6L x 62.5W x 38H
- Warranty: 5 Years
Information:
Introducing our Professional range of IP67 LED Power Supplies. This product is designed for demanding installations and is manufactured from high quality materials and components to produce a reliable and efficient LED Driver. Featuring built-in protection and protective terminal covers, it's the prefect solution for any installation. Comes with pre-attached cables on the input and output side.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP67 making it suitable for damp environments. Designed to be connected to a mains power supply (220-240V AC). Can be mounted to a surface using the fixing points located on the product casing. We recommend this product be installed by a qualified electrician.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Warranty (Years) | 5 |
| Body Material | Metal |
| Ingress Protection (IP) | 67 |
| Input Current Type (A) | AC |
| Input Voltage Min. - Max (V) | 200-240V |
| Body Colour | Silver |
| Product Height (mm) | 38 |
| Depth (mm) | 212 |
| Product Weight (g) | 554 |
| Width (mm) | 63 |
| Output Current Max. (A) | 8.33 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 12-12V |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Dimensions LxWxH (mm) | 173x63x38 |
| Brand | Tagra |
| Family Name | Tagra Non Dim 12V IP67 |
| Certification | EMC - 2014/30/EU |
| Wattage (W) | 100 |
| Power Factor (A) | 0.7 |
| Load Min. (W) | 0 |
| Operating Temperature Min. - Max. (°C) | -40℃ to 60℃ |
| Dimmable | No |
| Dimming Type | Non-Dimmable |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 8.33 |
