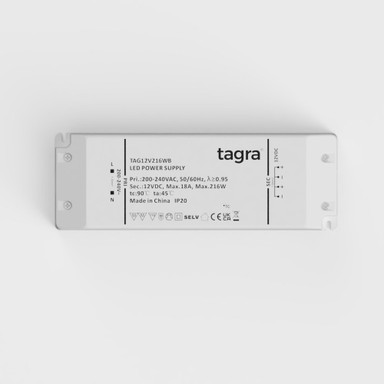

Tagra | 12V | 216W | Constant Voltage | Non-Dimmable LED Driver | IP20
TAG12V216WB
£51.30 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage: 200V-240V
- Output Voltage: 12V
- Max Amps per Channel: 18A
- IP Rating: 20
- Body Material: Plastic
- Product Dimensions (mm): L195xW67xH31
- Warranty: 5 Years
Quantity | Price |
---|---|
4 - 14 | £47.70 (save £3.60) |
15 + | £41.04 (save £10.26) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Output Voltage: 12V DC
- Output Current: 18A
- Rated Power: 216W
- Efficiency: 91.5%
- Power Factor: 0.95
- Dimmable: No
- Water Resistance: IP20
- Dimensions (mm): 195L x 67.1W x 31.2H
- Warranty: 5 Years
Information:
Introducing our Professional range of LED Power Supplies. This product is designed for demanding installations and is manufactured from high quality materials and components to produce a reliable and efficient LED Driver. Featuring built-in protection and protective terminal covers, it's the prefect solution for any installation.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply (220-240V AC). Can be mounted to a surface using the fixing points located on the product casing. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 220-240V AC Mains Power Supply
- 12V LED Strip Light
- 12V Compatible LED Controller
Product Specification
Warranty (Years) | 5 |
Body Material | Plastic |
Ingress Protection (IP) | 20 |
Input Current Type (A) | AC |
Input Voltage Min. - Max (V) | 200-240V |
Body Colour | White |
Product Height (mm) | 31 |
Depth (mm) | 195 |
Product Weight (g) | 464 |
Width (mm) | 67 |
Output Current Max. (A) | 18 |
Output Current Type | DC |
Output Terminal / Connector Type | Screw terminal |
Output Voltage Min. - Max. (V) | 12-12V |
Over Current Protection | Yes |
Over Temperature Protection | Yes |
Over Voltage Protection | Yes |
Short Circuit Protection | Yes |
Dimensions LxWxH (mm) | 195x67x31 |
Brand | Tagra |
Family Name | Tagra Non Dim 12V IP20 |
Certification | EMC - 2014/30/EU |
Wattage (W) | 216 |
Power Factor (A) | 0.95 |
Load Min. (W) | 0 |
Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
Dimmable | No |
Dimming Type | Non-Dimmable |
Constant Voltage / Constant Current | CV |
Max. Output Current Per Channel (A) | 18 |
