Products Tested In-House

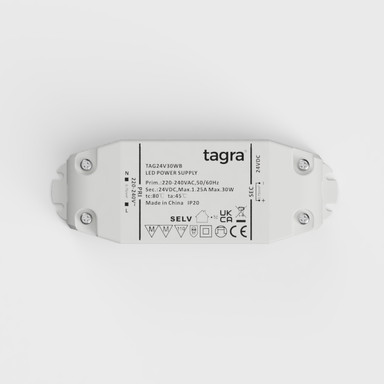

Tagra | 24V | 30W | Constant Voltage | Non-Dimmable LED Driver | IP20
TAG24V30WB
£14.70 Inc. VAT
Key Features
- Dimming Type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input Voltage: 200V-240V
- Output Voltage: 24V
- Max Amps per Channel: 1.25A
- IP Rating: 20
- Body Material: Plastic
- Product Dimensions (mm): L123xW45xH19
- Warranty: 5 Years
| Quantity | Price |
|---|---|
| 4 - 14 | £13.68 (save £1.02) |
| 15 + | £11.76 (save £2.94) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Output Voltage: 24V DC
- Output Current: 1.25A
- Rated Power: 30W
- Efficiency: 86.5%
- Power Factor: 0.95
- Dimmable: No
- Water Resistance: IP20
- Dimensions (mm): 123L x 44.6W x 19.2H
- Warranty: 5 Years
Information:
Introducing our Professional range of LED Power Supplies. This product is designed for demanding installations and is manufactured from high quality materials and components to produce a reliable and efficient LED Driver. Featuring built-in protection and protective terminal covers, it's the prefect solution for any installation.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply (220-240V AC). Can be mounted to a surface using the fixing points located on the product casing. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 220-240V AC Mains Power Supply
- 24V LED Strip Light
- 24V Compatible LED Controller
Product Specification
| Output | - |
| Output Voltage | 24V |
| Output Current | Up to 1.25 |
| Rated Power | Up to 30 Watts |
| Dimming Mode | Non Dimmable |
| Input | - |
| Input Voltage Range | AC200-240V |
| Input Frequency | 50/60Hz |
| Power Factor | > 0.95 |
| Inrush Current | < 30A |
| Environment | - |
| Ingress Protection | IP20 |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Protection | - |
| Overload Protection | - |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Guarantee | 5 Years |
| Warranty (Years) | 5 |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Input Current Type (A) | AC |
| Input Voltage Min. - Max (V) | 200-240V |
| Body Colour | White |
| Product Height (mm) | 19 |
| Depth (mm) | 123 |
| Product Weight (g) | 88 |
| Width (mm) | 45 |
| Output Terminal / Connector Type | Screw terminal |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Dimensions LxWxH (mm) | 123x45x19 |
| Brand | Tagra |
| Family Name | Tagra Non Dim 24V IP20 |
| Certification | EMC - 2014/30/EU |
| Wattage (W) | 30 |
| Mounting Type | Surface Mounted |
| Power Factor (A) | 0.95 |
| Load Min. (W) | 0 |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimmable | No |
| Dimming Type | Non-Dimmable |
| Constant Voltage / Constant Current | CV |
| Output Voltage Min. - Max. (V) | 24-24V |
| Max. Output Current Per Channel (A) | 1.25 |
Technical Documents
