Products Tested In-House

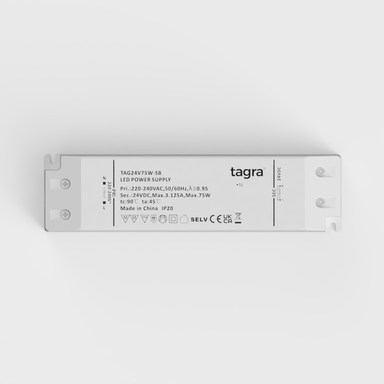

Tagra | 24V | 75W | Constant Voltage | Non-Dimmable LED Driver | IP20
TAG24V75W-SB
£23.40 Inc. VAT
Key Features
- Dimming type: Non-Dimmable
- CV / CC: Constant Voltage (CV)
- Input voltage: 200V – 240V
- Output voltage: 24V
- Max Amps per Channel: 3.125 A
- IP Rating: 20
- Body material: Plastic
- Product Dimensions (mm): L170xW45xH28
- Warranty: 5 Years
| Quantity | Price |
|---|---|
| 4 - 14 | £21.78 (save £1.62) |
| 15 + | £18.72 (save £4.68) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 24v Constant Voltage
- 75w Power Output
- 3.13 Amp Max
- Professional Terminal Ends
- ROHS & CE Approved
- Short Circuit Protection
- Over Voltage Protection
- 3 year warranty
- Dimensions (L x W x H): 170mm x 44.5mm x 28.2mm
Introducing our premium range of power supplies for LED Strip lights - Tagra is a professional brand which provides high end LED equipment.
The Tagra 75W 3.13A 24v Power supply is designed for high end demanding installations. A Highly reliable product designed to give long term performance in high end, demanding installations. This product comes with a 3 year warranty as standard for your peace of mind. Fully EMC and LVD approved and has an exceptional reliability record, down to its high quality internal components that give it a power factor of 0.9 and an overall efficiency of up to 90%. This product is rated IP20 so please ensure that it is installed indoors and away from moisture and liquids.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Output | - |
| Output Voltage | 24V |
| Output Current | Up to 3.125 |
| Rated Power | Up to 75 Watts |
| Dimming Mode | Non Dimmable |
| Input | - |
| Input Voltage Range | AC 220-240V |
| Input Frequency | 50/60Hz |
| Power Factor | > 0.9 |
| Inrush Current | < 40A |
| Environment | - |
| Ingress Protection | IP20 |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Protection | - |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Electrical Safety Class | II |
| Guarantee | 5 Years |
| Warranty (Years) | 5 |
| Dimmable | No |
| Power Factor (A) | 0.9 |
| Application Environment | Outdoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Exterior |
| Input Current Type (A) | DC |
| Input Frequency Min. - Max. (Hz) | 50-60Hz |
| Input Voltage Min. - Max (V) | 200-240V |
| Body Colour | White |
| Product Height (mm) | 28 |
| Depth (mm) | 175 |
| Product Weight (g) | 160 |
| Width (mm) | 45 |
| Constant Voltage / Constant Current | CV |
| Max. Output Current Per Channel (A) | 3.125 |
| Output Terminal / Connector Type | Screw terminal |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 170x45x28 |
| Brand | Tagra |
| Family Name | Tagra Non Dim 24V IP20 |
| Certification | EMC - 2014/30/EU |
| Wattage (W) | 75 |
| Mounting Type | Surface Mounted |
| Load Min. (W) | 0 |
| Dimming Type | Non-Dimmable |
| Output Voltage Min. - Max. (V) | 24-24V |
