Tagra | 24V | 100W | Constant Voltage | TRIAC Dimmable LED Driver | IP20
TAGTRIAC24V100W
£72.00 Inc. VAT
Key Features
- Dimming Type: TRIAC
- Dimming Range: 20% - 90%
- CV / CC: Constant Voltage (CV)
- Input Voltage: 220V - 240V
- Output Voltage: 24V
- Max Amps per Channel: 4.17A
- IP Rating: 20
- Body Material: Plastic

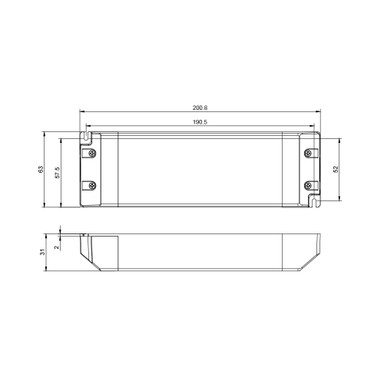

- Product Dimensions (mm): L201xW63xH31
- Warranty: 5 Years
| Quantity | Price |
|---|---|
| 4 - 14 | £66.96 (save £5.04) |
| 15 + | £57.60 (save £14.40) |
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- Easy terminal access
- Rated 100w - 4.17Amp Max
- Dimensions (L x W x H): 200mm x 63mm x 30mm
- Compatible with both leading edge and trailing edge led dimmers
- 3 Year Warranty
Our new quiet dimmable triac drivers. Ideal for dimming using trailing edge and leading edge dimming. We suggest VARILIGHT's range of V-COM dimmers for the best results. Suitable for dimming 24v Lighting from 0 - 100w.
Tagra dimmable power supplies are designed to power and dim 24v constant voltage LEDs via mains dimming. Pairing this power supply with a trailing edge or leading edge dimmer will grant the user full control over light levels in homes, offices or retail environments. Tidy clean and simple Triac Dimming. We suggest loading the power supply as close to its maximum capacity for the most effective dimming.
Note: This driver is intended to dim mains voltage single colour LED lights. If you are using a controller then you will not require a dimmable driver as the controller handles the low voltage dimming.
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Output | - |
| Output Voltage | 24V |
| Output Current | Up to 4.16 |
| Rated Power | Up to 100 Watts |
| Dimming Mode | TRIAC CV |
| Input | - |
| Input Voltage Range | AC220-240V |
| Input Frequency | 50Hz |
| Power Factor | > 0.9 |
| Inrush Current | < 75A |
| Environment | - |
| Ingress Protection | IP20 |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Protection | - |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Electrical Safety Class | II |
| Guarantee | 3 Years |
| Control Signal - Input | TRIAC |
| Dimmable | Yes |
| Dimming Type | TRIAC |
| Power Factor (A) | 0.9 |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | AC |
| Input Frequency Min. - Max. (Hz) | 50-50Hz |
| Input Voltage Min. - Max (V) | 220-240V |
| Body Colour | White |
| Product Height (mm) | 31 |
| Depth (mm) | 201 |
| Product Weight (g) | 493 |
| Width (mm) | 63 |
| Constant Voltage / Constant Current | CV |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Dimming Range Min. - Max (%) | 20-90% |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 201x63x31 |
| Brand | Tagra |
| Family Name | Tagra Triac 24V |
| Wattage (W) | 100 |
| Warranty (Years) | 5 |
| Mounting Type | Surface Mounted |
| Load Min. (W) | 0 |
| Output Voltage Min. - Max. (V) | 24-24V |
| Max. Output Current Per Channel (A) | 4.17 |
