Tagra | Quick Connect Horizontal 10 | LED Neon Mounting Brackets | 5cm

Specifications:

• Mounting Bracket Options: End Cap Bracket, Body Bracket
• Material: Aluminium
• Colour: Silver
• Mounting Type: Surface Mounted
• Length: 50mm

Introduction:

Our Quick Connect Horizontal 10 Neon Mounting Brackets and made from aluminium and specifically designed to fit the Quick Connect Horizontal 10 LED Neon Flex. They are crafted from durable aluminium and provide a secure mounting solution. The brackets are lightweight yet strong, ensuring stability while maintaining the sleek appearance of the installation.

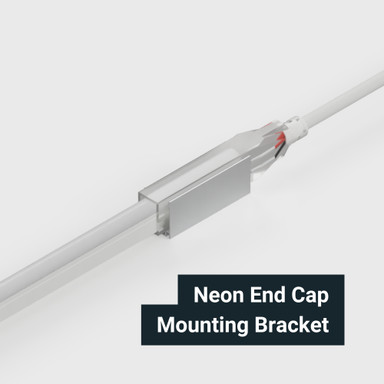

NEONMINI1015-ECTRACK-5CM (Packs of 10)

These end cap mounting brackets are specifically engineered to hold the ends of the Quick Connect Horizontal 10 firmly in place. They are particularly important for vertical installations and in long runs where end-point stability is critical. By securing the strip at its termination point, they prevent movement, disconnection, and strain on the connectors, helping to maintain both performance and alignment over the lifetime of the installation.

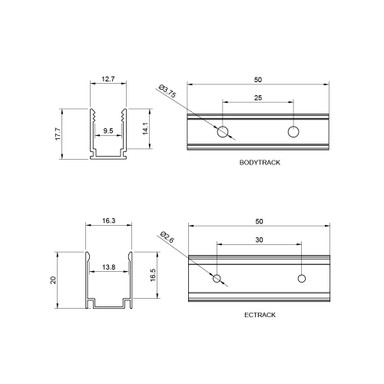

Product dimensions (H20 x W16 x L50mm)

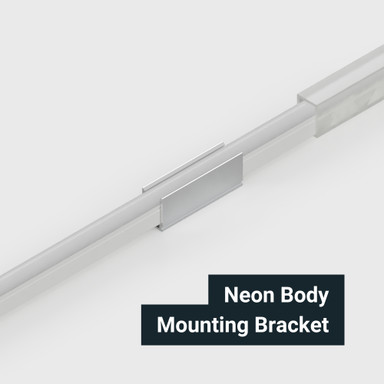

NEONMINI1015-BODYTRACK-5CM (Packs of 1 or 20)

These body mounting brackets are designed to secure the Quick Connect Horizontal 10 along their length, ensuring a stable, professional finish. Installed at regular intervals, they support, maintain shape and alignment in straight or curved layouts, and help prevent sagging over time. They’re ideal for curves, long runs, and where durability and neat presentation are key.

Use 2x Body Tracks per 1000mm of Quick Connect Horizontal 10

Product dimensions (H18 x W13 x L50mm)

Installation:

Ensure the area is clean, dry, and free of any debris before installation. Position the correct bracket along the desired mounting area and mark the screw holes. Secure the bracket in place using the included screws. Gently fit the LED Neon Flex strip into the bracket, ensuring a snug fit. These brackets are easy to install and provide a reliable, long-lasting mounting solution. For NEONMINI1015-BODYTRACK-5CM, use 2x brackets per 1000mm of LED neon flex.

Compatible Products:

The list of products below are compatible with this product:

• Quick Connect Horizontal 10 LED Neon Flex
