Tagra | Quick Connect LED Neon Flex | Vertical Circ 18 | 18x18mm | RGB | 24V | IP65 | 18Wp/m | 10M Kit
NEONCIRC18-10MKIT-RGB
£274.80 Inc. VAT
Key Features
- Key Spec Features: Quick Connect Solderless System, Seamless Long Runs, Designed for Short-Term Installations.

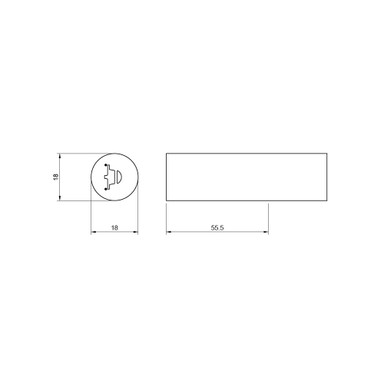

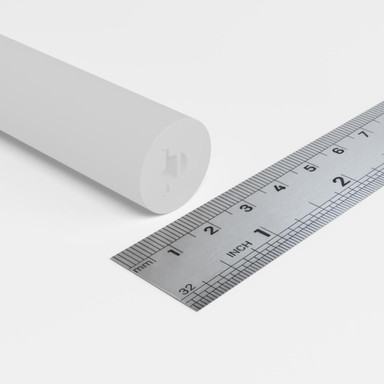

- Dimensions: W18mm x H18mm
- Bend Direction: Vertical
- LM/M: Up to 440
- LM/W: Up to 24

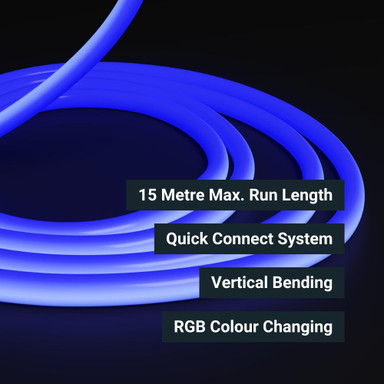

- Max Run Length: 15m
- Kit Contents: 10m reel & Power Cord & End Cap Kit
- Available Colours: RGB
- Warranty: 1 Year Indoor / 6 Months Outdoor
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications
- Application: Short-Term Events / Immersive Experiences / Temporary Installations
- Bend Direction: Vertical
- Voltage: 24V DC
- Power Consumption: 18W/m
- IP Rating: IP65
- Cut Points: 55.5mm
- Max Run Length: 15m
- Also available in 50M Bulk Reel
- Available Colours: RGB
- Warranty: 1 Year Indoor / 6 Months Outdoor
Tagra Quick Connect LED Neon Flex – RGB Vertical 18

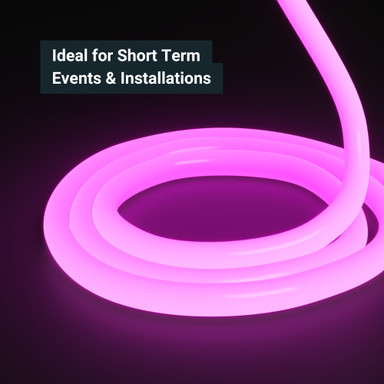

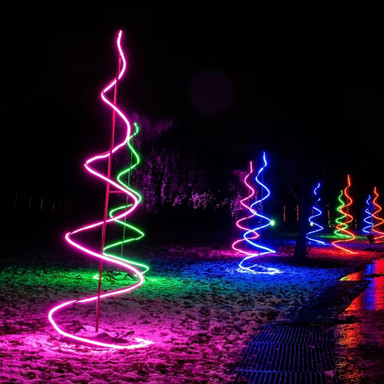

Designed for short-term applications where convenience and flexibility matter most, our next generation of Quick Connect Neon Flex is perfect for exhibitions, pop-up events, light trails, short-term retail installations, and immersive displays. Each 10m kit allows for a continuous, seamless run of uninterrupted illumination and includes a power cord and end cap kit, with the next-generation design offering enhanced stability and durability to give you extra support in your temporary lighting projects. If shorter lengths are required, the quick-connect system provides complete flexibility—easily cut down and reconnected to suit your exact needs. Enjoy bright, even illumination in a choice of colours, plus a solderless quick-connect system for quick, hassle-free setup and removal.
Key Features

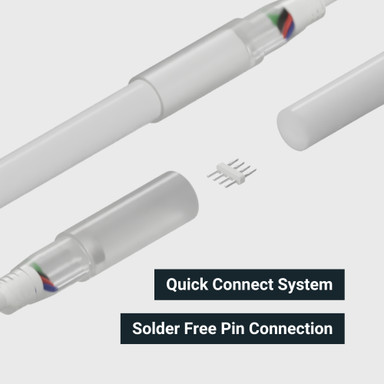

- Quick Connect solderless system for quick installation
- Continous illumination with no breaks or extra power feeds
- Verical bend with 320° beam angle
Kit Contents
- 10m reel
- Power cord and end cap kit -
- 2M Power Cord
- 4 x Connector Pins (inc. Spares for added convenience)
- End Cap
- 2 x Heat Shrink Tubes
- 10ml Silicone Glue
- User Manual
Installation Guidance
Vertical 18 has a ±1mm tolerance. Customers should measure precisely before routing out the groove for fitting the neon flex to ensure a perfect installation.
This product must be installed by a suitably competent person in accordance with the IEE Wiring Regulations and Building Regulations. Always consult the installation manual prior to commencing work. For best results, use appropriate mounting channels and accessories.
Required Products
- A compatible 24V LED Driver
- Mounting Accessories (Aluminium Channel or Mounting Clips)
- Additional accessory packs (required for 50m reels and 10m kits with more than one run)
Product Specification
| Warranty (Years) | 0.5 |
| Dimmable | Yes |
| Rated Life (Hours) | 36000 |
| Current Max. Rated (A) | 5.25 |
| Max. Run Length (m) | 15 |
| Body Material | PVC |
| Ingress Protection (IP) | 65 |
| Interior or Exterior Use | Interior or Exterior |
| Saltwater Resistant | No |
| Solvent Resistant | No |
| UV Resistant | Yes |
| Input Voltage Min. - Max (V) | 24-24V |
| Body Colour | White |
| Cable Length (mm) | 2000 |
| Cable Weight (AWG) | 17 |
| Chip Type | SMD5050 |
| Connector Type | Pin connector |
| Copper Foil Weight (oz) | 3 |
| Cut Points (mm) | 55.5 |
| Entry Cable Direction | Rear |
| LEDs Per Metre (LEDs/m) | 108 |
| Min. Bend Radius (mm) | 60 |
| PCB Type | Flexible |
| Product Height (mm) | 18 |
| Product Weight (g) | 3800 |
| Width (mm) | 18 |
| Constant Voltage / Constant Current | CV |
| End Caps Included | Yes |
| Power Cord Included | Yes |
| Beam Angle (°) | 320 |
| CRI | 80 |
| Total Lumens (Lm) | 4400 |
| Lumens Per Metre (Lm/m) | 440 |
| Lumens Per Watt (Lm/W) | 24 |
| SDCM | 3 |
| Wavelength Blue Max. (nm) | 475 |
| Wavelength Blue Min. (nm) | 465 |
| Wavelength Green Max. (nm) | 530 |
| Wavelength Green Min. (nm) | 520 |
| Wavelength Red Max. (nm) | 630 |
| Wavelength Red Min. (nm) | 620 |
| Electrical Safety Class | II |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Dimensions LxWxH (mm) | 10000x18x18 |
| Brand | Tagra |
| Family Name | Quick Connect Series |
| Bend Direction | Vertical |
| Cable Sheath Material | PVC |
